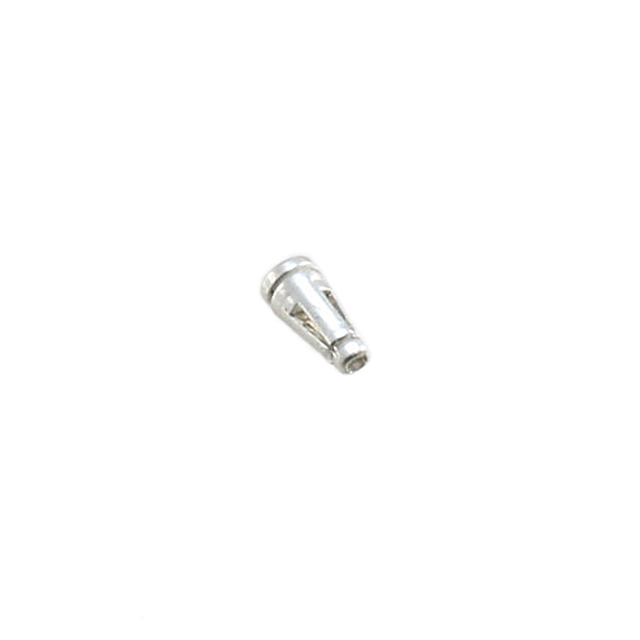

6-1437514-2
ActiveTE Connectivity Raychem Cable Protection
CONN PIN RCPT .016-.021 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6-1437514-2
ActiveTE Connectivity Raychem Cable Protection
CONN PIN RCPT .016-.021 SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6-1437514-2 |
|---|---|
| Accepts Pin Diameter [Max] [diameter] | 0.53 mm |
| Accepts Pin Diameter [Max] [diameter] | 0.021 in |
| Accepts Pin Diameter [Min] [diameter] | 0.016 in |
| Accepts Pin Diameter [Min] [diameter] | 0.41 mm |
| Accepts Square Pin Size [x] | 0.28 mm |
| Accepts Square Pin Size [x] | 0.011 in |
| Accepts Square Pin Size [y] | 0.018 in |
| Accepts Square Pin Size [y] | 0.46 mm |
| Board Thickness | 0.76 mm |
| Board Thickness | 0.03 in |
| Contact Finish | Tin |
| Contact Finish Thickness | 180 µin |
| Contact Finish Thickness | 4.57 µm |
| Contact Material | Beryllium Copper |
| Length - Overall [x] | 2.39 mm |
| Length - Overall [x] | 0.094 in |
| Mounting Hole Diameter [diameter] | 1.09 mm |
| Mounting Hole Diameter [diameter] | 0.043 in |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.74 mm |
| Pin Hole Diameter [diameter] | 0.029 in |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1437514 Series
Pin Receptacle Connector 0.016" ~ 0.021" (0.41mm ~ 0.53mm) No Tail Solder
