AA3021LSESK/J4-TR

Active

Kingbright

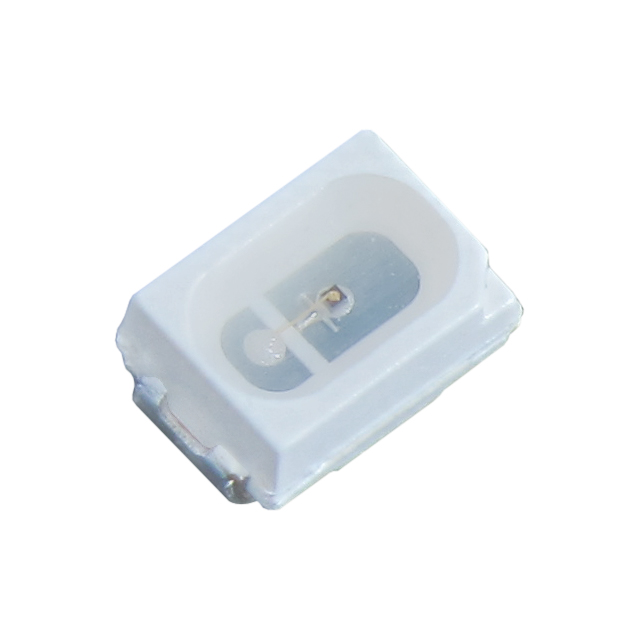

LED ORANGE CLEAR 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AA3021LSESK/J4-TR

Active

Kingbright

LED ORANGE CLEAR 2SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AA3021 Series

Orange 605nm LED Indication - Discrete 1.8V 2-SMD, J-Lead

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AA3021LSESK/J4-TR	AA3021 Series

Color	-	Green, Blue, Red, Cyan, Yellow
Configuration	Independent	Standard, Independent
Current - Test	2 mA	2 - 20 mA
Height (Max) [Max]	1.5 mm	1.5 mm
Lens Color	Colorless	Colorless
Lens Size [x]	2.5 mm	2.5 mm
Lens Size [y]	1.5 mm	1.5 mm
Lens Style	Oval with Flat Top	Oval with Flat Top
Lens Transparency	Clear	Clear
Millicandela Rating	200 mcd	15 - 1600 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	2-SMD, J-Lead	2-SMD, J-Lead
Size / Dimension [x]	2.7 mm	2.7 mm
Size / Dimension [y]	2 mm	2 mm
Supplier Device Package	2-SMD	SMD, 2-SMD
Viewing Angle	125 °	120 - 125 °
Voltage - Forward (Vf) (Typ)	1.8 V	1.8 - 3.3 V
Wavelength - Dominant	605 nm	465 - 630 nm
Wavelength - Peak	611 nm	460 - 645 nm
Wavelength - Peak	-	640 nm

AA3021 Series

LED GREEN CLEAR SMD

Part	Supplier Device Package	Millicandela Rating	Viewing Angle	Color	Lens Color	Mounting Type	Height (Max) [Max]	Lens Style	Package / Case	Current - Test	Lens Transparency	Configuration	Wavelength - Dominant	Size / Dimension [y]	Size / Dimension [x]	Lens Size [x]	Lens Size [y]	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Wavelength - Peak [custom]
Kingbright AA3021CGSK	SMD	80 mcd	125 °	Green	Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	20 mA	Clear	Standard	570 nm	2 mm	2.7 mm	2.5 mm	1.5 mm	2.1 V
Kingbright AA3021QBS/D	SMD	120 mcd	125 °	Blue	Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	20 mA	Clear	Standard	465 nm	2 mm	2.7 mm	2.5 mm	1.5 mm	3.3 V	460 nm
Kingbright AA3021QBCT/D	SMD	150 mcd	125 °	Blue	Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	20 mA	Clear	Standard	470 nm	2 mm	2.7 mm	2.5 mm	1.5 mm	3.3 V	468 nm
Kingbright AA3021ES	SMD	18 mcd	125 °	Red	Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	20 mA	Clear	Standard	617 nm	2 mm	2.7 mm	2.5 mm	1.5 mm	2 V	627 nm
Kingbright AA3021VRCBS/A	SMD	1600 mcd	120 °	Cyan	Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	20 mA	Clear	Standard		2 mm	2.7 mm	2.5 mm	1.5 mm	3.3 V
Kingbright AA3021SGS	SMD	20 mcd	125 °	Green	Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	20 mA	Clear	Standard	568 nm	2 mm	2.7 mm	2.5 mm	1.5 mm	2.2 V	565 nm
Kingbright AA3021ZGSK	SMD	700 mcd	125 °	Green	Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	20 mA	Clear	Standard	525 nm	2 mm	2.7 mm	2.5 mm	1.5 mm	3.3 V	515 nm
Kingbright AA3021LSESK/J4-TR	2-SMD	200 mcd	125 °		Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	2 mA	Clear	Independent	605 nm	2 mm	2.7 mm	2.5 mm	1.5 mm	1.8 V	611 nm
Kingbright AA3021LSESK/J3-TR	2-SMD	150 mcd	125 °	Red	Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	2 mA	Clear	Independent	625 nm	2 mm	2.7 mm	2.5 mm	1.5 mm	1.8 V		640 nm
Kingbright AA3021SESK/J3-TR	SMD	450 mcd	125 °	Red	Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	20 mA	Clear	Standard	625 nm	2 mm	2.7 mm	2.5 mm	1.5 mm	2.2 V		640 nm
