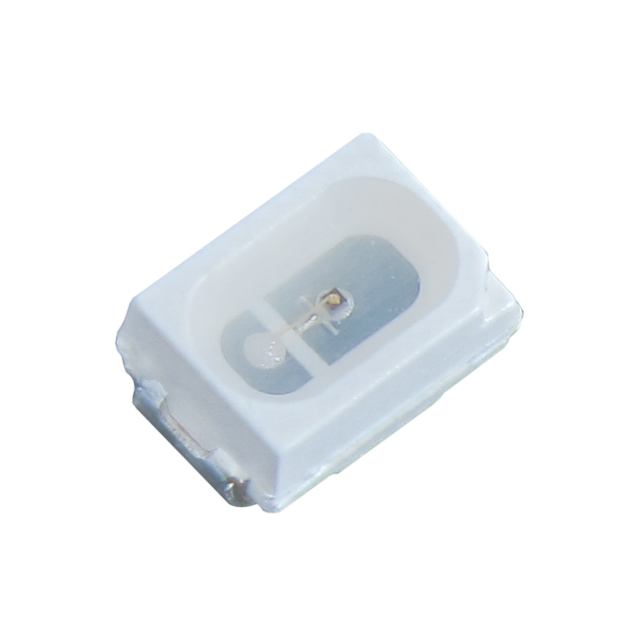

AA3021LSESK/J3-TR

Active

Kingbright

LED RED CLEAR 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AA3021LSESK/J3-TR

Active

Kingbright

LED RED CLEAR 2SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AA3021LSESK/J3-TR	AA3021 Series

Color	Red	Green, Blue, Red, Cyan, Yellow
Configuration	Independent	Standard, Independent
Current - Test	2 mA	2 - 20 mA
Height (Max) [Max]	1.5 mm	1.5 mm
Lens Color	Colorless	Colorless
Lens Size [x]	2.5 mm	2.5 mm
Lens Size [y]	1.5 mm	1.5 mm
Lens Style	Oval with Flat Top	Oval with Flat Top
Lens Transparency	Clear	Clear
Millicandela Rating	150 mcd	15 - 1600 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	2-SMD, J-Lead	2-SMD, J-Lead
Size / Dimension [x]	2.7 mm	2.7 mm
Size / Dimension [y]	2 mm	2 mm
Supplier Device Package	2-SMD	SMD, 2-SMD
Viewing Angle	125 °	120 - 125 °
Voltage - Forward (Vf) (Typ)	1.8 V	1.8 - 3.3 V
Wavelength - Dominant	625 nm	465 - 630 nm
Wavelength - Peak	-	460 - 645 nm
Wavelength - Peak [custom]	640 nm	640 nm

AA3021 Series

LED GREEN CLEAR SMD

Part	Supplier Device Package	Millicandela Rating	Viewing Angle	Color	Lens Color	Mounting Type	Height (Max) [Max]	Lens Style	Package / Case	Current - Test	Lens Transparency	Configuration	Wavelength - Dominant	Size / Dimension [y]	Size / Dimension [x]	Lens Size [x]	Lens Size [y]	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Wavelength - Peak [custom]
Kingbright AA3021CGSK	SMD	80 mcd	125 °	Green	Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	20 mA	Clear	Standard	570 nm	2 mm	2.7 mm	2.5 mm	1.5 mm	2.1 V
Kingbright AA3021QBS/D	SMD	120 mcd	125 °	Blue	Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	20 mA	Clear	Standard	465 nm	2 mm	2.7 mm	2.5 mm	1.5 mm	3.3 V	460 nm
Kingbright AA3021QBCT/D	SMD	150 mcd	125 °	Blue	Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	20 mA	Clear	Standard	470 nm	2 mm	2.7 mm	2.5 mm	1.5 mm	3.3 V	468 nm
Kingbright AA3021ES	SMD	18 mcd	125 °	Red	Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	20 mA	Clear	Standard	617 nm	2 mm	2.7 mm	2.5 mm	1.5 mm	2 V	627 nm
Kingbright AA3021VRCBS/A	SMD	1600 mcd	120 °	Cyan	Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	20 mA	Clear	Standard		2 mm	2.7 mm	2.5 mm	1.5 mm	3.3 V
Kingbright AA3021SGS	SMD	20 mcd	125 °	Green	Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	20 mA	Clear	Standard	568 nm	2 mm	2.7 mm	2.5 mm	1.5 mm	2.2 V	565 nm
Kingbright AA3021ZGSK	SMD	700 mcd	125 °	Green	Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	20 mA	Clear	Standard	525 nm	2 mm	2.7 mm	2.5 mm	1.5 mm	3.3 V	515 nm
Kingbright AA3021LSESK/J4-TR	2-SMD	200 mcd	125 °		Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	2 mA	Clear	Independent	605 nm	2 mm	2.7 mm	2.5 mm	1.5 mm	1.8 V	611 nm
Kingbright AA3021LSESK/J3-TR	2-SMD	150 mcd	125 °	Red	Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	2 mA	Clear	Independent	625 nm	2 mm	2.7 mm	2.5 mm	1.5 mm	1.8 V		640 nm
Kingbright AA3021SESK/J3-TR	SMD	450 mcd	125 °	Red	Colorless	Surface Mount	1.5 mm	Oval with Flat Top	2-SMD, J-Lead	20 mA	Clear	Standard	625 nm	2 mm	2.7 mm	2.5 mm	1.5 mm	2.2 V		640 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.55
		10	$ 0.36
		100	$ 0.24
		1000	$ 0.18
	Digi-Reel®	1	$ 0.55
		10	$ 0.36
		100	$ 0.24
		1000	$ 0.18
	Tape & Reel (TR)	2000	$ 0.17
		6000	$ 0.16
		10000	$ 0.15
		50000	$ 0.14

Description

General part information

AA3021 Series

Red 625nm LED Indication - Discrete 1.8V 2-SMD, J-Lead
