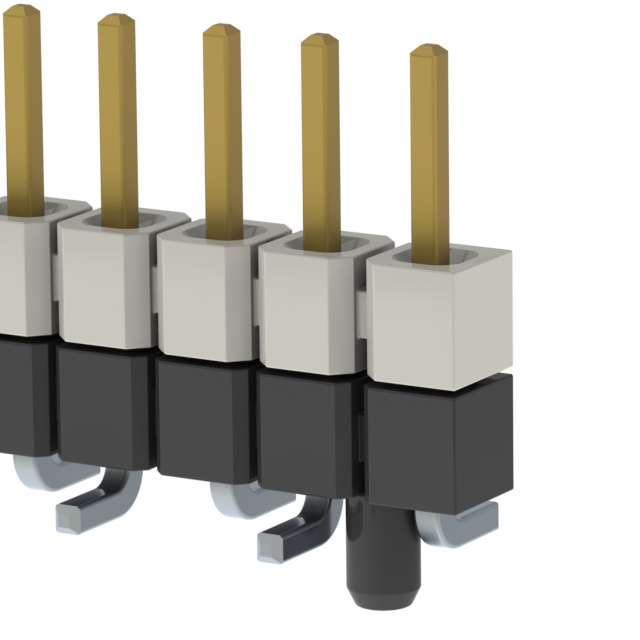

HW-07-08-S-S-250-SM-A

Active

Samtec Inc.

CONN HDR 7POS 0.1 STACK SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HW-07-08-S-S-250-SM-A

Active

Samtec Inc.

CONN HDR 7POS 0.1 STACK SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-07-08-S-S-250-SM-A

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	30 µin
Contact Finish Thickness - Post (Mating)	0.76 µm
Length - Overall Pin	11.811 mm
Length - Overall Pin	0.465 in
Length - Post (Mating) [x]	5.791 mm
Length - Post (Mating) [x]	0.215 in
Length - Stack Height [x]	0.25 in
Length - Stack Height [x]	6.35 mm
Mounting Type	Surface Mount
Number of Positions	7
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

HW-07-08 Series

Part	Length - Stack Height [x]	Length - Stack Height [x]	Termination	Row Spacing [x]	Row Spacing	Number of Positions	Mounting Type	Number of Rows	Color	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Pitch [x]	Pitch [x]	Contact Finish - Post (Mating)	Length - Overall Pin	Length - Overall Pin	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. HW-07-08-L-D-250-SM	0.25 in	6.35 mm	Solder	0.1 in	2.54 mm	14	Surface Mount	2	Black	0.25 Ám	10 Áin	2.54 mm	0.1 in	Gold	11.811 mm	0.465 in	5.791 mm	0.215 in
Samtec Inc. HW-07-08-T-D-300-SM	0.3 in	7.62 mm	Solder	0.1 in	2.54 mm	14	Surface Mount	2	Black			2.54 mm	0.1 in	Tin	11.811 mm	0.465 in	4.191 mm	0.165 in
Samtec Inc. HW-07-08-T-D-250-SM-A	0.25 in	6.35 mm	Solder	0.1 in	2.54 mm	14	Surface Mount	2	Black			2.54 mm	0.1 in	Tin	11.811 mm	0.465 in	5.791 mm	0.215 in
Samtec Inc. HW-07-08-F-D-255-SM	0.255 in	6.477 mm	Solder	0.1 in	2.54 mm	14	Surface Mount	2	Black	0.076 Ám	3 Áin	2.54 mm	0.1 in	Gold	11.811 mm	0.465 in	5.334 mm	0.21 in
Samtec Inc. HW-07-08-G-D-200-220			Solder	0.1 in	2.54 mm	14	Through Hole	2	Black	0.25 Ám	10 Áin	2.54 mm	0.1 in	Gold	13.462 mm	0.53 in	2.794 mm	0.11 in
Samtec Inc. HW-07-08-F-D-250-SM	0.25 in	6.35 mm	Solder	0.1 in	2.54 mm	14	Surface Mount	2	Black	0.076 Ám	3 Áin	2.54 mm	0.1 in	Gold	11.811 mm	0.465 in	5.791 mm	0.215 in
Samtec Inc. HW-07-08-F-S-305-SM			Solder			7	Surface Mount	1	Black	0.076 Ám	3 Áin	2.54 mm	0.1 in	Gold	11.811 mm	0.465 in	4.064 mm	0.16 in	7.747 mm	0.305 in
Samtec Inc. HW-07-08-F-D-355-SM-A-TR	0.355 in	9.017 mm	Solder	0.1 in	2.54 mm	14	Surface Mount	2	Black	0.076 Ám	3 Áin	2.54 mm	0.1 in	Gold	11.811 mm	0.465 in	2.794 mm	0.11 in
Samtec Inc. HW-07-08-T-D-250-SM-A-014	0.25 in	6.35 mm	Solder	0.1 in	2.54 mm	14	Surface Mount	2	Black			2.54 mm	0.1 in	Tin	11.811 mm	0.465 in	5.791 mm	0.215 in
Samtec Inc. HW-07-08-S-S-250-SM-A	0.25 in	6.35 mm	Solder			7	Surface Mount	1	Black	0.76 µm	30 µin	2.54 mm	0.1 in	Gold	11.811 mm	0.465 in	5.791 mm	0.215 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	32	$ 3.03

Description

General part information

HW-07-08 Series

7 Position Header Spacer Connector 0.100" (2.54mm) Gold Surface Mount
