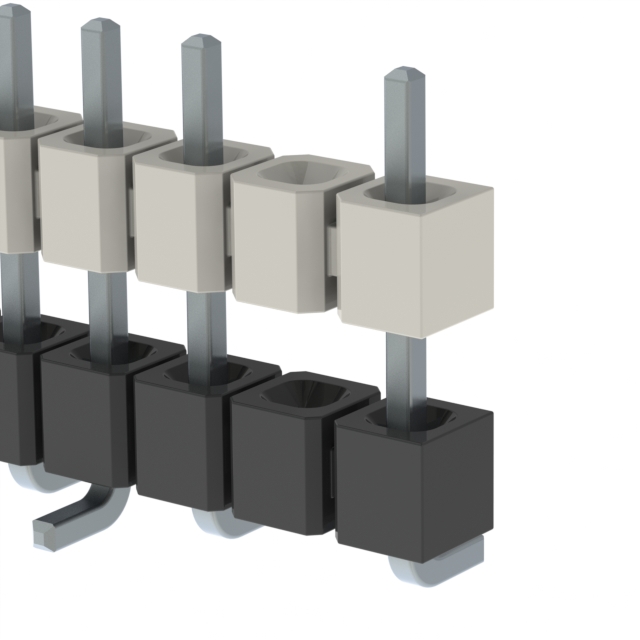

HW-07-08 Series

Catalog

CONN HDR 14POS 0.1 STACK SMD

Part	Length - Stack Height [x]	Length - Stack Height [x]	Termination	Row Spacing [x]	Row Spacing	Number of Positions	Mounting Type	Number of Rows	Color	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Pitch [x]	Pitch [x]	Contact Finish - Post (Mating)	Length - Overall Pin	Length - Overall Pin	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. HW-07-08-L-D-250-SM	0.25 in	6.35 mm	Solder	0.1 in	2.54 mm	14	Surface Mount	2	Black	0.25 Ám	10 Áin	2.54 mm	0.1 in	Gold	11.811 mm	0.465 in	5.791 mm	0.215 in
Samtec Inc. HW-07-08-T-D-300-SM	0.3 in	7.62 mm	Solder	0.1 in	2.54 mm	14	Surface Mount	2	Black			2.54 mm	0.1 in	Tin	11.811 mm	0.465 in	4.191 mm	0.165 in
Samtec Inc. HW-07-08-T-D-250-SM-A	0.25 in	6.35 mm	Solder	0.1 in	2.54 mm	14	Surface Mount	2	Black			2.54 mm	0.1 in	Tin	11.811 mm	0.465 in	5.791 mm	0.215 in
Samtec Inc. HW-07-08-F-D-255-SM	0.255 in	6.477 mm	Solder	0.1 in	2.54 mm	14	Surface Mount	2	Black	0.076 Ám	3 Áin	2.54 mm	0.1 in	Gold	11.811 mm	0.465 in	5.334 mm	0.21 in
Samtec Inc. HW-07-08-G-D-200-220			Solder	0.1 in	2.54 mm	14	Through Hole	2	Black	0.25 Ám	10 Áin	2.54 mm	0.1 in	Gold	13.462 mm	0.53 in	2.794 mm	0.11 in
Samtec Inc. HW-07-08-F-D-250-SM	0.25 in	6.35 mm	Solder	0.1 in	2.54 mm	14	Surface Mount	2	Black	0.076 Ám	3 Áin	2.54 mm	0.1 in	Gold	11.811 mm	0.465 in	5.791 mm	0.215 in
Samtec Inc. HW-07-08-F-S-305-SM			Solder			7	Surface Mount	1	Black	0.076 Ám	3 Áin	2.54 mm	0.1 in	Gold	11.811 mm	0.465 in	4.064 mm	0.16 in	7.747 mm	0.305 in
Samtec Inc. HW-07-08-F-D-355-SM-A-TR	0.355 in	9.017 mm	Solder	0.1 in	2.54 mm	14	Surface Mount	2	Black	0.076 Ám	3 Áin	2.54 mm	0.1 in	Gold	11.811 mm	0.465 in	2.794 mm	0.11 in
Samtec Inc. HW-07-08-T-D-250-SM-A-014	0.25 in	6.35 mm	Solder	0.1 in	2.54 mm	14	Surface Mount	2	Black			2.54 mm	0.1 in	Tin	11.811 mm	0.465 in	5.791 mm	0.215 in
Samtec Inc. HW-07-08-S-S-250-SM-A	0.25 in	6.35 mm	Solder			7	Surface Mount	1	Black	0.76 µm	30 µin	2.54 mm	0.1 in	Gold	11.811 mm	0.465 in	5.791 mm	0.215 in
