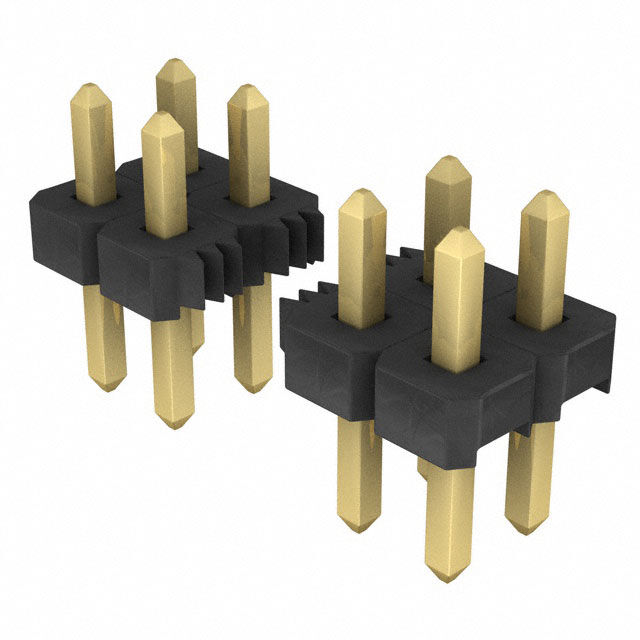

TLW-112-06-G-D

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 24 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TLW Datasheet

TLW-112-06-G-D

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 24 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

DocumentsDatasheet TLW Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLW-112-06-G-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	Flash
Contact Length - Post [x]	0.135 in
Contact Length - Post [x]	3.43 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.06 in
Insulation Height [z]	1.52 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	7.62 mm
Overall Contact Length	0.3 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TLW-112 Series

Part	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Contact Shape	Number of Positions	Current Rating (Amps)	Contact Type	Insulation Material	Connector Type	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Mounting Type	Contact Finish - Mating	Contact Material	Number of Rows	Style	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions Loaded	Insulation Height	Insulation Height
Samtec Inc. TLW-112-06-L-D	0.06 in	1.52 mm	7.62 mm	0.3 in	0.1 in	2.54 mm	Unshrouded	0.135 in	3.43 mm	Push-Pull	Square	24	5.2 A	Male Pin	Liquid Crystal Polymer (LCP)	Header	Solder	2.54 mm	0.1 in	-55 °C	125 °C	All	Through Hole	Gold	Phosphor Bronze	2	Board to Board Cable	Black
Samtec Inc. TLW-112-05-S-D	0.06 in	1.52 mm	8.51 mm	0.335 in	0.1 in	2.54 mm	Unshrouded			Push-Pull	Square	24	5.2 A	Male Pin	Liquid Crystal Polymer (LCP)	Header	Solder	2.54 mm	0.1 in	-55 °C	125 °C	All	Through Hole	Gold	Phosphor Bronze	2	Board to Board Cable	Black	4.32 mm	0.17 in
Samtec Inc. TLW-112-05-T-D	0.06 in	1.52 mm	8.51 mm	0.335 in	0.1 in	2.54 mm	Unshrouded			Push-Pull	Square	24	5.2 A	Male Pin	Liquid Crystal Polymer (LCP)	Header	Solder	2.54 mm	0.1 in	-55 °C	105 ░C	All	Through Hole		Phosphor Bronze	2	Board to Board Cable	Black	4.32 mm	0.17 in	Tin
Samtec Inc. TLW-112-06-G-S	0.06 in	1.52 mm	7.62 mm	0.3 in	0.1 in	2.54 mm	Unshrouded	0.135 in	3.43 mm	Push-Pull	Square	12	5.2 A	Male Pin	Liquid Crystal Polymer (LCP)	Header	Solder			-55 °C	125 °C	All	Through Hole	Gold	Phosphor Bronze	1	Board to Board Cable	Black			Gold	Flash	10 çin	0.25 çm
Samtec Inc. TLW-112-01-H-S-LA	0.098 in	2.5 mm			0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	Push-Pull	Square	12	5.2 A	Male Pin	Liquid Crystal Polymer (LCP)	Header	Solder			-55 °C	125 °C	All	Through Hole Right Angle	Gold	Phosphor Bronze	1	Board to Board Cable	Black							0.23 in	5.84 mm
Samtec Inc. TLW-112-06-T-S-01	0.06 in	1.52 mm	7.62 mm	0.3 in	0.1 in	2.54 mm	Unshrouded	0.135 in	3.43 mm	Push-Pull	Square	12	5.2 A	Male Pin	Liquid Crystal Polymer (LCP)	Header	Solder			-55 °C	105 ░C		Through Hole		Phosphor Bronze	1	Board to Board Cable	Black			Tin						11
Samtec Inc. TLW-112-06-G-D	0.06 in	1.52 mm	7.62 mm	0.3 in	0.1 in	2.54 mm	Unshrouded	0.135 in	3.43 mm	Push-Pull	Square	24	5.2 A	Male Pin	Liquid Crystal Polymer (LCP)	Header	Solder	2.54 mm	0.1 in	-55 °C	125 °C	All	Through Hole	Gold	Phosphor Bronze	2	Board to Board Cable	Black			Gold	Flash	10 çin	0.25 çm
Samtec Inc. TLW-112-01-TM-D-RA					0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	Push-Pull	Square	24	5.2 A	Male Pin	Liquid Crystal Polymer (LCP)	Header	Solder	2.54 mm	0.1 in	-55 °C	105 ░C	All	Through Hole Right Angle		Phosphor Bronze	2	Board to Board Cable	Black			Tin				0.23 in	5.84 mm		0.197 in	5 mm
Samtec Inc. TLW-112-06-F-S	0.06 in	1.52 mm	7.62 mm	0.3 in	0.1 in	2.54 mm	Unshrouded	0.135 in	3.43 mm	Push-Pull	Square	12	5.2 A	Male Pin	Liquid Crystal Polymer (LCP)	Header	Solder			-55 °C	125 °C	All	Through Hole	Gold	Phosphor Bronze	1	Board to Board Cable	Black			Tin		3 µin	0.076 µm
Samtec Inc. TLW-112-01-G-D-RA					0.1 in	2.54 mm	Unshrouded	0.12 in	3.05 mm	Push-Pull	Square	24	5.2 A	Male Pin	Liquid Crystal Polymer (LCP)	Header	Solder	2.54 mm	0.1 in	-55 °C	125 °C	All	Through Hole Right Angle	Gold	Phosphor Bronze	2	Board to Board Cable	Black			Gold	Flash	10 çin	0.25 çm	0.23 in	5.84 mm		0.197 in	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 4.30
		25	$ 3.89
		50	$ 3.61
		100	$ 3.44
		500	$ 2.54
Digikey	Bulk	1	$ 5.32
		10	$ 4.52
		100	$ 3.84
		500	$ 3.70

Description

General part information

TLW-112 Series

Connector Header Through Hole 24 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

TLW Datasheet

Datasheet
