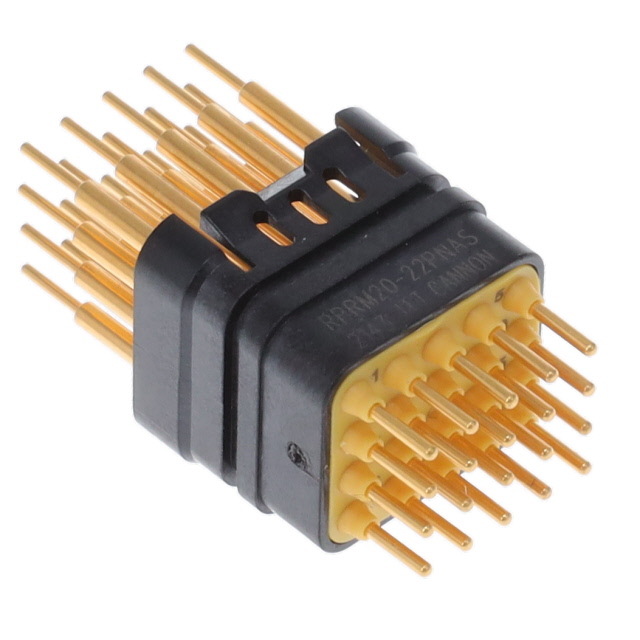

RPRM20-22PNAS
ActiveITT Cannon, LLC
CONN EN4165 INSERT 20-22 PIN PCB
Deep-Dive with AI
Search across all available documentation for this part.
RPRM20-22PNAS
ActiveITT Cannon, LLC
CONN EN4165 INSERT 20-22 PIN PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RPRM20-22PNAS |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Material | Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -55 °C |
| Shrouding | Unshrouded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 51.33 | |
| 10 | $ 47.10 | |||
| 25 | $ 45.29 | |||
| 40 | $ 43.78 | |||
| 80 | $ 41.37 | |||
| 230 | $ 40.16 | |||
Description
General part information
RPRM2 Series
Connector Header Through Hole 20 position
Documents
Technical documentation and resources
No documents available
