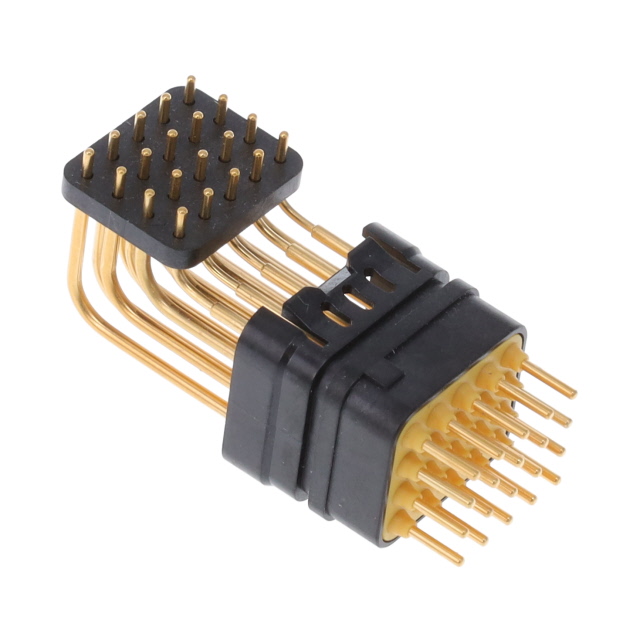

RPRM20-22PNCR

Active

ITT Cannon, LLC

CONN EN4165 INSERT 20-22 PIN R/A

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN EN4165 INSERT 20-22 PIN R/A

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Type	Contact Finish - Mating	Fastening Type	Contact Finish - Post	Insulation Color	Number of Positions Loaded	Insulation Material	Termination	Contact Material	Number of Positions	Mounting Type	Shrouding
ITT Cannon, LLC RPRM20-22SNCR	-55 °C	347 °F	Circular	Female Socket	Gold	Push-Pull	Gold	Black	All	Thermoplastic	Solder	Copper Alloy	20	Through Hole Right Angle
ITT Cannon, LLC RPRM20-22PNAS	-55 °C	347 °F	Circular	Male Pin	Gold	Push-Pull	Gold	Black	All	Thermoplastic	Solder	Copper Alloy	20	Through Hole	Unshrouded
ITT Cannon, LLC RPRM20-22PNCR	-55 °C	347 °F	Circular	Male Pin	Gold	Push-Pull	Gold	Black	All	Thermoplastic	Solder	Copper Alloy	20	Through Hole Right Angle	Unshrouded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 31.60

General part information

Connector Header Through Hole, Right Angle 20 position

Technical documentation and resources

No documents available
