DL1-156R

Active

ITT Cannon, LLC

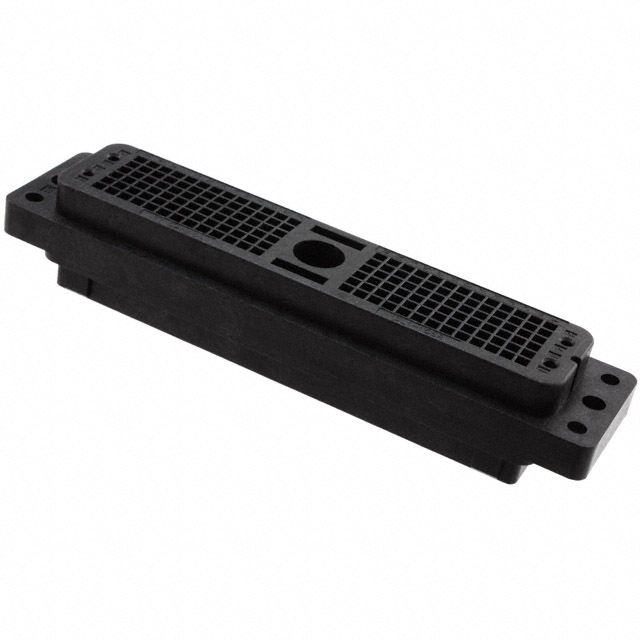

CONNECTOR HOUSING, ZIF, PLASTIC, ITT CANNON DL SERIES, RECEPTACLE, 156 POSITIONS, 2.54 MM

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONNECTOR HOUSING, ZIF, PLASTIC, ITT CANNON DL SERIES, RECEPTACLE, 156 POSITIONS, 2.54 MM

Technical Specifications

Parameters and characteristics for this part

Specification	DL1-156R

Color	Black
Connector Type	Housing for Non-Gendered Contacts
Connector Usage	Receptacle
Features	Shielding, Zero Insertion Force (ZIF), Actuating Camshaft
Note	Contacts Not Included
Number of Rows	6
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

Part	Material Flammability Rating	Connector Type	Number of Rows	Number of Positions Loaded	Color	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Termination	Contact Finish	Connector Usage	Note
ITT Cannon, LLC DL1-156RW-4B	UL94 V-1	Hermaphroditic Contacts Receptacle	6	All	Black	50 µin	1.27 µm	2.54 mm	0.1 in	105 ░C	-55 °C	Actuating Camshaft Socket Zero Insertion Force (ZIF)	Wire Wrap	Gold
ITT Cannon, LLC DL1-156RW-6B	UL94 V-1	Hermaphroditic Contacts Receptacle	6	All	Black	50 µin	1.27 µm	2.54 mm	0.1 in	105 ░C	-55 °C	Actuating Camshaft Socket Zero Insertion Force (ZIF)	Solder	Gold
ITT Cannon, LLC DL1-156R		Housing for Non-Gendered Contacts	6		Black			2.54 mm	0.1 in			Actuating Camshaft Shielding Zero Insertion Force (ZIF)			Receptacle	Contacts Not Included
ITT Cannon, LLC DL1-156PW6A	UL94 V-0	Hermaphroditic Contacts Plug	6	All	Black	50 µin	1.27 µm	2.54 mm	0.1 in	105 ░C	-55 °C	Actuating Camshaft Zero Insertion Force (ZIF)	Solder	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

The DL1-156R is a Housing for 156-position ZIF Receptacle. It is made of anti-static synthetic rubber.
