DL1-156RW-4B

Active

ITT Cannon, LLC

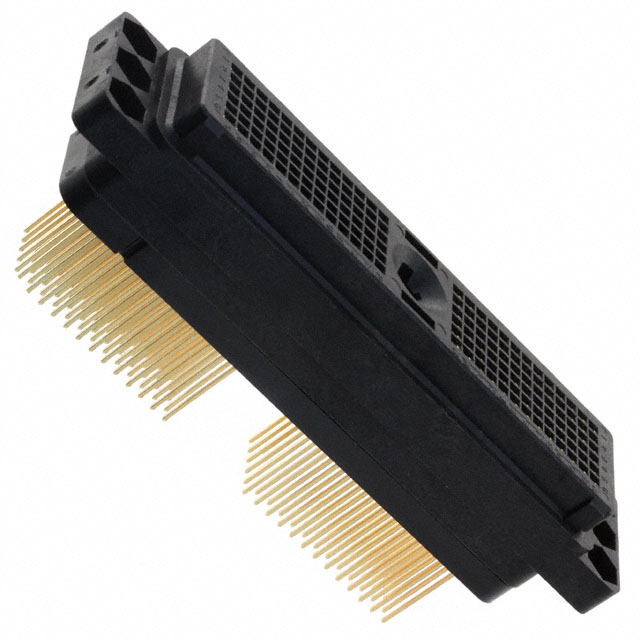

CONN RCPT 156POS PNL MNT

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT 156POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	DL1-156RW-4B

Color	Black
Connector Type	Hermaphroditic Contacts, Receptacle
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Features	Zero Insertion Force (ZIF), Actuating Camshaft Socket
Material Flammability Rating	UL94 V-1
Number of Positions Loaded	All
Number of Rows	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Wire Wrap

Part	Material Flammability Rating	Connector Type	Number of Rows	Number of Positions Loaded	Color	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Termination	Contact Finish	Connector Usage	Note
ITT Cannon, LLC DL1-156RW-4B	UL94 V-1	Hermaphroditic Contacts Receptacle	6	All	Black	50 µin	1.27 µm	2.54 mm	0.1 in	105 ░C	-55 °C	Actuating Camshaft Socket Zero Insertion Force (ZIF)	Wire Wrap	Gold
ITT Cannon, LLC DL1-156RW-6B	UL94 V-1	Hermaphroditic Contacts Receptacle	6	All	Black	50 µin	1.27 µm	2.54 mm	0.1 in	105 ░C	-55 °C	Actuating Camshaft Socket Zero Insertion Force (ZIF)	Solder	Gold
ITT Cannon, LLC DL1-156R		Housing for Non-Gendered Contacts	6		Black			2.54 mm	0.1 in			Actuating Camshaft Shielding Zero Insertion Force (ZIF)			Receptacle	Contacts Not Included
ITT Cannon, LLC DL1-156PW6A	UL94 V-0	Hermaphroditic Contacts Plug	6	All	Black	50 µin	1.27 µm	2.54 mm	0.1 in	105 ░C	-55 °C	Actuating Camshaft Zero Insertion Force (ZIF)	Solder	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

156 Connector Receptacle, Hermaphroditic Contacts Panel Mount Black
