859-304

Active

WAGO Corporation

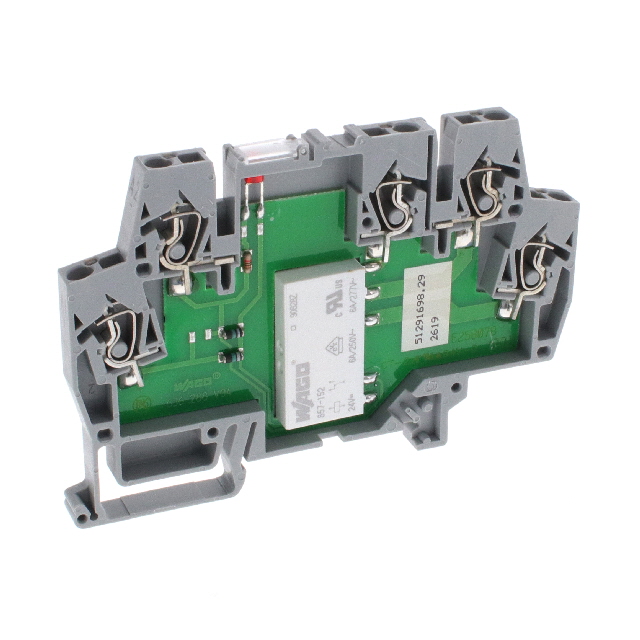

POWER RELAY, MODULE, SPDT, 24 VDC, 5 A, DIN RAIL, NON LATCHING

Search across all available documentation for this part.

Active

WAGO Corporation

POWER RELAY, MODULE, SPDT, 24 VDC, 5 A, DIN RAIL, NON LATCHING

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	859-304	859 Series

Applications	-	Industrial
Approval Agency	-	UL, CE
Coil Current	10 mA	10 mA
Coil Resistance	2.4 kOhms	2.4 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	24 VDC
Color	-	Gray
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	5 A	5 A
Current - Output (Max)	-	500 mA
DC Voltage - Input (Max)	-	30 V
DC Voltage - Input (Min)	-	10 - 15 V
Efficiency	-	70 - 85 %
Features	Lighted Indicator	Adjustable Output, Lighted Indicator
For Use With/Related Products	-	Terminal Blocks
Input Type	-	DC
Load - Max Switching [Max]	1250 VA	1250 VA
Mounting Type	DIN Rail	DIN Rail
Must Operate Voltage	20.4 VDC	20.4 VDC
Number of Outputs	-	1
Number of Positions	-	2 - 10
Operate Time	15 ms	15 ms
Operating Temperature [Max]	50 °C	40 - 55 °C
Operating Temperature [Min]	-40 °C	-40 - 0 °C
Relay Type	General Purpose	General Purpose
Release Time	25 ms	25 ms
Standard Number	-	508
Style	-	Flat Pins
Switching Voltage	250 VAC	250 VAC
Termination Style	Spring Terminal	Spring Terminal
Type	-	Terminal Block, Cross Connection, End Plate
Voltage - Output 1	-	5 - 10 V

ACCESSORY, LIGHT GRAY, WAGO RAIL MOUNT TERMINAL BLOCKS, JUPER BAR

Part	Style	Color	Type	For Use With/Related Products	Number of Positions	Efficiency	Number of Outputs	Applications	Standard Number	Current - Output (Max) [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Approval Agency	Input Type	Voltage - Output 1	Release Time	Must Operate Voltage	Switching Voltage	Load - Max Switching [Max]	Mounting Type	Coil Resistance	Operate Time	Contact Rating (Current)	Coil Type	Contact Form	Relay Type	Coil Voltage	Termination Style	Coil Current	Contact Material
WAGO Corporation 859-404	Flat Pins	Gray	Terminal Block, Cross Connection	Terminal Blocks	4
WAGO Corporation 859-801						70 %	1	Industrial	508	500 mA	Adjustable Output	40 °C	0 °C	30 V	10 V	CE, UL	DC	5 V
WAGO Corporation 859-525		Gray	End Plate	Terminal Blocks
WAGO Corporation 859-410	Flat Pins	Gray	Terminal Block, Cross Connection	Terminal Blocks	10
WAGO Corporation 859-402	Flat Pins	Gray	Terminal Block, Cross Connection	Terminal Blocks	2
WAGO Corporation 859-406	Flat Pins	Gray	Terminal Block, Cross Connection	Terminal Blocks	6
WAGO Corporation 859-403	Flat Pins	Gray	Terminal Block, Cross Connection	Terminal Blocks
WAGO Corporation 859-408	Flat Pins	Gray	Terminal Block, Cross Connection	Terminal Blocks	8
WAGO Corporation 859-304											Lighted Indicator	50 °C	-40 °C						25 ms	20.4 VDC	250 VAC	1250 VA	DIN Rail	2.4 kOhms	15 ms	5 A	Non Latching	SPDT (1 Form C)	General Purpose	24 VDC	Spring Terminal	10 mA	Silver Tin Oxide (AgSnO)
WAGO Corporation 859-802						85 %	1	Industrial	508	500 mA	Adjustable Output	55 °C	-25 °C	30 V	15 V	CE, UL	DC	10 V
