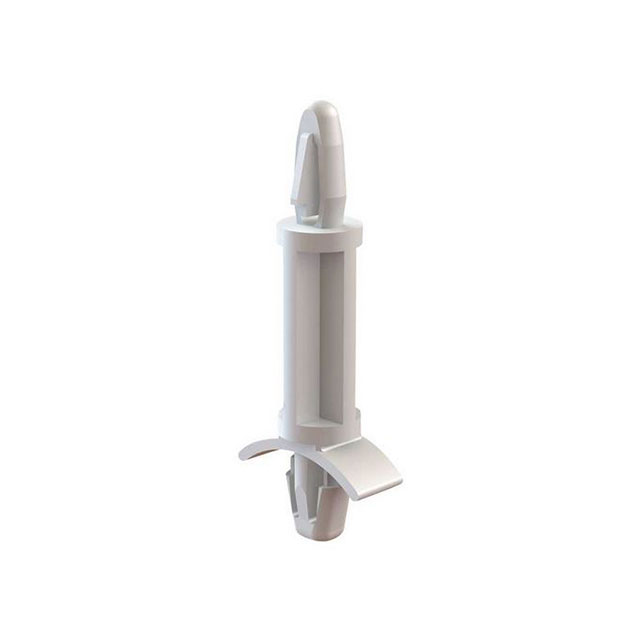

LCBS-16-19
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 1"
Deep-Dive with AI
Search across all available documentation for this part.
LCBS-16-19
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 1"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCBS-16-19 |
|---|---|
| Between Board Height | 1 in |
| Between Board Height | 25.4 mm |
| Features | Winged |
| Holding Type | Snap Lock |
| Length - Overall [x] | 44 mm |
| Length - Overall [x] | 1.732 in |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.187 in |
| Mounting Hole Diameter [diameter] | 4.75 mm |
| Mounting Hole Diameter [diameter] | 3 in |
| Mounting Panel Thickness [Max] | 1.98 mm |
| Mounting Panel Thickness [Max] | 0.078 " |
| Mounting Panel Thickness [Min] | 0.79 mm |
| Mounting Panel Thickness [Min] | 0.031 in |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.57 | |
| 5 | $ 0.49 | |||
| 10 | $ 0.41 | |||
| 25 | $ 0.38 | |||
| 50 | $ 0.37 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.28 | |||
Description
General part information
LCBS-16 Series
Board Support Snap Lock / Snap Lock Nylon 1.000" (25.40mm) 1"
Documents
Technical documentation and resources
No documents available
