LCBS-16-HT
ActiveEssentra Access Solutions

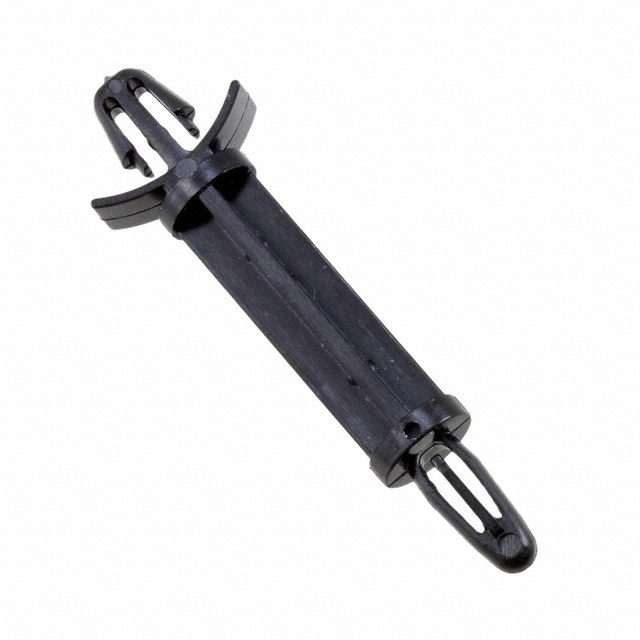

BRD SPT SNAP LOCK NYLON 1"
Deep-Dive with AI
Search across all available documentation for this part.
LCBS-16-HT
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 1"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCBS-16-HT |
|---|---|
| Between Board Height | 1 in |
| Between Board Height | 25.4 mm |
| Features | High Temperature, Winged |
| Holding Type | Snap Lock |
| Length - Overall | 43.9 mm |
| Length - Overall [x] | 1.728 in |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.187 in |
| Mounting Hole Diameter [diameter] | 4.75 mm |
| Mounting Hole Diameter [diameter] | 3 in |
| Mounting Panel Thickness [Max] | 0.08 " |
| Mounting Panel Thickness [Max] | 2.03 mm |
| Mounting Panel Thickness [Min] | 1.4 mm |
| Mounting Panel Thickness [Min] | 0.055 " |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
LCBS-16 Series
| Part | Between Board Height | Between Board Height | Support Panel Thickness | Support Panel Thickness | Support Panel Thickness | Mounting Type | Material | Holding Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Support Hole Diameter [diameter] | Support Hole Diameter [diameter] | Mounting Panel Thickness [Max] | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Max] | Mounting Panel Thickness [Min] | Features | Length - Overall [x] | Length - Overall | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Essentra Access Solutions | 1 in | 25.4 mm | 0.0625 " | 0.062 " | 1.57 mm | Snap Lock | Nylon | Snap Lock | 0.187 in | 4.75 mm | 3 in | 0.157 " | 3.99 mm | 0.08 " | 1.4 mm | 2.03 mm | 0.055 " | High Temperature Winged | 1.728 in | 43.9 mm | |
Essentra Access Solutions | 1 in | 25.4 mm | 0.0625 " | 0.062 " | 1.57 mm | Snap Lock | Nylon | Snap Lock | 0.187 in | 4.75 mm | 3 in | 0.157 " | 3.99 mm | 0.078 " | 0.79 mm | 1.98 mm | 0.031 in | Winged | 1.732 in | 44 mm | |
Essentra Access Solutions | 1 in | 25.4 mm | 0.0625 " | 0.062 " | 1.57 mm | Snap Lock | Nylon | Snap Lock | 0.187 in | 4.75 mm | 3 in | 0.157 " | 3.99 mm | 0.078 " | 0.79 mm | 1.98 mm | 0.031 in | Winged | 1.732 in | 44 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.26 | |
| 10 | $ 0.20 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.16 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.12 | |||
| 2500 | $ 0.11 | |||
Description
General part information
LCBS-16 Series
Board Support Snap Lock / Snap Lock Nylon 1.000" (25.40mm) 1"
