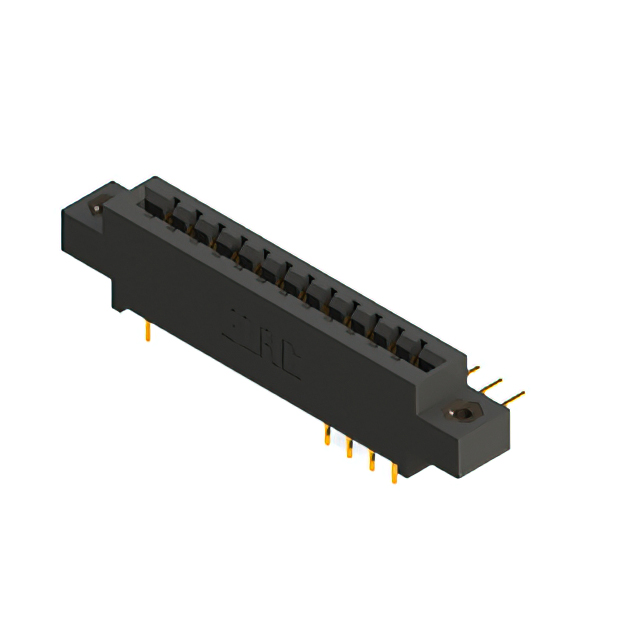

887-024-559-808

Active

EDAC Inc.

CONN EDGE DUAL FMALE 24POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

887-024-559-808

Active

EDAC Inc.

CONN EDGE DUAL FMALE 24POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	887-024-559-808

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	24
Number of Positions/Bay/Row [custom]	12
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

887-024 Series

...

Part	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Color	Pitch [x]	Pitch [x]	Card Type	Termination	Number of Positions/Bay/Row [custom]	Number of Positions	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Read Out	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Termination Rows	Number of Rows	Material - Insulation	Features	Flange Feature	Flange Feature
EDAC Inc. 887-024-559-203	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Dual Edge	Solder	12	24	0.116 in	Floating Bobbin Flush Mount	2.95 mm	10 Áin	0.25 Ám	Gold	Dual	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	2	2	Polyphenylene Sulfide (PPS)
EDAC Inc. 887-024-555-802	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Dual Edge	Solder	12	24				10 Áin	0.25 Ám	Gold	Dual	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	2	2	Polyphenylene Sulfide (PPS)	Card Extender	3.25 mm	0.128 in
EDAC Inc. 887-024-559-808	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Dual Edge	Solder	12	24		4-40 Threaded Insert Top Mount Opening		10 Áin	0.25 Ám	Gold	Dual	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	2	2	Polyphenylene Sulfide (PPS)
EDAC Inc. 887-024-544-804	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Dual Edge	Wire Wrap	12	24	0.156 in	Top Mount Opening Unthreaded	3.96 mm	10 Áin	0.25 Ám	Gold	Dual	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	2	2	Polyphenylene Sulfide (PPS)
EDAC Inc. 887-024-500-207	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Dual Edge	Solder Eyelet(s)	12	24		Flush Mount M3 Threaded Insert Top Opening		10 Áin	0.25 Ám	Gold	Dual	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	2	2	Polyphenylene Sulfide (PPS)
EDAC Inc. 887-024-559-202	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Dual Edge	Solder	12	24	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	10 Áin	0.25 Ám	Gold	Dual	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	2	2	Polyphenylene Sulfide (PPS)
EDAC Inc. 887-024-558-103	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Single Edge	Solder	24	24	0.116 in	Floating Bobbin Flush Mount	2.95 mm	10 Áin	0.25 Ám	Gold	Single	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	1	1	Polyphenylene Sulfide (PPS)
EDAC Inc. 887-024-542-807	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Dual Edge	Wire Wrap	12	24		M3 Threaded Insert Top Mount Opening		10 Áin	0.25 Ám	Gold	Dual	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	2	2	Polyphenylene Sulfide (PPS)
EDAC Inc. 887-024-500-602	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Single Edge	Solder Eyelet(s)	24	24				10 Áin	0.25 Ám	Gold	Single	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	1	1	Polyphenylene Sulfide (PPS)		3.25 mm	0.128 in
EDAC Inc. 887-024-540-604	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Single Edge	Wire Wrap	24	24	0.156 in	Top Mount Opening Unthreaded	3.96 mm	10 Áin	0.25 Ám	Gold	Single	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	1	1	Polyphenylene Sulfide (PPS)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 79.96
Newark	Each	1	$ 96.95
		100	$ 66.00
		250	$ 52.09
		500	$ 43.50
		1000	$ 36.38

Description

General part information

887-024 Series

24 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
