887-024-500-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 24POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

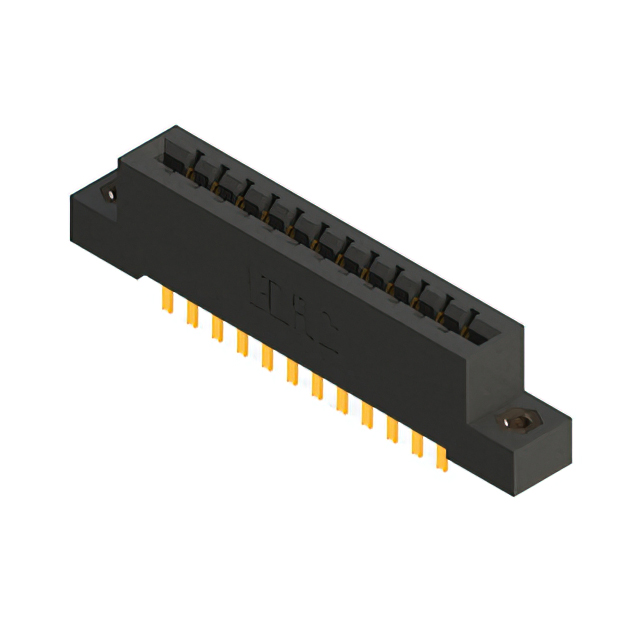

887-024-500-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 24POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	887-024-500-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	24
Number of Positions/Bay/Row [custom]	12
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

887-024 Series

...

Part	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Color	Pitch [x]	Pitch [x]	Card Type	Termination	Number of Positions/Bay/Row [custom]	Number of Positions	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Read Out	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Termination Rows	Number of Rows	Material - Insulation	Features	Flange Feature	Flange Feature
EDAC Inc. 887-024-559-203	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Dual Edge	Solder	12	24	0.116 in	Floating Bobbin Flush Mount	2.95 mm	10 Áin	0.25 Ám	Gold	Dual	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	2	2	Polyphenylene Sulfide (PPS)
EDAC Inc. 887-024-555-802	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Dual Edge	Solder	12	24				10 Áin	0.25 Ám	Gold	Dual	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Board Edge Straddle Mount	2	2	Polyphenylene Sulfide (PPS)	Card Extender	3.25 mm	0.128 in
EDAC Inc. 887-024-559-808	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Dual Edge	Solder	12	24		4-40 Threaded Insert Top Mount Opening		10 Áin	0.25 Ám	Gold	Dual	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	2	2	Polyphenylene Sulfide (PPS)
EDAC Inc. 887-024-544-804	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Dual Edge	Wire Wrap	12	24	0.156 in	Top Mount Opening Unthreaded	3.96 mm	10 Áin	0.25 Ám	Gold	Dual	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	2	2	Polyphenylene Sulfide (PPS)
EDAC Inc. 887-024-500-207	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Dual Edge	Solder Eyelet(s)	12	24		Flush Mount M3 Threaded Insert Top Opening		10 Áin	0.25 Ám	Gold	Dual	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	2	2	Polyphenylene Sulfide (PPS)
EDAC Inc. 887-024-559-202	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Dual Edge	Solder	12	24	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	10 Áin	0.25 Ám	Gold	Dual	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	2	2	Polyphenylene Sulfide (PPS)
EDAC Inc. 887-024-558-103	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Single Edge	Solder	24	24	0.116 in	Floating Bobbin Flush Mount	2.95 mm	10 Áin	0.25 Ám	Gold	Single	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	1	1	Polyphenylene Sulfide (PPS)
EDAC Inc. 887-024-542-807	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Dual Edge	Wire Wrap	12	24		M3 Threaded Insert Top Mount Opening		10 Áin	0.25 Ám	Gold	Dual	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	2	2	Polyphenylene Sulfide (PPS)
EDAC Inc. 887-024-500-602	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Single Edge	Solder Eyelet(s)	24	24				10 Áin	0.25 Ám	Gold	Single	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	1	1	Polyphenylene Sulfide (PPS)		3.25 mm	0.128 in
EDAC Inc. 887-024-540-604	Cantilever	125 °C	-40 °C	Female	Black	0.156 in	3.96 mm	Non Specified - Single Edge	Wire Wrap	24	24	0.156 in	Top Mount Opening Unthreaded	3.96 mm	10 Áin	0.25 Ám	Gold	Single	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	1	1	Polyphenylene Sulfide (PPS)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 105.11
Newark	Each	1	$ 126.14
		100	$ 79.36
		250	$ 57.14
		500	$ 49.64
		1000	$ 39.25

Description

General part information

887-024 Series

24 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
