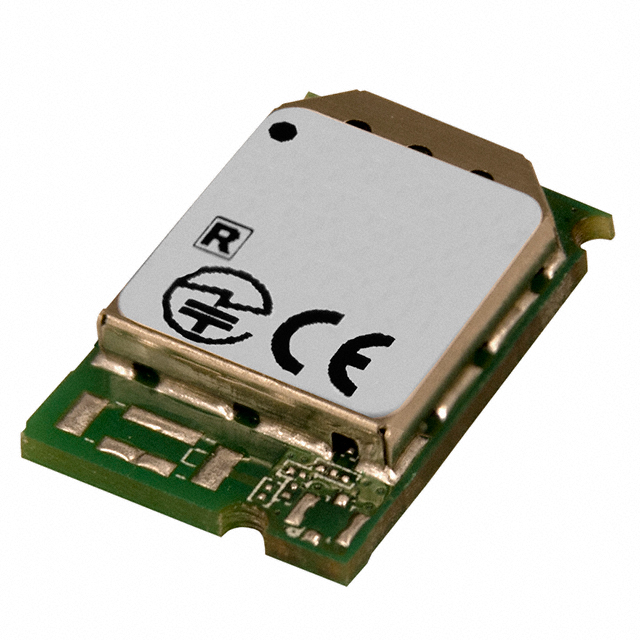

BL620-ST

Active

Ezurio LLC

BLUETOOTH V4.0 (BLE) SMART SOC 4MBPS 3V 44-PIN EACH

Search across all available documentation for this part.

Active

Ezurio LLC

BLUETOOTH V4.0 (BLE) SMART SOC 4MBPS 3V 44-PIN EACH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BL620-ST	BL620 Series

Antenna Type	Antenna Not Included	Antenna Not Included, I-PEX MHF4, Integrated, Chip
Applications	-	General Purpose
Current - Receiving	10.5 mA	10.5 mA
Current - Transmitting	10.5 mA	10.5 mA
Data Rate	1 Mbps	1 Mbps
Data Rate (Max)	-	1 Mbps
Frequency	2.4 GHz	2.4 GHz
Frequency	-	2.4 GHz
Frequency	-	2.48 GHz
Function	-	Transceiver
Interface	-	USB
Modulation or Protocol	-	Bluetooth v4.0, Low Energy (BLE)
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Power - Output	4 dBm	4 dBm
Protocol	Bluetooth v4.0	Bluetooth v4.0
RF Family/Standard	Bluetooth	Bluetooth
Sensitivity	-91 dBm	-91 dBm
Serial Interfaces	UART, I2C, SPI	UART, I2C, SPI
Utilized IC / Part	nRF51822	nRF51822
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.8 V	1.8 V

BLE MOD USB DONGLE SMARTBASIC

Part	Applications	Interface	Modulation or Protocol	Frequency [Min]	Frequency [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate (Max)	Function	Power - Output	Sensitivity	Current - Transmitting	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Package / Case	Mounting Type	RF Family/Standard	Current - Receiving	Frequency	Serial Interfaces	Antenna Type	Protocol	Data Rate
Ezurio LLC BL620-US	General Purpose	USB	Bluetooth v4.0, Low Energy (BLE)	2.4 GHz	2.48 GHz	3.6 V	1.8 V	1 Mbps	Transceiver	4 dBm	-91 dBm
Ezurio LLC BL620-SC						3.6 V	1.8 V			4 dBm	-91 dBm	10.5 mA	85 °C	-40 °C	nRF51822	Module	Surface Mount	Bluetooth	10.5 mA	2.4 GHz	I2C, SPI, UART	Antenna Not Included, I-PEX MHF4	Bluetooth v4.0	1 Mbps
Ezurio LLC BL620-SA						3.6 V	1.8 V			4 dBm	-91 dBm	10.5 mA	85 °C	-40 °C	nRF51822	Module	Surface Mount	Bluetooth	10.5 mA	2.4 GHz	I2C, SPI, UART	Integrated, Chip	Bluetooth v4.0	1 Mbps
Ezurio LLC BL620-US	General Purpose	USB	Bluetooth v4.0, Low Energy (BLE)	2.4 GHz	2.48 GHz	3.6 V	1.8 V	1 Mbps	Transceiver	4 dBm	-91 dBm
Ezurio LLC BL620-ST						3.6 V	1.8 V			4 dBm	-91 dBm	10.5 mA	85 °C	-40 °C	nRF51822	Module	Surface Mount	Bluetooth	10.5 mA	2.4 GHz	I2C, SPI, UART	Antenna Not Included	Bluetooth v4.0	1 Mbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bluetooth Bluetooth v4.0 Transceiver Module 2.4GHz Antenna Not Included Surface Mount
