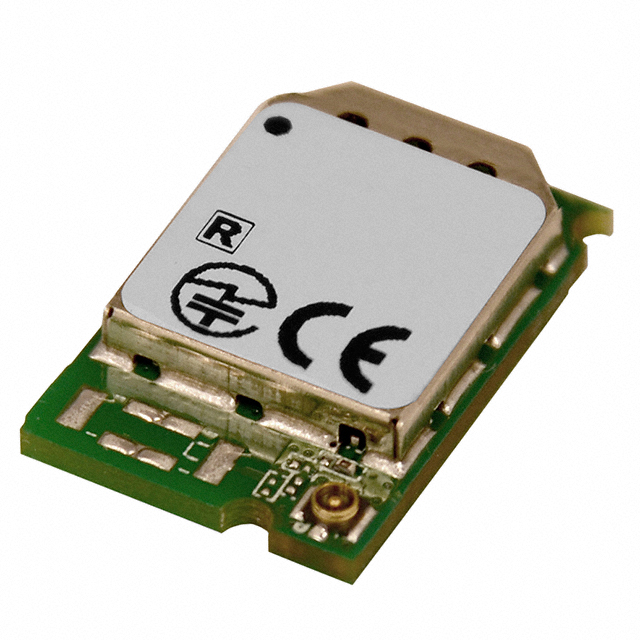

BL620-SC

Active

Ezurio LLC

RF TXRX MOD BTIPEX MHF4 SMD

Search across all available documentation for this part.

Active

Ezurio LLC

RF TXRX MOD BTIPEX MHF4 SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bluetooth Bluetooth v4.0 Transceiver Module 2.4GHz Antenna Not Included, I-PEX MHF4 Surface Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BL620-SC	BL620 Series

Antenna Type	Antenna Not Included, I-PEX MHF4	Antenna Not Included, I-PEX MHF4, Integrated, Chip
Applications	-	General Purpose
Current - Receiving	10.5 mA	10.5 mA
Current - Transmitting	10.5 mA	10.5 mA
Data Rate	1 Mbps	1 Mbps
Data Rate (Max)	-	1 Mbps
Frequency	2.4 GHz	2.4 GHz
Frequency	-	2.4 GHz
Frequency	-	2.48 GHz
Function	-	Transceiver
Interface	-	USB
Modulation or Protocol	-	Bluetooth v4.0, Low Energy (BLE)
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Power - Output	4 dBm	4 dBm
Protocol	Bluetooth v4.0	Bluetooth v4.0
RF Family/Standard	Bluetooth	Bluetooth
Sensitivity	-91 dBm	-91 dBm
Serial Interfaces	UART, I2C, SPI	UART, I2C, SPI
Utilized IC / Part	nRF51822	nRF51822
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.8 V	1.8 V

BLE MOD USB DONGLE SMARTBASIC

Part	Applications	Interface	Modulation or Protocol	Frequency [Min]	Frequency [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate (Max)	Function	Power - Output	Sensitivity	Current - Transmitting	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Package / Case	Mounting Type	RF Family/Standard	Current - Receiving	Frequency	Serial Interfaces	Antenna Type	Protocol	Data Rate
Ezurio LLC BL620-US	General Purpose	USB	Bluetooth v4.0, Low Energy (BLE)	2.4 GHz	2.48 GHz	3.6 V	1.8 V	1 Mbps	Transceiver	4 dBm	-91 dBm
Ezurio LLC BL620-SC						3.6 V	1.8 V			4 dBm	-91 dBm	10.5 mA	85 °C	-40 °C	nRF51822	Module	Surface Mount	Bluetooth	10.5 mA	2.4 GHz	I2C, SPI, UART	Antenna Not Included, I-PEX MHF4	Bluetooth v4.0	1 Mbps
Ezurio LLC BL620-SA						3.6 V	1.8 V			4 dBm	-91 dBm	10.5 mA	85 °C	-40 °C	nRF51822	Module	Surface Mount	Bluetooth	10.5 mA	2.4 GHz	I2C, SPI, UART	Integrated, Chip	Bluetooth v4.0	1 Mbps
Ezurio LLC BL620-US	General Purpose	USB	Bluetooth v4.0, Low Energy (BLE)	2.4 GHz	2.48 GHz	3.6 V	1.8 V	1 Mbps	Transceiver	4 dBm	-91 dBm
Ezurio LLC BL620-ST						3.6 V	1.8 V			4 dBm	-91 dBm	10.5 mA	85 °C	-40 °C	nRF51822	Module	Surface Mount	Bluetooth	10.5 mA	2.4 GHz	I2C, SPI, UART	Antenna Not Included	Bluetooth v4.0	1 Mbps
