General part information

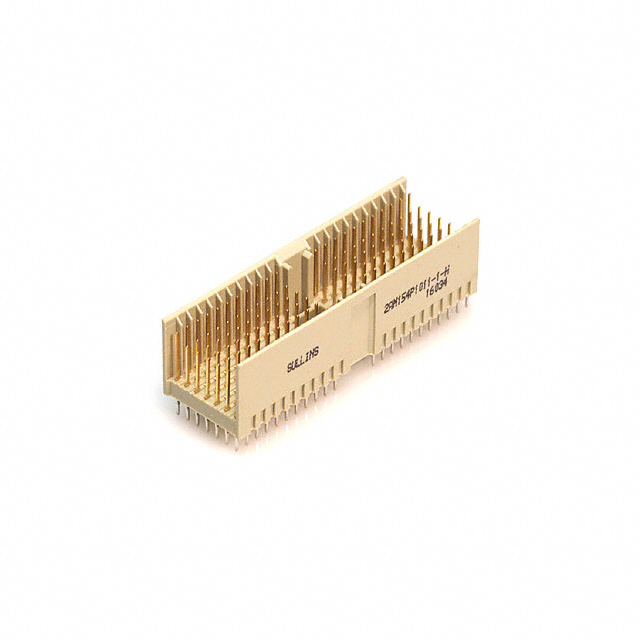

154 (110 + 44 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2AM154P1011-1-H | 2AM154 Series |
|---|---|---|
| Connector Style | A 22 | A 22 |
| Connector Type | Header, Male Pins | Header, Male Pins |
| Connector Usage | CompactPCI | CompactPCI Hot Swap, CompactPCI |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Current Rating (Amps) | 1 A | 1 A |
| Features | Board Guide | Board Guide |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 154 | 154 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2, 5 | 2 - 5 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 0.079 in | 0.079 in |
| Pitch [x] | 2 mm | 2 mm |
| Termination | Press-Fit | Press-Fit |
CONN HEADER 154POS 2MM PRESS-FIT
| Part | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Number of Rows | Termination | Connector Usage | Number of Positions Loaded | Mounting Type | Current Rating (Amps) | Features | Connector Style | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions 2AM154P1012-1-H | 0.079 in | 2 mm | 125 °C | -65 ░C | Header, Male Pins | 2, 5 | Press-Fit | CompactPCI Hot Swap | All | Through Hole | 1 A | Board Guide | A 22 | Gold | 0.76 Ám | 30 Áin | 154 |
Sullins Connector Solutions 2AM154P1011-1-H | 0.079 in | 2 mm | 125 °C | -65 ░C | Header, Male Pins | 2, 5 | Press-Fit | CompactPCI | All | Through Hole | 1 A | Board Guide | A 22 | Gold | 0.76 Ám | 30 Áin | 154 |
