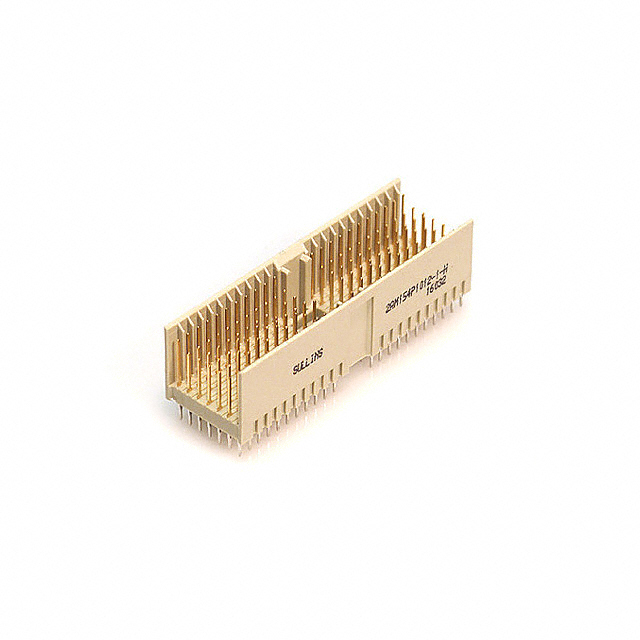

2AM154P1012-1-H

Obsolete

Sullins Connector Solutions

CONN HEADER 154POS 2MM PRESS-FIT

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN HEADER 154POS 2MM PRESS-FIT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

154 (110 + 44 Ground) Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole

Technical documentation and resources

Specification	2AM154P1012-1-H	2AM154 Series

Connector Style	A 22	A 22
Connector Type	Header, Male Pins	Header, Male Pins
Connector Usage	CompactPCI Hot Swap	CompactPCI Hot Swap, CompactPCI
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Current Rating (Amps)	1 A	1 A
Features	Board Guide	Board Guide
Mounting Type	Through Hole	Through Hole
Number of Positions	154	154
Number of Positions Loaded	All	All
Number of Rows	2, 5	2 - 5
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	0.079 in	0.079 in
Pitch [x]	2 mm	2 mm
Termination	Press-Fit	Press-Fit

Part	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Rows	Termination	Connector Usage	Number of Positions Loaded	Mounting Type	Current Rating (Amps)	Features	Connector Style	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
Sullins Connector Solutions 2AM154P1012-1-H	0.079 in	2 mm	125 °C	-65 ░C	Header, Male Pins	2, 5	Press-Fit	CompactPCI Hot Swap	All	Through Hole	1 A	Board Guide	A 22	Gold	0.76 Ám	30 Áin	154
Sullins Connector Solutions 2AM154P1011-1-H	0.079 in	2 mm	125 °C	-65 ░C	Header, Male Pins	2, 5	Press-Fit	CompactPCI	All	Through Hole	1 A	Board Guide	A 22	Gold	0.76 Ám	30 Áin	154
