05K121-272S3

Active

Rosenberger

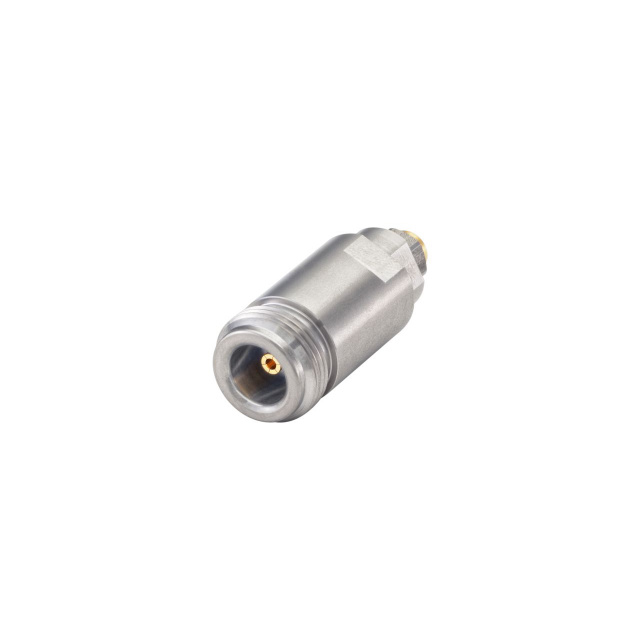

PRECISION N TYPE STRAIGHT JACK

Search across all available documentation for this part.

Active

Rosenberger

PRECISION N TYPE STRAIGHT JACK

Technical Specifications

Parameters and characteristics for this part

Part	Impedance	Dielectric Material	Center Contact Material	Contact Termination	Voltage Rating	Connector Type	Frequency - Max [Max]	Body Material	Connector Style	Center Contact Plating	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Number of Ports	Shield Termination	Accessory Type	Specifications	Type	For Use With/Related Products
Rosenberger 05K121-272S3	50 Ohms	Polyphenylene Ether (PPE)	Beryllium Copper	Solder	335 V	Female Socket Jack	18 GHz	Stainless Steel	N Type	Gold	Push-Pull	85 °C	-40 °C	500	1	Solder
Rosenberger 05K121-K20S3																	Calibration Adapter	Jack N Type 50Ohm Jack	Specialized	Network Analyzer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 188.78

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Technical documentation and resources

No documents available
