05K121-K20S3
ActiveRosenberger

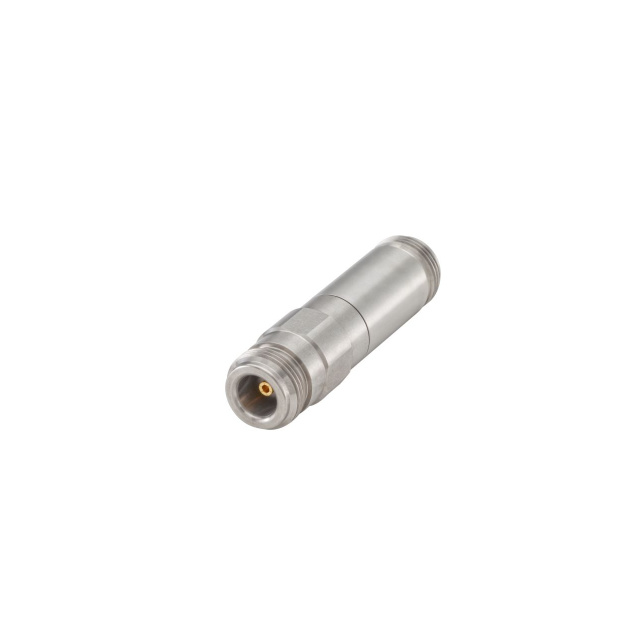

PRECISION N TYPE CALIBRATION ADA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
05K121-K20S3
ActiveRosenberger
PRECISION N TYPE CALIBRATION ADA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 05K121-K20S3 |
|---|---|
| Accessory Type | Calibration Adapter |
| For Use With/Related Products | Network Analyzer |
| Specifications | Jack, N Type 50Ohm Jack |
| Type | Specialized |
05K121 Series
| Part | Impedance | Dielectric Material | Center Contact Material | Contact Termination | Voltage Rating | Connector Type | Frequency - Max [Max] | Body Material | Connector Style | Center Contact Plating | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Number of Ports | Shield Termination | Accessory Type | Specifications | Type | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Rosenberger | 50 Ohms | Polyphenylene Ether (PPE) | Beryllium Copper | Solder | 335 V | Female Socket Jack | 18 GHz | Stainless Steel | N Type | Gold | Push-Pull | 85 °C | -40 °C | 500 | 1 | Solder | ||||
Rosenberger | Calibration Adapter | Jack N Type 50Ohm Jack | Specialized | Network Analyzer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 917.16 | |
Description
General part information
05K121 Series
Specialized Calibration Adapter for use with Network Analyzer
