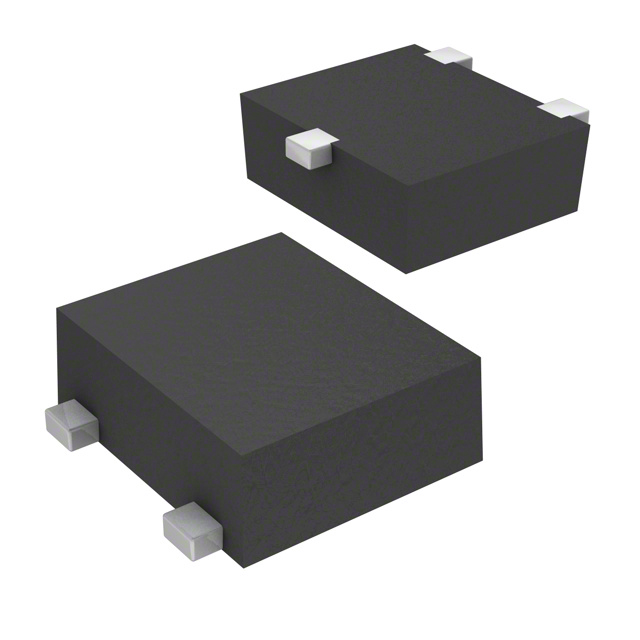

MT3S113TU,LF

Active

Toshiba Semiconductor and Storage

RF TRANS NPN 5.3V 11.2GHZ UFM

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

RF TRANS NPN 5.3V 11.2GHZ UFM

Technical Specifications

Parameters and characteristics for this part

Specification	MT3S113TU,LF

Current - Collector (Ic) (Max) [Max]	100 mA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	200
Frequency - Transition	11.2 GHz
Gain	12.5 dBi
Mounting Type	Surface Mount
Noise Figure (dB Typ @ f)	1.45 dB
Operating Temperature	150 °C
Power - Max [Max]	900 mW
Supplier Device Package	UFM
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max) [Max]	5.3 V

Part	Current - Collector (Ic) (Max) [Max]	Operating Temperature	Package / Case	Mounting Type	Frequency - Transition	Power - Max [Max]	Gain	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Transistor Type	Supplier Device Package	Noise Figure (dB Typ @ f)	Voltage - Collector Emitter Breakdown (Max) [Max]
Toshiba Semiconductor and Storage MT3S113(TE85L,F)	100 mA	150 °C	SC-59 SOT-23-3 TO-236-3	Surface Mount	12.5 GHz	800 mW	11.8 dB	200	NPN	S-Mini	1.45 dB	5.3 V
Toshiba Semiconductor and Storage MT3S113TU,LF	100 mA	150 °C		Surface Mount	11.2 GHz	900 mW	12.5 dBi	200	NPN	UFM	1.45 dB	5.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Transistor NPN 5.3V 100mA 11.2GHz 900mW Surface Mount UFM
