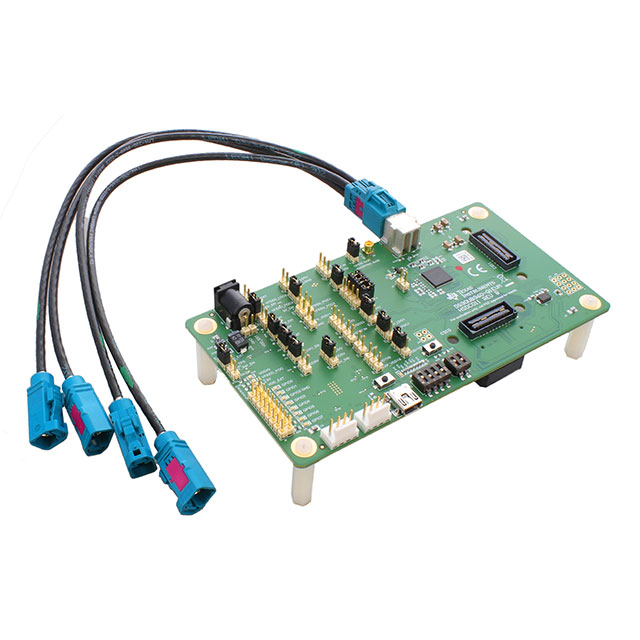

DS90UB960-Q1EVM
ActiveEVAL MODULE FOR DS90UB960
Deep-Dive with AI
Search across all available documentation for this part.
DS90UB960-Q1EVM
ActiveEVAL MODULE FOR DS90UB960
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS90UB960-Q1EVM | DS90UB960 Series |
|---|---|---|
| Contents | Board(s) | Board(s) |
| Data Rate | - | 4.16 Gbps |
| Function | Deserializer | Deserializer |
| Grade | - | Automotive |
| Input Type | - | FPD-Link III, LVDS |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 105 ░C |
| Output Type | - | CSI-2, MIPI |
| Package / Case | - | 64-VFQFN Exposed Pad |
| Qualification | - | AEC-Q100 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 64-VQFN (9x9) |
| Type | Interface | Interface |
| Utilized IC / Part | DS90UB960-Q1 | DS90UB960-Q1 |
| Voltage - Supply | - | 1.155 - 1.89 V |
| Voltage - Supply | - | 1.045 - 1.71 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
DS90UB960 Series
Quad 2 MP camera hub FPD-Link III deserializer with dual CSI-2 output ports
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Function | Qualification | Package / Case | Data Rate | Supplier Device Package | Output Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Input Type | Grade | Contents | Utilized IC / Part | Supplied Contents | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments DS90UB960WRTDTQ1The DS90UB960-Q1 is a versatile sensor hub capable of connecting serialized sensor data received from four independent video data streams through a FPD-Link III interface. When paired with a DS90UB953-Q1 serializer, the DS90UB960-Q1 receives data from sensors such as imagers supporting full HD 1080p/2MP resolution at 60-Hz frame rates. Data is received and aggregated into a MIPI CSI-2 compliant output for interconnect to a downstream processor. A second MIPI CSI-2 output port is available to provide additional bandwidth, or offers a second replicated output for data-logging and parallel processing.
The DS90UB960-Q1 includes four FPD-Link III deserializers, each enabling a connection through cost-effective 50-Ω single-ended coaxial or 100-Ω differential STP cables. The receive equalizers automatically adapt to compensate for cable loss characteristics, including degradation over time.
Each of the FPD-Link III interfaces also includes a separate low latency bidirectional control channel that continuously conveys I2C, GPIOs, and other control information. General-purpose I/O signals such as those required for camera synchronization and diagnostics features also make use of this bidirectional control channel.
The DS90UB960-Q1 is AEC-Q100 qualified for automotive applications and is offered in a cost-effective and space-saving 64-pin VQFN package.
The DS90UB960-Q1 is a versatile sensor hub capable of connecting serialized sensor data received from four independent video data streams through a FPD-Link III interface. When paired with a DS90UB953-Q1 serializer, the DS90UB960-Q1 receives data from sensors such as imagers supporting full HD 1080p/2MP resolution at 60-Hz frame rates. Data is received and aggregated into a MIPI CSI-2 compliant output for interconnect to a downstream processor. A second MIPI CSI-2 output port is available to provide additional bandwidth, or offers a second replicated output for data-logging and parallel processing.
The DS90UB960-Q1 includes four FPD-Link III deserializers, each enabling a connection through cost-effective 50-Ω single-ended coaxial or 100-Ω differential STP cables. The receive equalizers automatically adapt to compensate for cable loss characteristics, including degradation over time.
Each of the FPD-Link III interfaces also includes a separate low latency bidirectional control channel that continuously conveys I2C, GPIOs, and other control information. General-purpose I/O signals such as those required for camera synchronization and diagnostics features also make use of this bidirectional control channel.
The DS90UB960-Q1 is AEC-Q100 qualified for automotive applications and is offered in a cost-effective and space-saving 64-pin VQFN package. | 1.155 V, 1.89 V | 1.045 V, 1.71 V | Deserializer | AEC-Q100 | 64-VFQFN Exposed Pad | 4.16 Gbps | 64-VQFN (9x9) | CSI-2, MIPI | Surface Mount | -40 °C | 105 ░C | FPD-Link III, LVDS | Automotive | ||||
Deserializer | Board(s) | DS90UB960-Q1 | Board(s) | Interface |
Description
General part information
DS90UB960 Series
The DS90UB960-Q1 is a versatile sensor hub capable of connecting serialized sensor data received from four independent video data streams through a FPD-Link III interface. When paired with a DS90UB953-Q1 serializer, the DS90UB960-Q1 receives data from sensors such as imagers supporting full HD 1080p/2MP resolution at 60-Hz frame rates. Data is received and aggregated into a MIPI CSI-2 compliant output for interconnect to a downstream processor. A second MIPI CSI-2 output port is available to provide additional bandwidth, or offers a second replicated output for data-logging and parallel processing.
The DS90UB960-Q1 includes four FPD-Link III deserializers, each enabling a connection through cost-effective 50-Ω single-ended coaxial or 100-Ω differential STP cables. The receive equalizers automatically adapt to compensate for cable loss characteristics, including degradation over time.
Each of the FPD-Link III interfaces also includes a separate low latency bidirectional control channel that continuously conveys I2C, GPIOs, and other control information. General-purpose I/O signals such as those required for camera synchronization and diagnostics features also make use of this bidirectional control channel.
