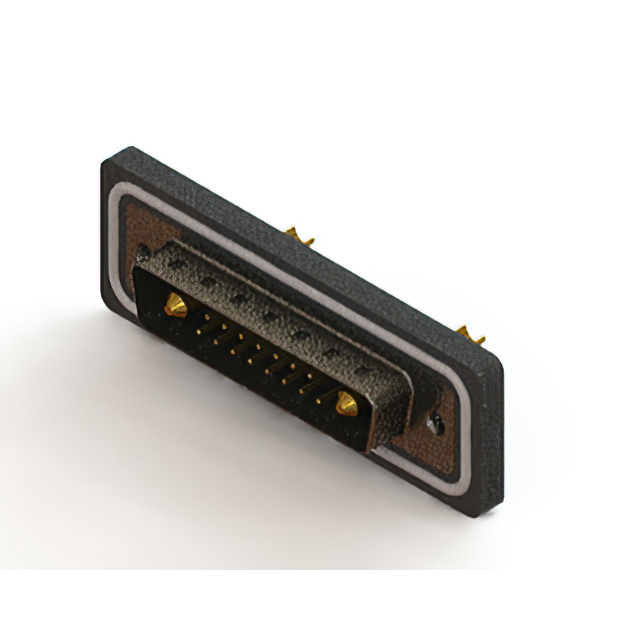

627W17W2322-2NA
ActiveEDAC Inc.
CONN D-SUB PLUG 17POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
627W17W2322-2NA
ActiveEDAC Inc.
CONN D-SUB PLUG 17POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 627W17W2322-2NA |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 5 A, 20 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents, Shielded |
| Flange Feature | Housing/Shell (M3) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions [custom] | 15 |
| Number of Positions [custom] | 2 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 17W2, 3 (DB, B) |
| Voltage Rating | 125 VDC |
627W17W Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout | Shell Material, Finish | Contact Type | Material Flammability Rating | Features | Number of Rows | Voltage Rating | Connector Type | Number of Positions [custom] | Number of Positions [custom] | Contact Finish | Color | Ingress Protection | Termination | Connector Style | Dielectric Material | Contact Material | Flange Feature | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -25 °C | 85 °C | 17W2 3 (DB B) | Nickel Plated Steel | Signal and Power | UL94 V-0 | Board Lock Grounding Indents Shielded | 2 | 125 VDC | Male Pins Plug | 15 | 2 | Gold | Black | IP67 - Dust Tight Waterproof | Solder | Combo D-Sub | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Board Side (M3) | 10A 5A | 0.76 Ám | 30 Áin | Panel Mount Through Hole | |
EDAC Inc. | -25 °C | 85 °C | 17W2 3 (DB B) | Nickel Plated Steel | Signal and Power | UL94 V-0 | Board Lock Grounding Indents Shielded | 2 | 125 VDC | Male Pins Plug | 15 | 2 | Gold | Black | IP67 - Dust Tight Waterproof | Solder | Combo D-Sub | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 4-40 Board Side | 0.76 Ám | 30 Áin | Panel Mount Through Hole | 5 A 30 A | |
EDAC Inc. | -25 °C | 85 °C | 17W2 3 (DB B) | Nickel Plated Steel | Signal and Power | UL94 V-0 | Grounding Indents Shielded | 2 | 125 VDC | Male Pins Plug | 15 | 2 | Gold | Black | IP67 - Dust Tight Waterproof | Solder | Combo D-Sub | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Housing/Shell (M3) | 10A 5A | 0.76 Ám | 30 Áin | Panel Mount Through Hole | |
EDAC Inc. | -25 °C | 85 °C | 17W2 3 (DB B) | Nickel Plated Steel | Signal and Power | UL94 V-0 | Board Lock Grounding Indents Shielded | 2 | 125 VDC | Male Pins Plug | 15 | 2 | Gold | Black | IP67 - Dust Tight Waterproof | Solder | Combo D-Sub | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 4-40 Board Side | 0.38 µm | 15 µin | Panel Mount Through Hole | 5 A 40 A | |
EDAC Inc. | -25 °C | 85 °C | 17W2 3 (DB B) | Nickel Plated Steel | Signal and Power | UL94 V-0 | Board Lock Grounding Indents Shielded | 2 | 125 VDC | Male Pins Plug | 15 | 2 | Gold | Black | IP67 - Dust Tight Waterproof | Solder | Combo D-Sub | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Board Side (M3) | 0.76 Ám | 30 Áin | Panel Mount Through Hole | 5 A 30 A | |
EDAC Inc. | -25 °C | 85 °C | 17W2 3 (DB B) | Nickel Plated Steel | Signal and Power | UL94 V-0 | Grounding Indents Shielded | 2 | 125 VDC | Male Pins Plug | 15 | 2 | Gold | Black | IP67 - Dust Tight Waterproof | Combo D-Sub | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Housing/Shell (4-40) | 0.76 Ám | 30 Áin | Panel Mount Through Hole | 5 A 30 A | ||
EDAC Inc. | -25 °C | 85 °C | 17W2 3 (DB B) | Nickel Plated Steel | Signal and Power | UL94 V-0 | Grounding Indents Shielded | 2 | 125 VDC | Male Pins Plug | 15 | 2 | Gold | Black | IP67 - Dust Tight Waterproof | Solder | Combo D-Sub | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Housing/Shell (4-40) | 0.76 Ám | 30 Áin | Panel Mount Through Hole | 5 A 30 A | |
EDAC Inc. | -25 °C | 85 °C | 17W2 3 (DB B) | Nickel Plated Steel | Signal and Power | UL94 V-0 | Grounding Indents Shielded | 2 | 125 VDC | Male Pins Plug | 15 | 2 | Gold | Black | IP67 - Dust Tight Waterproof | Combo D-Sub | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Housing/Shell (M3) | 0.38 µm | 15 µin | Panel Mount Through Hole | 5 A 20 A | ||
EDAC Inc. | -25 °C | 85 °C | 17W2 3 (DB B) | Nickel Plated Steel | Signal and Power | UL94 V-0 | Grounding Indents Shielded | 2 | 125 VDC | Male Pins Plug | 15 | 2 | Gold | Black | IP67 - Dust Tight Waterproof | Solder | Combo D-Sub | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Housing/Shell (4-40) | 10A 5A | 0.76 Ám | 30 Áin | Panel Mount Through Hole | |
EDAC Inc. | -25 °C | 85 °C | 17W2 3 (DB B) | Nickel Plated Steel | Signal and Power | UL94 V-0 | Board Lock Grounding Indents Shielded | 2 | 125 VDC | Male Pins Plug | 15 | 2 | Gold | Black | IP67 - Dust Tight Waterproof | Solder | Combo D-Sub | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Board Side (M3) | 0.76 Ám | 30 Áin | Panel Mount Through Hole | 5 A 40 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 200 | $ 18.73 | |
Description
General part information
627W17W Series
17 (15 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
