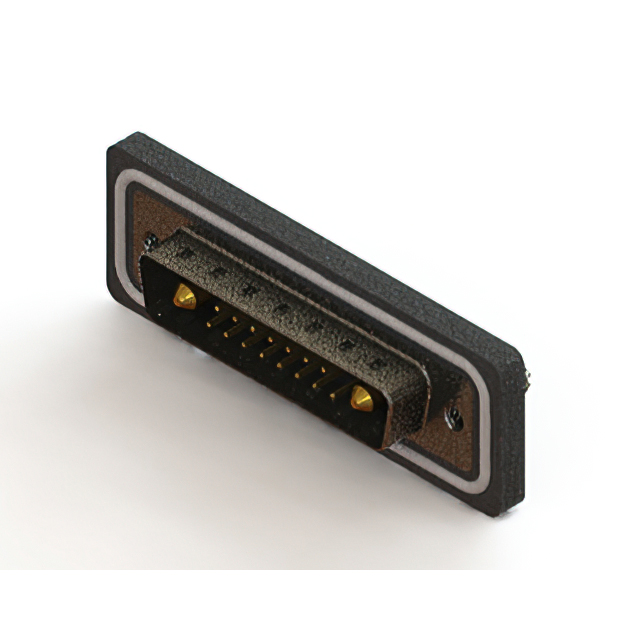

627W17W2324-4N5

Active

EDAC Inc.

CONN D-SUB PLG 17POS PNL MT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627W17W2324-4N5

Active

EDAC Inc.

CONN D-SUB PLG 17POS PNL MT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627W17W2324-4N5

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Board Side, 4-40
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	15
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	17W2, 3 (DB, B)
Termination	Solder
Voltage Rating	125 VDC

627W17W Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout	Shell Material, Finish	Contact Type	Material Flammability Rating	Features	Number of Rows	Voltage Rating	Connector Type	Number of Positions [custom]	Number of Positions [custom]	Contact Finish	Color	Ingress Protection	Termination	Connector Style	Dielectric Material	Contact Material	Flange Feature	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Current Rating (Amps)
EDAC Inc. 627W17W2624-1ND	-25 °C	85 °C	17W2 3 (DB B)	Nickel Plated Steel	Signal and Power	UL94 V-0	Board Lock Grounding Indents Shielded	2	125 VDC	Male Pins Plug	15	2	Gold	Black	IP67 - Dust Tight Waterproof	Solder	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Board Side (M3)	10A 5A	0.76 Ám	30 Áin	Panel Mount Through Hole
EDAC Inc. 627W17W2624-3N5	-25 °C	85 °C	17W2 3 (DB B)	Nickel Plated Steel	Signal and Power	UL94 V-0	Board Lock Grounding Indents Shielded	2	125 VDC	Male Pins Plug	15	2	Gold	Black	IP67 - Dust Tight Waterproof	Solder	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	4-40 Board Side		0.76 Ám	30 Áin	Panel Mount Through Hole	5 A 30 A
EDAC Inc. 627W17W2624-1NA	-25 °C	85 °C	17W2 3 (DB B)	Nickel Plated Steel	Signal and Power	UL94 V-0	Grounding Indents Shielded	2	125 VDC	Male Pins Plug	15	2	Gold	Black	IP67 - Dust Tight Waterproof	Solder	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Housing/Shell (M3)	10A 5A	0.76 Ám	30 Áin	Panel Mount Through Hole
EDAC Inc. 627W17W2324-4N5	-25 °C	85 °C	17W2 3 (DB B)	Nickel Plated Steel	Signal and Power	UL94 V-0	Board Lock Grounding Indents Shielded	2	125 VDC	Male Pins Plug	15	2	Gold	Black	IP67 - Dust Tight Waterproof	Solder	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	4-40 Board Side		0.38 µm	15 µin	Panel Mount Through Hole	5 A 40 A
EDAC Inc. 627W17W2624-3ND	-25 °C	85 °C	17W2 3 (DB B)	Nickel Plated Steel	Signal and Power	UL94 V-0	Board Lock Grounding Indents Shielded	2	125 VDC	Male Pins Plug	15	2	Gold	Black	IP67 - Dust Tight Waterproof	Solder	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Board Side (M3)		0.76 Ám	30 Áin	Panel Mount Through Hole	5 A 30 A
EDAC Inc. 627W17W2622-3N2	-25 °C	85 °C	17W2 3 (DB B)	Nickel Plated Steel	Signal and Power	UL94 V-0	Grounding Indents Shielded	2	125 VDC	Male Pins Plug	15	2	Gold	Black	IP67 - Dust Tight Waterproof		Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Housing/Shell (4-40)		0.76 Ám	30 Áin	Panel Mount Through Hole	5 A 30 A
EDAC Inc. 627W17W2624-3N2	-25 °C	85 °C	17W2 3 (DB B)	Nickel Plated Steel	Signal and Power	UL94 V-0	Grounding Indents Shielded	2	125 VDC	Male Pins Plug	15	2	Gold	Black	IP67 - Dust Tight Waterproof	Solder	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Housing/Shell (4-40)		0.76 Ám	30 Áin	Panel Mount Through Hole	5 A 30 A
EDAC Inc. 627W17W2322-2NA	-25 °C	85 °C	17W2 3 (DB B)	Nickel Plated Steel	Signal and Power	UL94 V-0	Grounding Indents Shielded	2	125 VDC	Male Pins Plug	15	2	Gold	Black	IP67 - Dust Tight Waterproof		Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Housing/Shell (M3)		0.38 µm	15 µin	Panel Mount Through Hole	5 A 20 A
EDAC Inc. 627W17W2624-1N2	-25 °C	85 °C	17W2 3 (DB B)	Nickel Plated Steel	Signal and Power	UL94 V-0	Grounding Indents Shielded	2	125 VDC	Male Pins Plug	15	2	Gold	Black	IP67 - Dust Tight Waterproof	Solder	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Housing/Shell (4-40)	10A 5A	0.76 Ám	30 Áin	Panel Mount Through Hole
EDAC Inc. 627W17W2624-4ND	-25 °C	85 °C	17W2 3 (DB B)	Nickel Plated Steel	Signal and Power	UL94 V-0	Board Lock Grounding Indents Shielded	2	125 VDC	Male Pins Plug	15	2	Gold	Black	IP67 - Dust Tight Waterproof	Solder	Combo D-Sub	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Board Side (M3)		0.76 Ám	30 Áin	Panel Mount Through Hole	5 A 40 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 18.73

Description

General part information

627W17W Series

17 (15 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
