357-078-559-204
ActiveEDAC Inc.

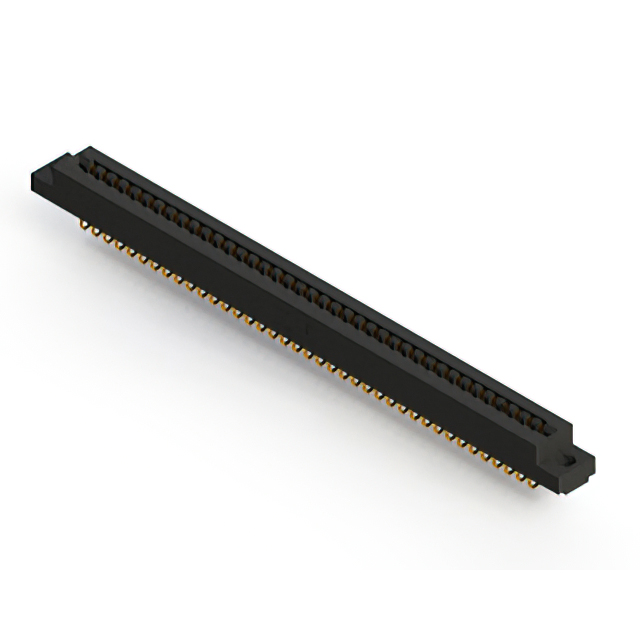

CONN EDGE DUAL FMALE 78POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-078-559-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 78POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-078-559-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 78 |
| Number of Positions/Bay/Row [custom] | 39 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
357-078 Series
...
| Part | Mounting Type | Color | Contact Type | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Rows | Card Type | Contact Material | Read Out | Termination | Pitch [x] | Pitch [x] | Flange Feature | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Features | Termination Rows | Number of Positions | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | Black | Semi Bellows | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Gold | 2 | Non Specified - Dual Edge | Copper Alloy | Dual | Wire Wrap | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Polyester Thermoplastic | -40 °C | 105 ░C | Card Guides | 2 | 78 | 39 | ||
EDAC Inc. | Through Hole Right Angle | Black | Semi Bellows | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Gold | 2 | Non Specified - Dual Edge | Copper Alloy | Dual | Solder | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 78 | 39 | 3.96 mm | 0.156 in | |
EDAC Inc. | Through Hole Right Angle | Black | Semi Bellows | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Gold | 2 | Non Specified - Dual Edge | Copper Alloy | Dual | Solder Wire Wrap | 0.156 in | 3.96 mm | Flush Mount Side Opening Unthreaded | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 78 | 39 | 3.25 mm | 0.128 " | |
EDAC Inc. | Board Edge Straddle Mount | Black | Semi Bellows | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Gold | 2 | Non Specified - Dual Edge | Copper Alloy | Dual | Solder | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | -40 °C | 105 ░C | Card Extender | 2 | 78 | 39 | 3.96 mm | 0.156 in |
EDAC Inc. | Through Hole | Black | Semi Bellows | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Gold | 2 | Non Specified - Dual Edge | Copper Alloy | Dual | Solder | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 78 | 39 | 3.96 mm | 0.156 in | |
EDAC Inc. | Through Hole Right Angle | Black | Semi Bellows | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Gold | 2 | Non Specified - Dual Edge | Copper Alloy | Dual | Solder Wire Wrap | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 78 | 39 | 3.25 mm | 0.128 " | |
EDAC Inc. | Through Hole Right Angle | Black | Semi Bellows | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Tin | 2 | Non Specified - Dual Edge | Copper Alloy | Dual | Solder | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 78 | 39 | |||||
EDAC Inc. | Through Hole Right Angle | Black | Semi Bellows | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Gold | 2 | Non Specified - Dual Edge | Copper Alloy | Dual | Solder Wire Wrap | 0.156 in | 3.96 mm | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 78 | 39 | 3.96 mm | 0.156 in | |
EDAC Inc. | Through Hole | Black | Semi Bellows | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Gold | 2 | Non Specified - Dual Edge | Copper Alloy | Dual | Solder | 0.156 in | 3.96 mm | Floating Bobbin Flush Mount | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 78 | 39 | 2.95 mm | 0.116 in | |
EDAC Inc. | Through Hole | Black | Semi Bellows | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Gold | 2 | Non Specified - Dual Edge | Copper Alloy | Dual | Wire Wrap | 0.156 in | 3.96 mm | Floating Bobbin Flush Mount | Polyester Thermoplastic | -40 °C | 105 ░C | 2 | 78 | 39 | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
357-078 Series
78 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
Documents
Technical documentation and resources
