357-078-556-204

Active

EDAC Inc.

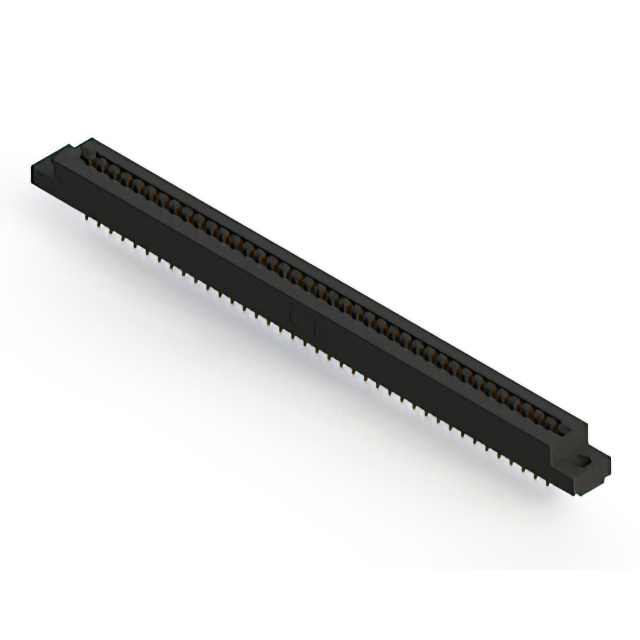

3.96MM CLAMP BOARD 78P -40℃~+105℃ P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

357-078-556-204

Active

EDAC Inc.

3.96MM CLAMP BOARD 78P -40℃~+105℃ P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	357-078-556-204

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Extender
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	78
Number of Positions/Bay/Row [custom]	39
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

357-078 Series

...

Part	Mounting Type	Color	Contact Type	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows	Card Type	Contact Material	Read Out	Termination	Pitch [x]	Pitch [x]	Flange Feature	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Features	Termination Rows	Number of Positions	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 357-078-540-278	Through Hole	Black	Semi Bellows	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Gold	2	Non Specified - Dual Edge	Copper Alloy	Dual	Wire Wrap	0.156 in	3.96 mm	4-40 Flush Mount Threaded Insert Top Opening	Polyester Thermoplastic	-40 °C	105 ░C	Card Guides	2	78	39
EDAC Inc. 357-078-559-204	Through Hole Right Angle	Black	Semi Bellows	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Gold	2	Non Specified - Dual Edge	Copper Alloy	Dual	Solder	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Polyester Thermoplastic	-40 °C	105 ░C		2	78	39	3.96 mm	0.156 in
EDAC Inc. 357-078-558-212	Through Hole Right Angle	Black	Semi Bellows	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Gold	2	Non Specified - Dual Edge	Copper Alloy	Dual	Solder Wire Wrap	0.156 in	3.96 mm	Flush Mount Side Opening Unthreaded	Polyester Thermoplastic	-40 °C	105 ░C		2	78	39	3.25 mm	0.128 "
EDAC Inc. 357-078-556-204	Board Edge Straddle Mount	Black	Semi Bellows	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Gold	2	Non Specified - Dual Edge	Copper Alloy	Dual	Solder	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Polyester Thermoplastic	-40 °C	105 ░C	Card Extender	2	78	39	3.96 mm	0.156 in
EDAC Inc. 357-078-520-204	Through Hole	Black	Semi Bellows	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Gold	2	Non Specified - Dual Edge	Copper Alloy	Dual	Solder	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Polyester Thermoplastic	-40 °C	105 ░C		2	78	39	3.96 mm	0.156 in
EDAC Inc. 357-078-558-202	Through Hole Right Angle	Black	Semi Bellows	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Gold	2	Non Specified - Dual Edge	Copper Alloy	Dual	Solder Wire Wrap	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Polyester Thermoplastic	-40 °C	105 ░C		2	78	39	3.25 mm	0.128 "
EDAC Inc. 357-078-458-207	Through Hole Right Angle	Black	Semi Bellows	Female	1.37 mm	0.054 "	1.78 mm	0.07 in			Tin	2	Non Specified - Dual Edge	Copper Alloy	Dual	Solder	0.156 in	3.96 mm	Flush Mount M3 Threaded Insert Top Opening	Polyester Thermoplastic	-40 °C	105 ░C		2	78	39
EDAC Inc. 357-078-558-204	Through Hole Right Angle	Black	Semi Bellows	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Gold	2	Non Specified - Dual Edge	Copper Alloy	Dual	Solder Wire Wrap	0.156 in	3.96 mm	Flush Mount Top Opening Unthreaded	Polyester Thermoplastic	-40 °C	105 ░C		2	78	39	3.96 mm	0.156 in
EDAC Inc. 357-078-522-203	Through Hole	Black	Semi Bellows	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Gold	2	Non Specified - Dual Edge	Copper Alloy	Dual	Solder	0.156 in	3.96 mm	Floating Bobbin Flush Mount	Polyester Thermoplastic	-40 °C	105 ░C		2	78	39	2.95 mm	0.116 in
EDAC Inc. 357-078-542-203	Through Hole	Black	Semi Bellows	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Gold	2	Non Specified - Dual Edge	Copper Alloy	Dual	Wire Wrap	0.156 in	3.96 mm	Floating Bobbin Flush Mount	Polyester Thermoplastic	-40 °C	105 ░C		2	78	39	2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 18.47
LCSC	Piece	1	$ 20.03
		200	$ 7.75
		500	$ 7.48
		1000	$ 7.34
Newark	Each	1	$ 21.45
		100	$ 12.53
		250	$ 11.35
		500	$ 10.02
		1000	$ 8.08

Description

General part information

357-078 Series

78 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
