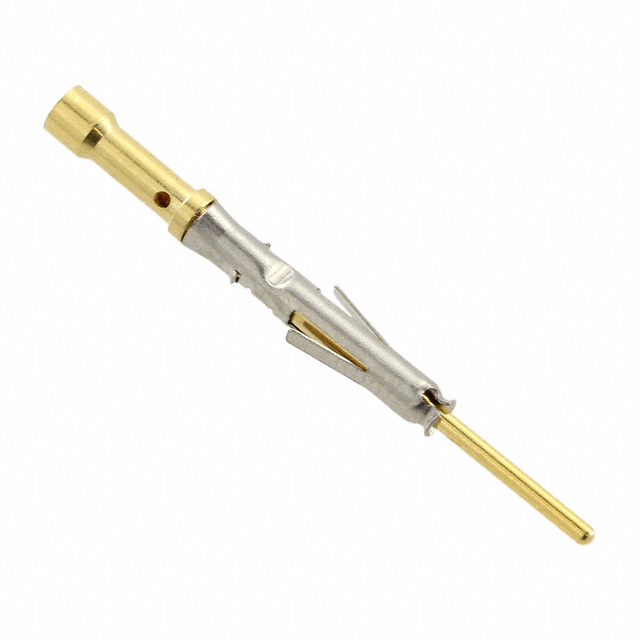

MP20W23F
ActiveAmphenol Sine Systems Corp
CONTACT PIN 20-22AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
MP20W23F
ActiveAmphenol Sine Systems Corp
CONTACT PIN 20-22AWG CRIMP GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MP20W23F |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Size | 20 |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Termination Finish | Copper Alloy |
| Type | Signal, Machined |
| Wire Gauge or Range - AWG [Max] | 22 AWG |
| Wire Gauge or Range - AWG [Min] | 20 AWG |
| Wire Gauge or Range - mm² [Max] | 0.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.34 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.55 | |
| 10 | $ 1.35 | |||
| 25 | $ 1.30 | |||
| 50 | $ 1.27 | |||
| 100 | $ 1.21 | |||
| 250 | $ 1.09 | |||
| 500 | $ 1.01 | |||
| 1000 | $ 0.86 | |||
| 2500 | $ 0.81 | |||
Description
General part information
MP20 Series
Pin Contact 20-22 AWG Size 20 Crimp Gold
