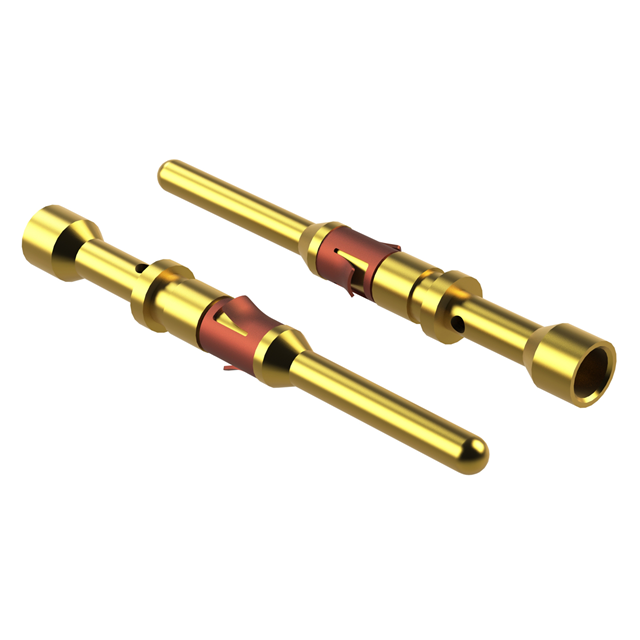

MP20M23G5

Active

Amphenol Sine Systems Corp

PIN CONTACT, MACHINED, SIZE 16,

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

PIN CONTACT, MACHINED, SIZE 16,

Technical Specifications

Parameters and characteristics for this part

Part	Type	Contact Material	Contact Size	Contact Finish	Termination Finish	Contact Type	Contact Finish Thickness	Contact Termination	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]
Amphenol Sine Systems Corp MP20W12E09F	Machined	Copper Alloy	20	Gold	Nickel	Pin	Flash	Solder
Amphenol Sine Systems Corp MP20M23G5	Machined Signal	Copper Alloy	16	Gold	Nickel	Pin		Crimp	0.5 mm²	0.34 mm²	0.127 µm	5 µin	20 AWG	22 AWG
Amphenol Sine Systems Corp MP20W23F	Machined Signal	Copper Alloy	20	Gold	Copper Alloy	Pin	Flash	Crimp	0.5 mm²	0.34 mm²			20 AWG	22 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1000	$ 0.75

General part information

Pin Contact 20-22 AWG Size 16 Crimp Gold

Technical documentation and resources
