Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IDEAL-P	- Series

Display Characters - Height	-	0.787 in
Display Characters - Height	-	20 mm
Display Characters - Height [z]	14 mm	10 - 14 mm
Display Characters - Height [z]	0.551 in	0.394 - 0.551 in
Display Type	LED - White Characters	LED - White Characters, LED - Tri-Color Bar Graph, LCD - Red Characters, LED - Red Characters
Features	Excitation Supply	Excitation Supply
Ingress Protection	-	IP65 - Dust Tight, Water Resistant
Measuring Range	-	20 - 200 mA
Measuring Range	-	Multiple
Measuring Range [Max]	20 mA, 200 V, 1300 °C	5 - 1300 mA
Measuring Range [Min]	-20 mA, -200 V, -150 °C	-200 - 100 mA
Measuring Type	RTD, Thermocouple, Process	RTD, Thermocouple, Process, Current, Voltage, Resistance, Frequency
Number of Characters Per Row	4	4 - 5
Operating Temperature	-	-10 °C
Operating Temperature	-	60 °C
Output Type	-	Relay (2)
Panel Cutout Dimensions	-	45 - 92 mm
Panel Cutout Dimensions	-	22 - 45 mm
Termination Style	Connector	Connector
Type	Temperature Meter, Process	Temperature Meter, Process, Ammeter, Multifunction Meter, Volmeter, Frequency Meter
Voltage - Supply [Max]	265 VAC	265 - 300 VAC
Voltage - Supply [Min]	20 VAC	11 - 100 VAC

- Series

PROCESS/TEMPERATURE METER

Part	Number of Characters Per Row	Termination Style	Features	Display Characters - Height [z]	Display Characters - Height [z]	Type	Display Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Measuring Range [Min]	Measuring Range [Max]	Measuring Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Measuring Range	Measuring Range	Output Type	Display Characters - Height [custom]	Display Characters - Height [custom]
DITEL IDEAL-P	4	Connector	Excitation Supply	14 mm	0.551 in	Process, Temperature Meter	LED - White Characters	20 VAC	265 VAC	-200 V, -150 °C, -20 mA	20 mA, 200 V, 1300 °C	Process, RTD, Thermocouple
DITEL MICRA-M	5	Connector		14 mm	0.551 in	Temperature Meter	LED - Tri-Color Bar Graph	85 VAC, 100 VDC	265 VAC, 300 VDC	-150 °C	1300 °C	RTD, Thermocouple	92 mm	45 mm	IP65 - Dust Tight, Water Resistant	-10 °C	60 °C
DITEL PICA40-LP	4	Connector		10 mm	0.394 in	Ammeter	LCD - Red Characters					Current	45 mm	22 mm	IP65 - Dust Tight, Water Resistant	-10 °C	60 °C
DITEL PICA-P	4	Connector		10 mm	0.394 in	Multifunction Meter	LCD - Red Characters	85 VAC, 100 VDC	265 VAC, 300 VDC			Current, Process, Voltage	45 mm	22 mm	IP65 - Dust Tight, Water Resistant	-10 °C	60 °C	20 mA, 20 mV, 200 V
DITEL JR20-P	4	Connector	Excitation Supply			Multifunction Meter	LED - Red Characters	11 V, 20 VAC	265 VDC, 265 VAC			Process, Resistance, Thermocouple	92 mm	45 mm	IP65 - Dust Tight, Water Resistant	-10 °C	60 °C		Multiple	Relay (2)	0.787 in	20 mm
DITEL JR-P	4	Connector	Excitation Supply	14 mm	0.551 in	Multifunction Meter	LED - Red Characters	11 V, 20 VAC	265 VDC, 265 VAC			Process, Resistance, Thermocouple	92 mm	45 mm	IP65 - Dust Tight, Water Resistant	-10 °C	60 °C		Multiple
DITEL PICA-E	4	Connector		10 mm	0.394 in	Ammeter, Volmeter	LCD - Red Characters	85 VAC, 100 VDC	265 VAC, 300 VDC	1 A, 100 VAC/VDC	5 A, 600 VAC/VDC	Current, Voltage	45 mm	22 mm	IP65 - Dust Tight, Water Resistant	-10 °C	60 °C
DITEL MICRA-D	5	Connector		14 mm	0.551 in	Frequency Meter	LED - Tri-Color Bar Graph	85 VAC, 100 VDC	265 VAC, 300 VDC	0 kHz	20 kHz	Frequency	92 mm	45 mm	IP65 - Dust Tight, Water Resistant	-10 °C	60 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 188.00

Description

General part information

- Series

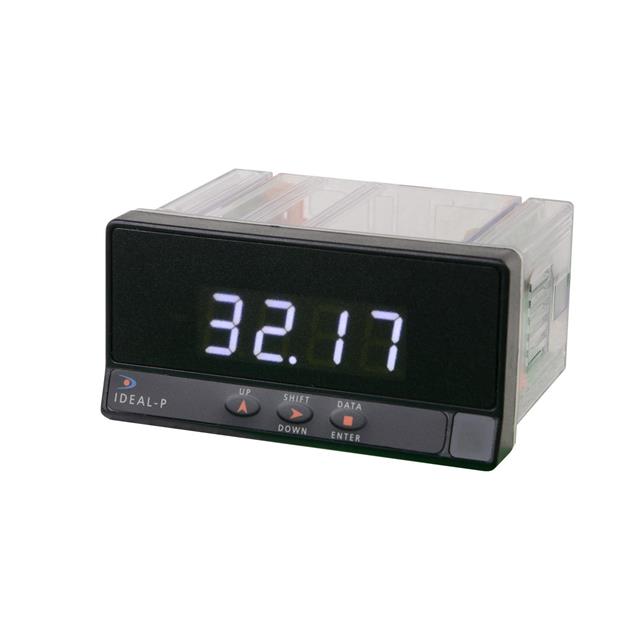

Process, Temperature Meter LED - White Characters Display Panel Mount
