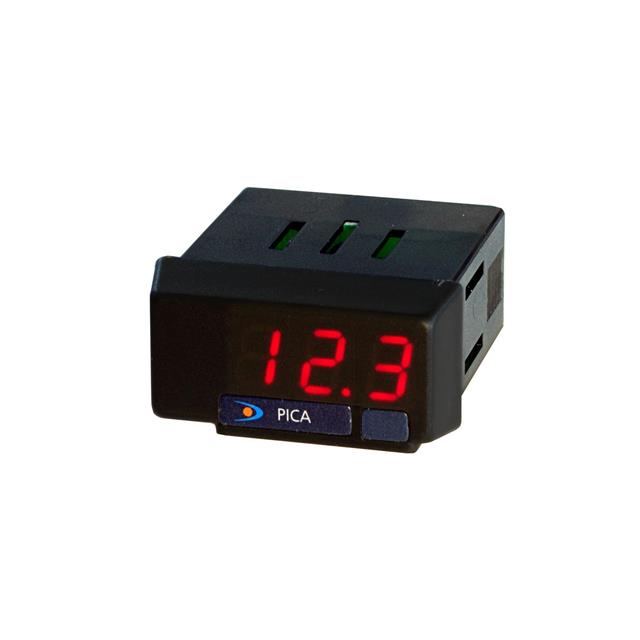

PICA40-LP

Active

DITEL

LOOP POWERED 4-20 MA PANEL METER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PICA40-LP

Active

DITEL

LOOP POWERED 4-20 MA PANEL METER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	2	$ 117.00

Description

General part information

- Series

Ammeter LCD - Red Characters Display Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PICA40-LP	- Series

Display Characters - Height	-	0.787 in
Display Characters - Height	-	20 mm
Display Characters - Height [z]	0.394 in	0.394 - 0.551 in
Display Characters - Height [z]	10 mm	10 - 14 mm
Display Type	LCD - Red Characters	LED - White Characters, LED - Tri-Color Bar Graph, LCD - Red Characters, LED - Red Characters
Features	-	Excitation Supply
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Measuring Range	-	-200 - 100 mA
Measuring Range	-	5 - 1300 mA
Measuring Range	-	20 - 200 mA
Measuring Range	-	Multiple
Measuring Type	Current	RTD, Thermocouple, Process, Current, Voltage, Resistance, Frequency
Number of Characters Per Row	4	4 - 5
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-10 °C	-10 °C
Output Type	-	Relay (2)
Panel Cutout Dimensions [x]	45 mm	45 - 92 mm
Panel Cutout Dimensions [y]	22 mm	22 - 45 mm
Termination Style	Connector	Connector
Type	Ammeter	Temperature Meter, Process, Ammeter, Multifunction Meter, Volmeter, Frequency Meter
Voltage - Supply	-	11 - 100 VAC
Voltage - Supply	-	265 - 300 VAC

- Series

PROCESS/TEMPERATURE METER

Part	Number of Characters Per Row	Termination Style	Features	Display Characters - Height [z]	Display Characters - Height [z]	Type	Display Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Measuring Range [Min]	Measuring Range [Max]	Measuring Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Measuring Range	Measuring Range	Output Type	Display Characters - Height [custom]	Display Characters - Height [custom]
DITEL IDEAL-P	4	Connector	Excitation Supply	14 mm	0.551 in	Process, Temperature Meter	LED - White Characters	20 VAC	265 VAC	-200 V, -150 °C, -20 mA	20 mA, 200 V, 1300 °C	Process, RTD, Thermocouple
DITEL MICRA-M	5	Connector		14 mm	0.551 in	Temperature Meter	LED - Tri-Color Bar Graph	85 VAC, 100 VDC	265 VAC, 300 VDC	-150 °C	1300 °C	RTD, Thermocouple	92 mm	45 mm	IP65 - Dust Tight, Water Resistant	-10 °C	60 °C
DITEL PICA40-LP	4	Connector		10 mm	0.394 in	Ammeter	LCD - Red Characters					Current	45 mm	22 mm	IP65 - Dust Tight, Water Resistant	-10 °C	60 °C
DITEL PICA-P	4	Connector		10 mm	0.394 in	Multifunction Meter	LCD - Red Characters	85 VAC, 100 VDC	265 VAC, 300 VDC			Current, Process, Voltage	45 mm	22 mm	IP65 - Dust Tight, Water Resistant	-10 °C	60 °C	20 mA, 20 mV, 200 V
DITEL JR20-P	4	Connector	Excitation Supply			Multifunction Meter	LED - Red Characters	11 V, 20 VAC	265 VDC, 265 VAC			Process, Resistance, Thermocouple	92 mm	45 mm	IP65 - Dust Tight, Water Resistant	-10 °C	60 °C		Multiple	Relay (2)	0.787 in	20 mm
DITEL JR-P	4	Connector	Excitation Supply	14 mm	0.551 in	Multifunction Meter	LED - Red Characters	11 V, 20 VAC	265 VDC, 265 VAC			Process, Resistance, Thermocouple	92 mm	45 mm	IP65 - Dust Tight, Water Resistant	-10 °C	60 °C		Multiple
DITEL PICA-E	4	Connector		10 mm	0.394 in	Ammeter, Volmeter	LCD - Red Characters	85 VAC, 100 VDC	265 VAC, 300 VDC	1 A, 100 VAC/VDC	5 A, 600 VAC/VDC	Current, Voltage	45 mm	22 mm	IP65 - Dust Tight, Water Resistant	-10 °C	60 °C
DITEL MICRA-D	5	Connector		14 mm	0.551 in	Frequency Meter	LED - Tri-Color Bar Graph	85 VAC, 100 VDC	265 VAC, 300 VDC	0 kHz	20 kHz	Frequency	92 mm	45 mm	IP65 - Dust Tight, Water Resistant	-10 °C	60 °C
