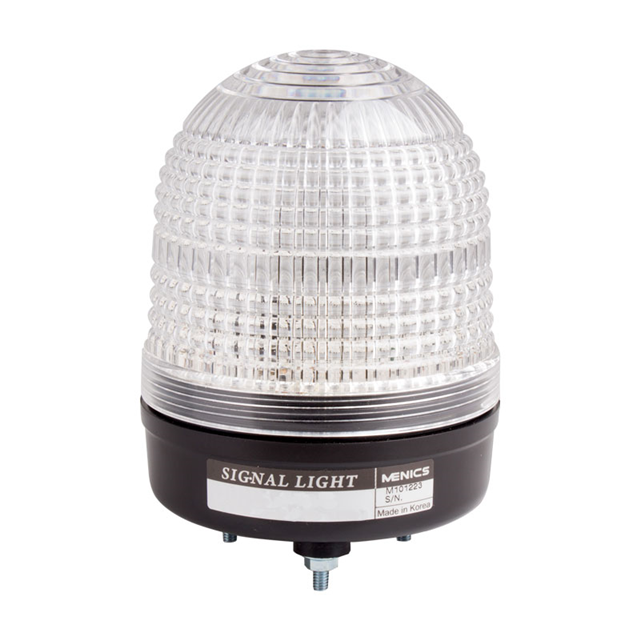

MS86T-R00-C

Active

Menics

COMPLETE UNIT CLEAR LED FLASH

Search across all available documentation for this part.

Active

Menics

COMPLETE UNIT CLEAR LED FLASH

Technical Specifications

Parameters and characteristics for this part

Specification	MS86T-R00-C

Function - Lighting	Steady, Flashing, Rotating
Ingress Protection	IP65 - Dust Tight, Water Resistant
Light Color	Clear
Number of Stacks	1
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply [Max]	24 VAC
Voltage - Supply [Min]	12 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Light Color	Termination Style	Number of Stacks	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Ingress Protection	Function - Lighting
Menics MS86T-R00-G	-20 C	40 °C	Green	Wire Leads	1	24 VAC	12 VAC	Complete Unit	IP65 - Dust Tight Water Resistant	Flashing Rotating Steady
Menics MS86T-RFF-G	-20 C	40 °C	Green	Wire Leads	1	240 VAC	90 VAC	Complete Unit	IP65 - Dust Tight Water Resistant	Flashing Rotating Steady
Menics MS86T-B00-Y	-20 C	40 °C	Yellow	Wire Leads	1	24 VAC	12 VAC	Complete Unit	IP65 - Dust Tight Water Resistant	Flashing Rotating Steady
Menics MS86T-BFF-G	-20 C	40 °C	Green	Wire Leads	1	240 VAC	90 VAC	Complete Unit	IP65 - Dust Tight Water Resistant	Flashing Rotating Steady
Menics MS86T-RFF-B	-20 C	40 °C		Wire Leads	1	240 VAC	90 VAC	Complete Unit	IP65 - Dust Tight Water Resistant	Flashing Rotating Steady
Menics MS86T-BFF-C	-20 C	40 °C	Clear	Wire Leads	1	240 VAC	90 VAC	Complete Unit	IP65 - Dust Tight Water Resistant	Flashing Rotating Steady
Menics MS86T-B00-C	-20 C	40 °C	Clear	Wire Leads	1	24 VAC	12 VAC	Complete Unit	IP65 - Dust Tight Water Resistant	Flashing Rotating Steady
Menics MS86T-R00-Y	-20 C	40 °C	Yellow	Wire Leads	1	24 VAC	12 VAC	Complete Unit	IP65 - Dust Tight Water Resistant	Flashing Rotating Steady
Menics MS86T-R00-C	-20 C	40 °C	Clear	Wire Leads	1	24 VAC	12 VAC	Complete Unit	IP65 - Dust Tight Water Resistant	Flashing Rotating Steady
Menics MS86T-B00-B	-20 C	40 °C		Wire Leads	1	24 VAC	12 VAC	Complete Unit	IP65 - Dust Tight Water Resistant	Flashing Rotating Steady

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 132.00
