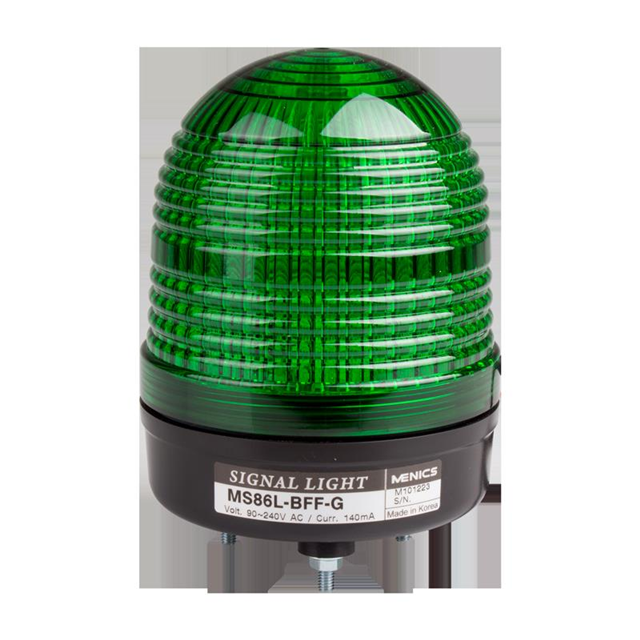

Specification	MS86T-BFF-G

Function - Lighting	Flashing, Rotating, Steady
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Lamp Type	LED
Light Color	Green
Number of Stacks	1
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	-20 °C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply (Maximum)	240 VAC
Voltage - Supply (Minimum)	90 VAC

MS86T Series

Part	Light Color	Function - Lighting	Operating Temperature (Max)	Operating Temperature (Min)	Number of Stacks	Ingress Protection IP Rating	Ingress Protection Description	Lamp Type	Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Termination Style
Menics MS86T-R00-G	Green	Flashing Rotating Steady	40 °C	-20 °C	1	IP65	Dust Tight Water Resistant	LED	Complete Unit	12 VDC	24 VAC	Wire Leads
Menics MS86T-RFF-G	Green	Flashing Rotating Steady	40 °C	-20 °C	1	IP65	Dust Tight Water Resistant	LED	Complete Unit	90 VAC	240 VAC	Wire Leads
Menics MS86T-BFF-R	Red	Flashing Rotating Steady	40 °C	-20 °C	1	IP65	Dust Tight Water Resistant	LED	Complete Unit	90 VAC	240 VAC	Wire Leads
Menics MS86T-B00-Y	Yellow	Flashing Rotating Steady	40 °C	-20 °C	1	IP65	Dust Tight Water Resistant	LED	Complete Unit	12 VDC	24 VAC	Wire Leads
Menics MS86T-B00-R	Red	Flashing Rotating Steady	40 °C	-20 °C	1	IP65	Dust Tight Water Resistant	LED	Complete Unit	12 VDC	24 VAC	Wire Leads
Menics MS86T-BFF-G	Green	Flashing Rotating Steady	40 °C	-20 °C	1	IP65	Dust Tight Water Resistant	LED	Complete Unit	90 VAC	240 VAC	Wire Leads
Menics MS86T-RFF-B	Blue	Flashing Rotating Steady	40 °C	-20 °C	1	IP65	Dust Tight Water Resistant	LED	Complete Unit	90 VAC	240 VAC	Wire Leads
Menics MS86T-BFF-C	Clear	Flashing Rotating Steady	40 °C	-20 °C	1	IP65	Dust Tight Water Resistant	LED	Complete Unit	90 VAC	240 VAC	Wire Leads
Menics MS86T-B00-C	Clear	Flashing Rotating Steady	40 °C	-20 °C	1	IP65	Dust Tight Water Resistant	LED	Complete Unit	12 VDC	24 VAC	Wire Leads
Menics MS86T-R00-Y	Yellow	Flashing Rotating Steady	40 °C	-20 °C	1	IP65	Dust Tight Water Resistant	LED	Complete Unit	12 VDC	24 VAC	Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Mounting Options (Menics ASG, MS86 Series)

MS86T-BFF-G | Datasheet
