ADC121S051CISD/NOPB
ActiveTexas Instruments

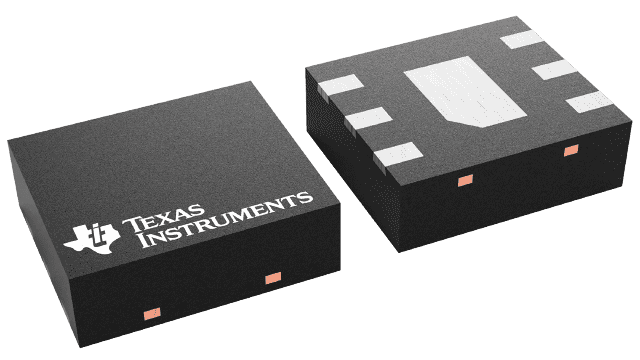

SINGLE CHANNEL, 200 TO 500 KSPS, 12-BIT A/D CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
ADC121S051CISD/NOPB
ActiveTexas Instruments
SINGLE CHANNEL, 200 TO 500 KSPS, 12-BIT A/D CONVERTER
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ADC121S051CISD/NOPB | ADC121S051 Series |
|---|---|---|
| Architecture | SAR | SAR |
| Configuration | S/H-ADC | S/H-ADC |
| Data Interface | SPI, DSP | SPI, DSP |
| Input Type | Single Ended | Single Ended |
| Mounting Type | Surface Mount | Surface Mount |
| Number of A/D Converters | 1 | 1 |
| Number of Bits | 12 | 12 |
| Number of Inputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | - | SOT-23-6 |
| Ratio - S/H:ADC | 1:1 | 1:1 |
| Reference Type | Supply | Supply |
| Sampling Rate (Per Second) | 500 kPer Second | 500 kPer Second |
| Supplier Device Package | 6-WSON (2.2x2.5) | SOT-23-6, 6-WSON (2.2x2.5) |
| Voltage - Supply, Analog [Max] | 5.25 V | 5.25 V |
| Voltage - Supply, Analog [Min] | 2.7 V | 2.7 V |
| Voltage - Supply, Digital [Max] | 5.25 V | 5.25 V |
| Voltage - Supply, Digital [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
ADC121S051 Series
Single Channel, 200 to 500 ksps, 12-Bit A/D Converter
| Part | Mounting Type | Architecture | Number of Inputs | Operating Temperature [Min] | Operating Temperature [Max] | Sampling Rate (Per Second) | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Package / Case | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Input Type | Number of A/D Converters | Ratio - S/H:ADC | Configuration | Supplier Device Package | Reference Type | Data Interface | Number of Bits |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments ADC121S051CIMF/NOPBThe ADC121S051 is a low-power, single channel CMOS 12-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC121S051 is fully specified over a sample rate range of 200 ksps to 500 ksps. The converter is based upon a successive-approximation register architecture with an internal track-and-hold circuit.
The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE, and many common DSP serial interfaces.
The ADC121S051 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3.6V or +5.25V supply is 1.7 mW and 8.7 mW, respectively. The power-down feature reduces the power consumption to as low as 2.6 µW using a +5.25V supply.
The ADC121S051 is packaged in 6-lead WSON and SOT-23 packages. Operation over the industrial temperature range of −40°C to +85°C is ensured.
The ADC121S051 is a low-power, single channel CMOS 12-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC121S051 is fully specified over a sample rate range of 200 ksps to 500 ksps. The converter is based upon a successive-approximation register architecture with an internal track-and-hold circuit.
The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE, and many common DSP serial interfaces.
The ADC121S051 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3.6V or +5.25V supply is 1.7 mW and 8.7 mW, respectively. The power-down feature reduces the power consumption to as low as 2.6 µW using a +5.25V supply.
The ADC121S051 is packaged in 6-lead WSON and SOT-23 packages. Operation over the industrial temperature range of −40°C to +85°C is ensured. | Surface Mount | SAR | 1 | -40 °C | 85 °C | 500 kPer Second | 2.7 V | 5.25 V | SOT-23-6 | 5.25 V | 2.7 V | Single Ended | 1 | 1:1 | S/H-ADC | SOT-23-6 | Supply | DSP, SPI | 12 |
Texas Instruments ADC121S051CIMFX/NOPBThe ADC121S051 is a low-power, single channel CMOS 12-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC121S051 is fully specified over a sample rate range of 200 ksps to 500 ksps. The converter is based upon a successive-approximation register architecture with an internal track-and-hold circuit.
The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE, and many common DSP serial interfaces.
The ADC121S051 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3.6V or +5.25V supply is 1.7 mW and 8.7 mW, respectively. The power-down feature reduces the power consumption to as low as 2.6 µW using a +5.25V supply.
The ADC121S051 is packaged in 6-lead WSON and SOT-23 packages. Operation over the industrial temperature range of −40°C to +85°C is ensured.
The ADC121S051 is a low-power, single channel CMOS 12-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC121S051 is fully specified over a sample rate range of 200 ksps to 500 ksps. The converter is based upon a successive-approximation register architecture with an internal track-and-hold circuit.
The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE, and many common DSP serial interfaces.
The ADC121S051 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3.6V or +5.25V supply is 1.7 mW and 8.7 mW, respectively. The power-down feature reduces the power consumption to as low as 2.6 µW using a +5.25V supply.
The ADC121S051 is packaged in 6-lead WSON and SOT-23 packages. Operation over the industrial temperature range of −40°C to +85°C is ensured. | Surface Mount | SAR | 1 | -40 °C | 85 °C | 500 kPer Second | 2.7 V | 5.25 V | SOT-23-6 | 5.25 V | 2.7 V | Single Ended | 1 | 1:1 | S/H-ADC | SOT-23-6 | Supply | DSP, SPI | 12 |
Texas Instruments ADC121S051CISD/NOPBThe ADC121S051 is a low-power, single channel CMOS 12-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC121S051 is fully specified over a sample rate range of 200 ksps to 500 ksps. The converter is based upon a successive-approximation register architecture with an internal track-and-hold circuit.
The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE, and many common DSP serial interfaces.
The ADC121S051 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3.6V or +5.25V supply is 1.7 mW and 8.7 mW, respectively. The power-down feature reduces the power consumption to as low as 2.6 µW using a +5.25V supply.
The ADC121S051 is packaged in 6-lead WSON and SOT-23 packages. Operation over the industrial temperature range of −40°C to +85°C is ensured.
The ADC121S051 is a low-power, single channel CMOS 12-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC121S051 is fully specified over a sample rate range of 200 ksps to 500 ksps. The converter is based upon a successive-approximation register architecture with an internal track-and-hold circuit.
The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE, and many common DSP serial interfaces.
The ADC121S051 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3.6V or +5.25V supply is 1.7 mW and 8.7 mW, respectively. The power-down feature reduces the power consumption to as low as 2.6 µW using a +5.25V supply.
The ADC121S051 is packaged in 6-lead WSON and SOT-23 packages. Operation over the industrial temperature range of −40°C to +85°C is ensured. | Surface Mount | SAR | 1 | -40 °C | 85 °C | 500 kPer Second | 2.7 V | 5.25 V | 5.25 V | 2.7 V | Single Ended | 1 | 1:1 | S/H-ADC | 6-WSON (2.2x2.5) | Supply | DSP, SPI | 12 |
Description
General part information
ADC121S051 Series
The ADC121S051 is a low-power, single channel CMOS 12-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC121S051 is fully specified over a sample rate range of 200 ksps to 500 ksps. The converter is based upon a successive-approximation register architecture with an internal track-and-hold circuit.
The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE, and many common DSP serial interfaces.
The ADC121S051 operates with a single supply that can range from +2.7V to +5.25V. Normal power consumption using a +3.6V or +5.25V supply is 1.7 mW and 8.7 mW, respectively. The power-down feature reduces the power consumption to as low as 2.6 µW using a +5.25V supply.
