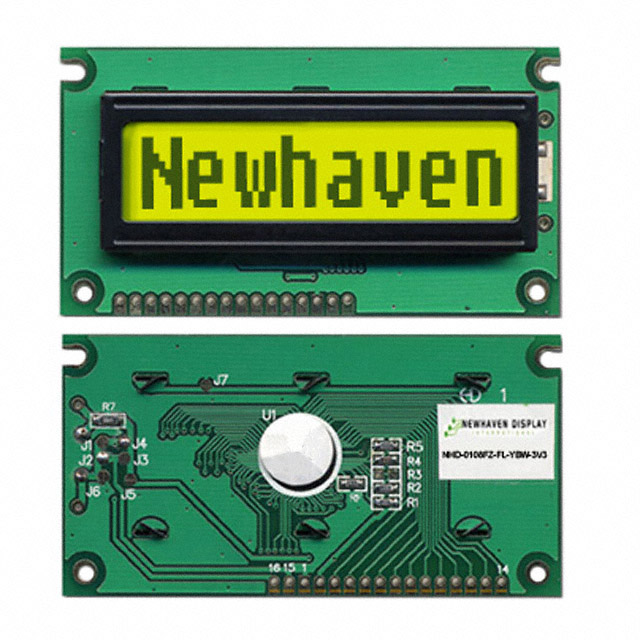

NHD-0108FZ-FL-YBW-3V3

Obsolete

Newhaven Display Intl

LCD MOD 8DIG 8X1 TRANSFL YLW/GRN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLCD Safe Handling Procedure Datasheet +1

NHD-0108FZ-FL-YBW-3V3

Obsolete

Newhaven Display Intl

LCD MOD 8DIG 8X1 TRANSFL YLW/GRN

Deep-Dive with AI

DocumentsLCD Safe Handling Procedure Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NHD-0108FZ-FL-YBW-3V3	NHD-0108 Series

Background Color	Green	Gray, Green
Backlight	-	LED - White, Without Backlight
Character Format [x]	5 Dots	5 Dots
Character Format [y]	8 Dots	8 Dots
Character Size	-	4.2 - 5.02 mm
Character Size	-	7.28 - 7.71 mm
Character Size	-	10.8 mm
Character Size [y]	6.45 mm	3.4 - 6.5 mm
Character Size [z]	10.75 mm	7.1 - 10.75 mm
Controller Type	-	SPLC780D, ST7066U
Display Format [x]	8	8
Display Format [y]	1	1
Display Mode	Transflective	Transflective, Reflective
Display Type	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic
Dot Size	-	0.8 mm
Dot Size	-	0.92 mm
Dot Size [x]	1.25 mm	0.6 - 1.3 mm
Dot Size [y]	1.3 mm	0.8 - 1.3 mm
Interface	Parallel	Parallel
Number of Characters	8	8
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline L x W x H [x]	84 mm	53 - 84 mm
Outline L x W x H [y]	44 mm	24.2 - 44 mm
Outline L x W x H [z]	13.5 mm	6.25 - 13.5 mm
Text Color	Gray	Blue, Gray
Viewing Area [x]	64.5 mm	35 - 64.5 mm
Viewing Area [y]	16.4 mm	12.6 - 16.4 mm
Voltage - Supply	-	3.3 V
Voltage - Supply [Max]	3.3 V	3.3 - 5.5 V
Voltage - Supply [Min]	2.7 V	2.7 - 4.7 V

NHD-0108 Series

LCD MOD 8DIG 8X1 TRANSFLECTV WHT

Part	Backlight	Character Size [custom]	Character Size [custom]	Background Color	Voltage - Supply	Display Format [x]	Display Format [y]	Display Mode	Viewing Area [y]	Viewing Area [x]	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Dot Size [custom]	Dot Size [custom]	Text Color	Interface	Display Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Characters	Character Format [y]	Character Format [x]	Controller Type	Character Size [z]	Character Size [y]	Dot Size [x]	Dot Size [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Character Size [x]
Newhaven Display Intl NHD-0108CZ-FSW-GBW-3V3	LED - White	4.2 mm	7.71 mm	Gray	3.3 V	8	1	Transflective	13.8 mm	45.2 mm	27 mm	13 mm	69 mm	0.8 mm	0.92 mm	Blue	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots
Newhaven Display Intl NHD-0108CZ-FSW-GBW-33V3	LED - White	4.2 mm	7.71 mm	Gray	3.3 V	8	1	Transflective	13.5 mm	45 mm	27 mm	13 mm	69 mm	0.8 mm	0.92 mm	Blue	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots	SPLC780D, ST7066U
Newhaven Display Intl NHD-0108BZ-RN-YBW-33V	Without Backlight			Green	3.3 V	8	1	Reflective	12.6 mm	35 mm	24.2 mm	11 mm	53 mm			Blue	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots	SPLC780D, ST7066U	7.1 mm	3.4 mm	0.6 mm	0.8 mm
Newhaven Display Intl NHD-0108BZ-RN-YBW-3V	Without Backlight			Green		8	1	Reflective	12.6 mm	35 mm	24.2 mm	11 mm	53 mm			Gray	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots		7.1 mm	3.4 mm	0.6 mm	0.8 mm	2.7 V	3.3 V
Newhaven Display Intl NHD-0108HZ-FSW-GBW	LED - White	5.02 mm	7.28 mm	Gray		8	1	Transflective	14.7 mm	51.2 mm	33.85 mm	6.25 mm	60.7 mm			Blue	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots	SPLC780D, ST7066U			0.94 mm	0.84 mm	3.1 V	3.5 V
Newhaven Display Intl NHD-0108BZ-FSY-YBW-33V3				Green	3.3 V	8	1	Transflective	12.6 mm	35 mm	24.2 mm	11 mm	53 mm			Blue	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots	SPLC780D, ST7066U	7.1 mm	3.4 mm	0.6 mm	0.8 mm
Newhaven Display Intl NHD-0108BZ-RN-GBW	Without Backlight			Gray		8	1	Reflective	12.6 mm	35 mm	24.2 mm	11 mm	53 mm			Blue	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots	SPLC780D, ST7066U	7.1 mm	3.4 mm	0.6 mm	0.8 mm	4.7 V	5.5 V
Newhaven Display Intl NHD-0108BZ-FSY-YBW-3V3				Green		8	1	Transflective	12.6 mm	35 mm	24.2 mm	11 mm	53 mm			Gray	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots		7.1 mm	3.4 mm	0.6 mm	0.8 mm	2.7 V	3.3 V
Newhaven Display Intl NHD-0108FZ-FL-YBW-3V3				Green		8	1	Transflective	16.4 mm	64.5 mm	44 mm	13.5 mm	84 mm			Gray	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots		10.75 mm	6.45 mm	1.25 mm	1.3 mm	2.7 V	3.3 V
Newhaven Display Intl NHD-0108FZ-RN-YBW	Without Backlight			Green		8	1	Reflective	16.4 mm	64.5 mm	44 mm	9 mm	84 mm			Blue	Parallel	STN - Super-Twisted Nematic	-20 C	70 °C	8	8 Dots	5 Dots	SPLC780D, ST7066U		6.5 mm	1.3 mm	1.3 mm			10.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NHD-0108 Series

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 84.00mm x 44.00mm x 13.50mm
