Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NHD-0108 Series

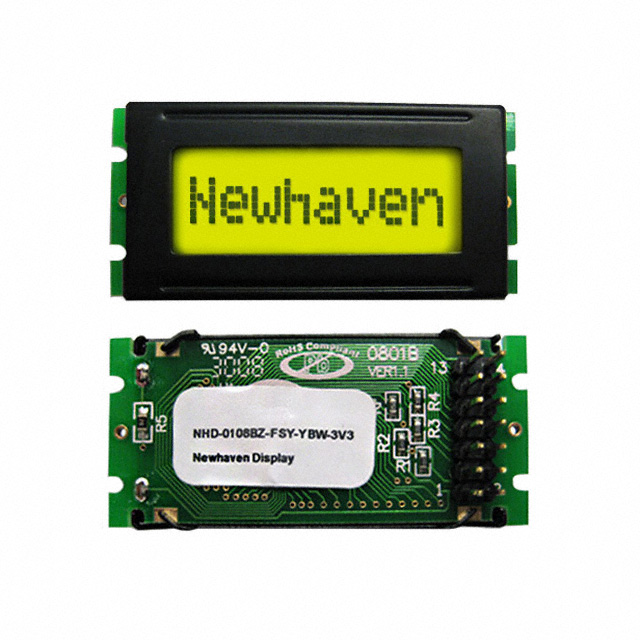

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 53.00mm x 24.20mm x 11.00mm

Documents

Technical documentation and resources

Datasheet

LCD Solvent Precautions

LCD Safe Handling Procedure

Related Document

Specification	NHD-0108BZ-FSY-YBW-3V3	NHD-0108 Series

Background Color	Green	Gray, Green
Backlight	-	LED - White, Without Backlight
Character Format [x]	5 Dots	5 Dots
Character Format [y]	8 Dots	8 Dots
Character Size	-	4.2 - 5.02 mm
Character Size	-	7.28 - 7.71 mm
Character Size	-	10.8 mm
Character Size [y]	3.4 mm	3.4 - 6.5 mm
Character Size [z]	7.1 mm	7.1 - 10.75 mm
Controller Type	-	SPLC780D, ST7066U
Display Format [x]	8	8
Display Format [y]	1	1
Display Mode	Transflective	Transflective, Reflective
Display Type	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic
Dot Size	-	0.8 mm
Dot Size	-	0.92 mm
Dot Size [x]	0.6 mm	0.6 - 1.3 mm
Dot Size [y]	0.8 mm	0.8 - 1.3 mm
Interface	Parallel	Parallel
Number of Characters	8	8
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline L x W x H [x]	53 mm	53 - 84 mm
Outline L x W x H [y]	24.2 mm	24.2 - 44 mm
Outline L x W x H [z]	11 mm	6.25 - 13.5 mm
Text Color	Gray	Blue, Gray
Viewing Area [x]	35 mm	35 - 64.5 mm
Viewing Area [y]	12.6 mm	12.6 - 16.4 mm
Voltage - Supply	-	3.3 V
Voltage - Supply [Max]	3.3 V	3.3 - 5.5 V
Voltage - Supply [Min]	2.7 V	2.7 - 4.7 V
