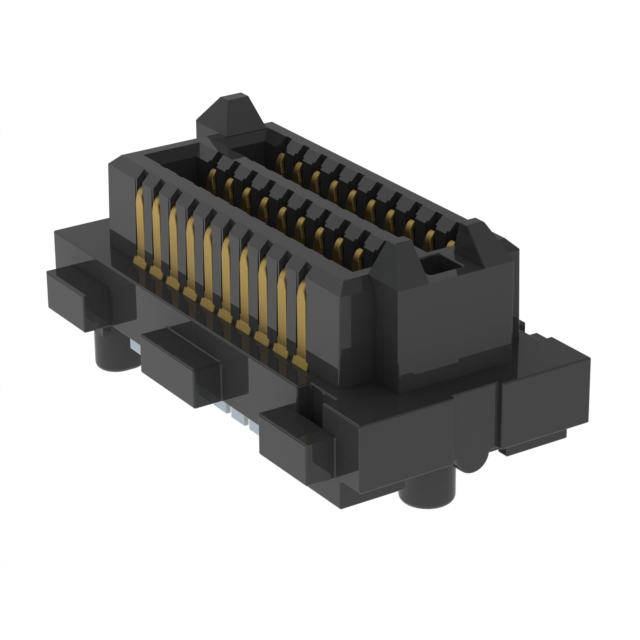

SEAM8-10-S02.0-S-06-3

Active

Samtec Inc.

CONN TERMINAL HS HD ARRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SEAM8-10-S02.0-S-06-3

Active

Samtec Inc.

CONN TERMINAL HS HD ARRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAM8-10-S02.0-S-06-3

Connector Type	High Density Array, Male
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide
Height Above Board [z]	4.55 mm
Height Above Board [z]	0.179 in
Mated Stacking Heights	7 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	6
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

SEAM8-10 Series

Part	Contact Finish	Number of Rows	Features	Connector Type	Number of Positions	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Height Above Board	Height Above Board
Samtec Inc. SEAM8-10-S02.0-S-06-2	Gold	6	Board Guide	High Density Array Male	60	7 mm	4.55 mm	0.179 in	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount
Samtec Inc. SEAM8-10-S05.0-S-06-2-K	Gold	6	Board Guide Pick and Place	High Density Array Male	60	10 mm			0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount	0.297 in	7.54 mm
Samtec Inc. SEAM8-10-S02.0-S-08-2-GP	Gold	8	Board Guide Mating Flange	High Density Array Male	80	7 mm	4.55 mm	0.179 in	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount
Samtec Inc. SEAM8-10-S02.0-S-10-2-GP	Gold	10	Board Guide Mating Flange	High Density Array Male	100	7 mm	4.55 mm	0.179 in	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount
Samtec Inc. SEAM8-10-S02.0-S-08-2	Gold	8	Board Guide	High Density Array Male	80	7 mm	4.55 mm	0.179 in	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount
Samtec Inc. SEAM8-10-S02.0-S-06-3	Gold	6	Board Guide	High Density Array Male	60	7 mm	4.55 mm	0.179 in	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount
Samtec Inc. SEAM8-10-S05.0-S-04-2-K	Gold		Board Guide Pick and Place	High Density Array Male	40	10 mm			0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount	0.297 in	7.54 mm
Samtec Inc. SEAM8-10-S05.0-S-04-3	Gold		Board Guide	High Density Array Male	40	10 mm			0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount	0.297 in	7.54 mm
Samtec Inc. SEAM8-10-S02.0-S-04-2	Gold		Board Guide	High Density Array Male	40	7 mm	4.55 mm	0.179 in	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount
Samtec Inc. SEAM8-10-S02.0-S-08-2-GP-K	Gold	8	Board Guide Mating Flange Pick and Place	High Density Array Male	80	7 mm	4.55 mm	0.179 in	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	475	$ 8.57

Description

General part information

SEAM8-10 Series

60 Position Connector High Density Array, Male Surface Mount Gold
