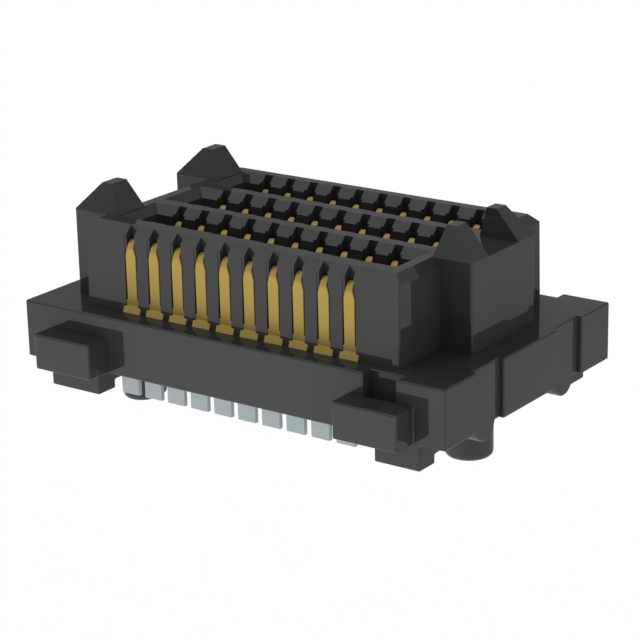

SEAM8-10-S02.0-S-08-2

Active

Samtec Inc.

CONN HD ARRAY PLUG 80P SMD GOLD

Deep-Dive with AI

DocumentsSEAM8-S Print Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SEAM8-10-S02.0-S-08-2

Connector Type	High Density Array, Male
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide
Height Above Board [z]	4.55 mm
Height Above Board [z]	0.179 in
Mated Stacking Heights	7 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	8
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

SEAM8-10 Series

Part	Contact Finish	Number of Rows	Features	Connector Type	Number of Positions	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Height Above Board	Height Above Board
Samtec Inc. SEAM8-10-S02.0-S-06-2	Gold	6	Board Guide	High Density Array Male	60	7 mm	4.55 mm	0.179 in	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount
Samtec Inc. SEAM8-10-S05.0-S-06-2-K	Gold	6	Board Guide Pick and Place	High Density Array Male	60	10 mm			0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount	0.297 in	7.54 mm
Samtec Inc. SEAM8-10-S02.0-S-08-2-GP	Gold	8	Board Guide Mating Flange	High Density Array Male	80	7 mm	4.55 mm	0.179 in	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount
Samtec Inc. SEAM8-10-S02.0-S-10-2-GP	Gold	10	Board Guide Mating Flange	High Density Array Male	100	7 mm	4.55 mm	0.179 in	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount
Samtec Inc. SEAM8-10-S02.0-S-08-2	Gold	8	Board Guide	High Density Array Male	80	7 mm	4.55 mm	0.179 in	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount
Samtec Inc. SEAM8-10-S02.0-S-06-3	Gold	6	Board Guide	High Density Array Male	60	7 mm	4.55 mm	0.179 in	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount
Samtec Inc. SEAM8-10-S05.0-S-04-2-K	Gold		Board Guide Pick and Place	High Density Array Male	40	10 mm			0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount	0.297 in	7.54 mm
Samtec Inc. SEAM8-10-S05.0-S-04-3	Gold		Board Guide	High Density Array Male	40	10 mm			0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount	0.297 in	7.54 mm
Samtec Inc. SEAM8-10-S02.0-S-04-2	Gold		Board Guide	High Density Array Male	40	7 mm	4.55 mm	0.179 in	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount
Samtec Inc. SEAM8-10-S02.0-S-08-2-GP-K	Gold	8	Board Guide Mating Flange Pick and Place	High Density Array Male	80	7 mm	4.55 mm	0.179 in	0.8 mm	0.031 in	0.76 Ám	30 Áin	Surface Mount
