2-1445057-9

Obsolete

TE Connectivity Raychem Cable Protection

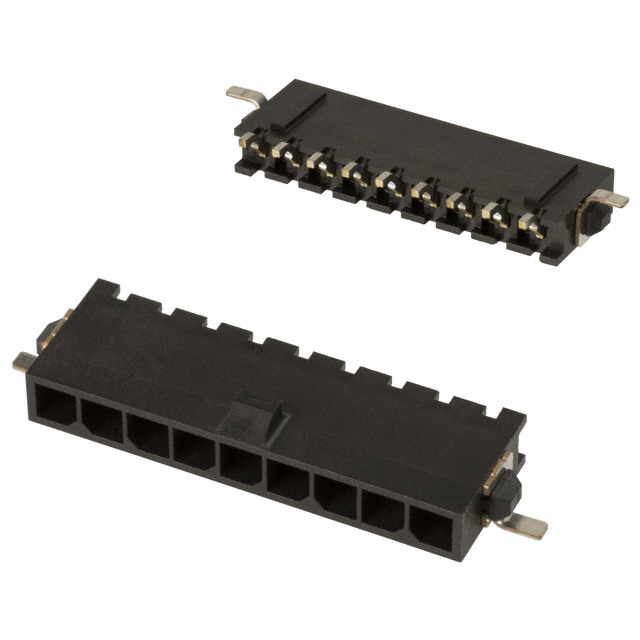

CONN HEADER SMD R/A 9POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

2-1445057-9

Obsolete

TE Connectivity Raychem Cable Protection

CONN HEADER SMD R/A 9POS 3MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-1445057-9

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Black
Insulation Height	0.152 in
Insulation Height	3.85 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

1445057 Series

Part	Material Flammability Rating	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Contact Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Shrouding	Insulation Material	Insulation Color	Insulation Height	Insulation Height	Voltage Rating	Connector Type	Applications	Mounting Type	Features	Number of Positions	Fastening Type	Number of Positions Loaded	Contact Finish - Post	Number of Rows	Style	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating
TE Connectivity Raychem Cable Protection 2-1445057-6	UL94 V-0	Male Pin	2.54 µm	100 µin	Square	Brass	Varies by Wire Gauge	-40 °C	105 ░C	0.118 in	3 mm	Shrouded - 4 Wall	Nylon Polyamide (PA)	Black	0.152 in	3.85 mm	250 VDC	Header	General Purpose	Surface Mount Right Angle	Solder Retention	6	Locking Ramp	All	Tin	1	Board to Cable/Wire	Solder	2.54 çm	100 çin
TE Connectivity Raychem Cable Protection 1445057-5	UL94 V-0	Male Pin	2.54 µm	100 µin	Square	Brass	Varies by Wire Gauge	-40 °C	105 ░C	0.118 in	3 mm	Shrouded - 4 Wall	Nylon Polyamide (PA)	Black	0.152 in	3.85 mm	250 VDC	Header	General Purpose	Surface Mount Right Angle	Solder Retention		Locking Ramp	All	Tin-Lead	1	Board to Cable/Wire	Solder	2.54 çm	100 çin	Tin-Lead
TE Connectivity Raychem Cable Protection 2-1445057-4	UL94 V-0	Male Pin	2.54 µm	100 µin	Square	Brass	Varies by Wire Gauge	-40 °C	105 ░C	0.118 in	3 mm	Shrouded - 4 Wall	Nylon Polyamide (PA)	Black	0.152 in	3.85 mm	250 VDC	Header	General Purpose	Surface Mount Right Angle	Solder Retention	4	Locking Ramp	All	Tin	1	Board to Cable/Wire	Solder	2.54 çm	100 çin
TE Connectivity Raychem Cable Protection 2-1445057-9	UL94 V-0	Male Pin	2.54 µm	100 µin	Square	Brass	Varies by Wire Gauge	-40 °C	105 ░C	0.118 in	3 mm	Shrouded - 4 Wall	Nylon Polyamide (PA)	Black	0.152 in	3.85 mm	250 VDC	Header	General Purpose	Surface Mount Right Angle	Solder Retention	9	Locking Ramp	All	Tin	1	Board to Cable/Wire	Solder	2.54 çm	100 çin
TE Connectivity Raychem Cable Protection 1445057-2	UL94 V-0	Male Pin	2.54 µm	100 µin	Square	Brass	Varies by Wire Gauge	-40 °C	105 ░C	0.118 in	3 mm	Shrouded - 4 Wall	Nylon Polyamide (PA)	Black	0.152 in	3.85 mm	250 VDC	Header	General Purpose	Surface Mount Right Angle	Solder Retention	2	Locking Ramp	All	Tin-Lead	1	Board to Cable/Wire	Solder	2.54 çm	100 çin	Tin-Lead
TE Connectivity Raychem Cable Protection 1445057-4	UL94 V-0	Male Pin	2.54 µm	100 µin	Square	Brass	Varies by Wire Gauge	-40 °C	105 ░C	0.118 in	3 mm	Shrouded - 4 Wall	Nylon Polyamide (PA)	Black	0.152 in	3.85 mm	250 VDC	Header	General Purpose	Surface Mount Right Angle	Solder Retention	4	Locking Ramp	All	Tin-Lead	1	Board to Cable/Wire	Solder	2.54 çm	100 çin	Tin-Lead
TE Connectivity Raychem Cable Protection 2-1445057-3	UL94 V-0	Male Pin	2.54 µm	100 µin	Square	Brass	Varies by Wire Gauge	-40 °C	105 ░C	0.118 in	3 mm	Shrouded - 4 Wall	Nylon Polyamide (PA)	Black	0.152 in	3.85 mm	250 VDC	Header	General Purpose	Surface Mount Right Angle	Solder Retention		Locking Ramp	All	Tin	1	Board to Cable/Wire	Solder	2.54 çm	100 çin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1445057 Series

Connector Header Surface Mount, Right Angle 9 position 0.118" (3.00mm)

Documents

Technical documentation and resources

No documents available
