2-1445057-3
ActiveTE Connectivity Raychem Cable Protection
CONN WIRE TO BOARD HDR 3POWER POS 3MM SOLDER RA SMD TAPE
Deep-Dive with AI
Search across all available documentation for this part.
2-1445057-3
ActiveTE Connectivity Raychem Cable Protection
CONN WIRE TO BOARD HDR 3POWER POS 3MM SOLDER RA SMD TAPE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1445057-3 |
|---|---|
| Applications | General Purpose |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Locking Ramp |
| Features | Solder Retention |
| Insulation Color | Black |
| Insulation Height | 0.152 in |
| Insulation Height | 3.85 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.118 in |
| Pitch - Mating | 3 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Micro MATE-N-LOK Series
...
| Part | Voltage Rating | Termination | Applications | Contact Shape | Insulation Color | Contact Finish - Mating | Row Spacing - Mating | Row Spacing - Mating | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Contact Type | Style | Number of Positions Loaded | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Insulation Material | Contact Material | Contact Length - Post [x] | Contact Length - Post [x] | Material Flammability Rating | Number of Positions | Mounting Type | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Rows | Shrouding | Contact Finish - Post | Features | Number of Positions | Row Spacing [x] | Row Spacing [x] | Note | Pitch [x] | Pitch [x] | Color | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 250 VDC | Solder | General Purpose | Square | Black | Gold | 3 mm | 0.118 in | 0.118 in | 3 mm | Varies by Wire Gauge | Male Pin | Board to Cable/Wire | All | 9.25 mm | 0.364 in | -40 °C | 105 ░C | Header | Nylon Polyamide (PA) | Brass | 3.18 mm | 0.125 in | UL94 V-0 | 10 | Through Hole | Locking Ramp | 30 Áin | 0.76 Ám | 2.54 µm | 100 µin | 2 | Shrouded - 4 Wall | Tin | |||||||||
TE Connectivity Raychem Cable Protection | 250 VDC | Solder | General Purpose | Square | Black | Gold | 3 mm | 0.118 in | 0.118 in | 3 mm | Varies by Wire Gauge | Male Pin | Board to Cable/Wire | All | 7.37 mm | 0.29 in | -40 °C | 105 ░C | Header | Nylon Polyamide (PA) | Brass | UL94 V-0 | 8 | Surface Mount Right Angle | Locking Ramp | 15 µin | 0.38 µm | 2.54 µm | 100 µin | 2 | Shrouded - 4 Wall | Tin | Solder Retention | ||||||||||
TE Connectivity Raychem Cable Protection | 250 VDC | Solder | General Purpose | Square | Black | Gold or Gold-Palladium | 3 mm | 0.118 in | 0.118 in | 3 mm | Varies by Wire Gauge | Male Pin | Board to Cable/Wire | All | 7.37 mm | 0.29 in | -40 °C | 105 ░C | Header | Nylon Polyamide (PA) | Brass | UL94 V-0 | Surface Mount Right Angle | Locking Ramp | 30 Áin | 0.76 Ám | 2.54 µm | 100 µin | 2 | Shrouded - 4 Wall | Tin | Solder Retention | 16 | ||||||||||
TE Connectivity Raychem Cable Protection | 250 VDC | Solder | General Purpose | Square | Black | Gold | 3 mm | 0.118 in | Varies by Wire Gauge | Male Pin | Board to Cable/Wire | All | 7.37 mm | 0.29 in | -40 °C | 105 ░C | Header | Nylon Polyamide (PA) | Brass | UL94 V-0 | 2 | Surface Mount Right Angle | Locking Ramp | 30 Áin | 0.76 Ám | 2.54 µm | 100 µin | 2 | Shrouded - 4 Wall | Tin | |||||||||||||
TE Connectivity Raychem Cable Protection | 250 VDC | Solder | General Purpose | Square | Black | 0.118 in | 3 mm | Varies by Wire Gauge | Male Pin | Board to Cable/Wire | All | 9.25 mm | 0.364 in | -40 °C | 105 ░C | Header | Nylon Polyamide (PA) | Brass | 3.18 mm | 0.125 in | UL94 V-0 | Through Hole | Locking Ramp | 100 çin | 2.54 çm | 2.54 µm | 100 µin | 1 | Shrouded - 4 Wall | Tin | |||||||||||||
TE Connectivity Raychem Cable Protection | 250 VDC | Solder | General Purpose | Square | Black | Gold | 0.118 in | 3 mm | Varies by Wire Gauge | Male Pin | Board to Cable/Wire | All | 9.25 mm | 0.364 in | -40 °C | 105 ░C | Header | Nylon Polyamide (PA) | Brass | 3.18 mm | 0.125 in | UL94 V-0 | 12 | Through Hole | Locking Ramp | 15 µin | 0.38 µm | 2.54 µm | 100 µin | 1 | Shrouded - 4 Wall | Tin | |||||||||||
TE Connectivity Raychem Cable Protection | 250 VDC | Solder | General Purpose | Square | Black | Gold | 3 mm | 0.118 in | 0.118 in | 3 mm | Varies by Wire Gauge | Male Pin | Board to Cable/Wire | All | 9.25 mm | 0.364 in | -40 °C | 105 ░C | Header | Nylon Polyamide (PA) | Brass | UL94 V-0 | 4 | Surface Mount | Locking Ramp | 15 µin | 0.38 µm | 2.54 µm | 100 µin | 2 | Shrouded - 4 Wall | Tin-Lead | Solder Retention | ||||||||||
TE Connectivity Raychem Cable Protection | Male Pin | -40 °C | 105 ░C | Plug | Polyamide (PA66) Nylon 6/6 | 6 | Free Hanging (In-Line) | Locking Ramp | 2 | 0.118 in | 3 mm | Contacts Not Included | 3 mm | 0.118 in | Black | Crimp | |||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 250 VDC | Solder | General Purpose | Square | Black | Gold | 3 mm | 0.118 in | 0.118 in | 3 mm | Varies by Wire Gauge | Male Pin | Board to Cable/Wire | All | 7.37 mm | 0.29 in | -40 °C | 105 ░C | Header | Nylon Polyamide (PA) | Brass | UL94 V-0 | Through Hole Right Angle | Locking Ramp | 15 µin | 0.38 µm | 2.54 µm | 100 µin | 2 | Shrouded - 4 Wall | Tin | 16 | |||||||||||
TE Connectivity Raychem Cable Protection | 250 VDC | Solder | General Purpose | Square | Black | Gold | 3 mm | 0.118 in | 0.118 in | 3 mm | Varies by Wire Gauge | Male Pin | Board to Cable/Wire | All | 9.25 mm | 0.364 in | -40 °C | 105 ░C | Header | Nylon Polyamide (PA) | Brass | 3.18 mm | 0.125 in | UL94 V-0 | Through Hole | Locking Ramp | 15 µin | 0.38 µm | 2.54 µm | 100 µin | 2 | Shrouded - 4 Wall | Tin | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
Micro MATE-N-LOK Series

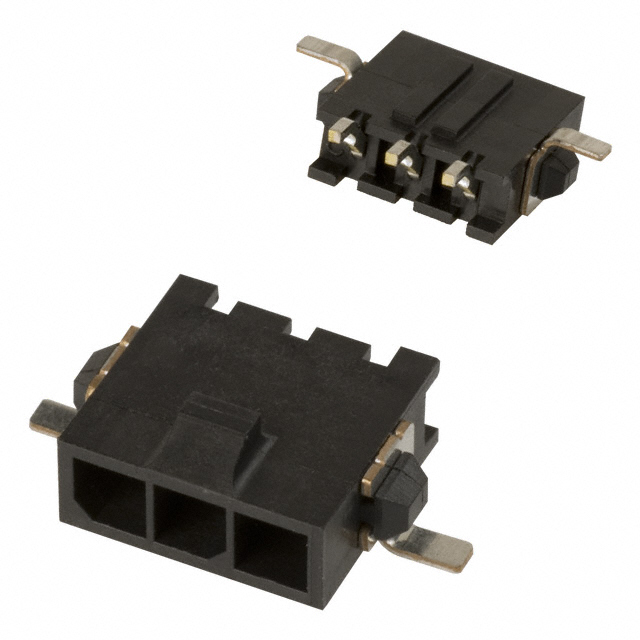

PCB Mount Header, Right Angle, Wire-to-Board, 3 Position, 3 mm [.118 in] Centerline, Fully Shrouded, Tin (Sn), Surface Mount, Power, Micro MATE-N-LOK
