4-794678-6

Active

TE Connectivity Raychem Cable Protection

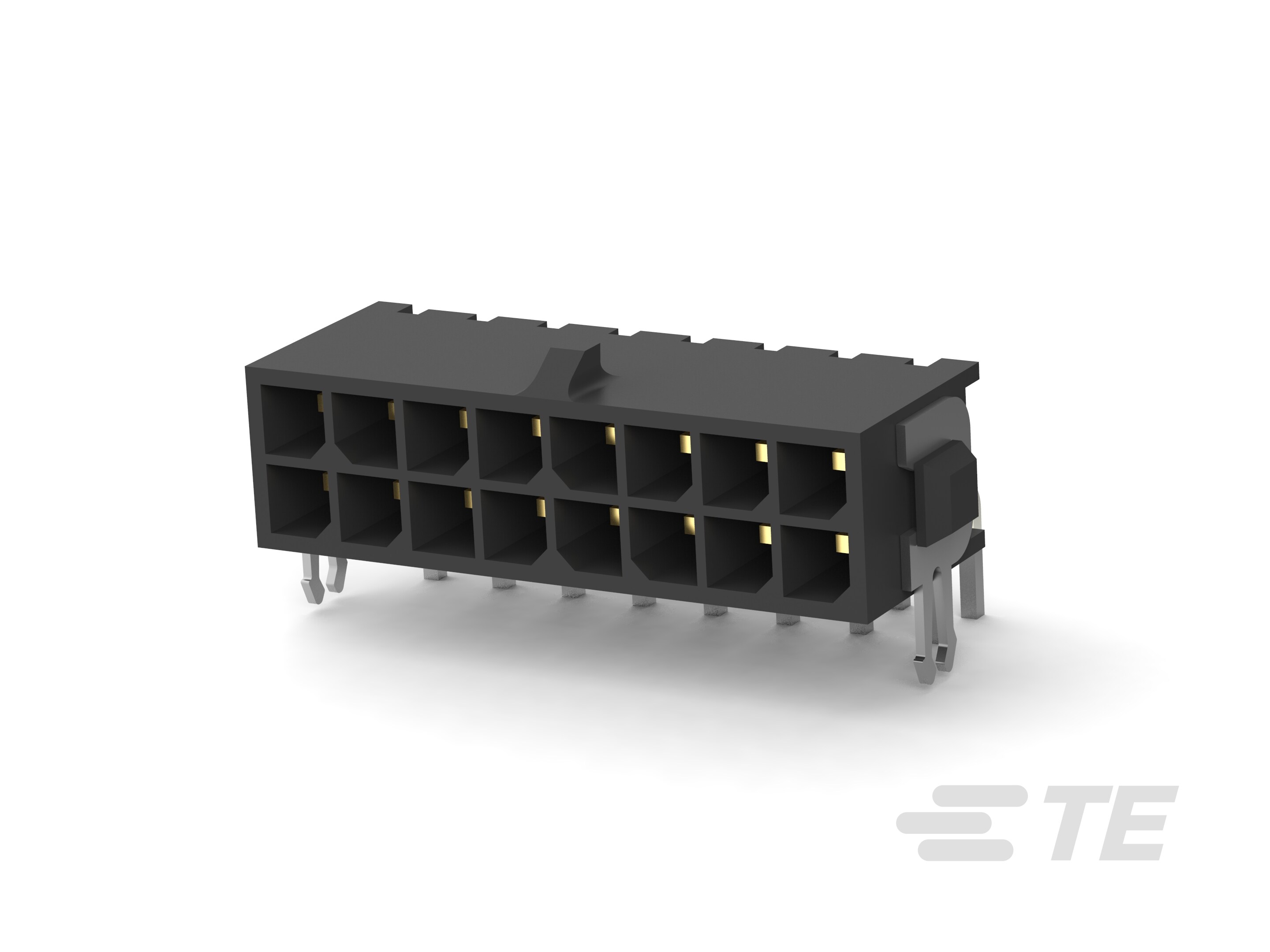

CONN HEADER R/A 16POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4-794678-6

Active

TE Connectivity Raychem Cable Protection

CONN HEADER R/A 16POS 3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4-794678-6

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height	7.37 mm
Insulation Height	0.29 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Row Spacing - Mating	3 mm
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Micro MATE-N-LOK Series

...

Part	Voltage Rating	Termination	Applications	Contact Shape	Insulation Color	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Type	Style	Number of Positions Loaded	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Material	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Number of Positions	Mounting Type	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Shrouding	Contact Finish - Post	Features	Number of Positions	Row Spacing [x]	Row Spacing [x]	Note	Pitch [x]	Pitch [x]	Color	Contact Termination
TE Connectivity Raychem Cable Protection 4-794682-0	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon Polyamide (PA)	Brass	3.18 mm	0.125 in	UL94 V-0	10	Through Hole	Locking Ramp	30 Áin	0.76 Ám	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin
TE Connectivity Raychem Cable Protection 3-794628-8	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	7.37 mm	0.29 in	-40 °C	105 ░C	Header	Nylon Polyamide (PA)	Brass			UL94 V-0	8	Surface Mount Right Angle	Locking Ramp	15 µin	0.38 µm	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin	Solder Retention
TE Connectivity Raychem Cable Protection 4-794629-6	250 VDC	Solder	General Purpose	Square	Black	Gold or Gold-Palladium	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	7.37 mm	0.29 in	-40 °C	105 ░C	Header	Nylon Polyamide (PA)	Brass			UL94 V-0		Surface Mount Right Angle	Locking Ramp	30 Áin	0.76 Ám	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin	Solder Retention	16
TE Connectivity Raychem Cable Protection 3-794623-2	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in			Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	7.37 mm	0.29 in	-40 °C	105 ░C	Header	Nylon Polyamide (PA)	Brass			UL94 V-0	2	Surface Mount Right Angle	Locking Ramp	30 Áin	0.76 Ám	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin
TE Connectivity Raychem Cable Protection 2-1445051-3	250 VDC	Solder	General Purpose	Square	Black				0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon Polyamide (PA)	Brass	3.18 mm	0.125 in	UL94 V-0		Through Hole	Locking Ramp	100 çin	2.54 çm	2.54 µm	100 µin	1	Shrouded - 4 Wall	Tin
TE Connectivity Raychem Cable Protection 3-1445085-2	250 VDC	Solder	General Purpose	Square	Black	Gold			0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon Polyamide (PA)	Brass	3.18 mm	0.125 in	UL94 V-0	12	Through Hole	Locking Ramp	15 µin	0.38 µm	2.54 µm	100 µin	1	Shrouded - 4 Wall	Tin
TE Connectivity Raychem Cable Protection 794637-4	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon Polyamide (PA)	Brass			UL94 V-0	4	Surface Mount	Locking Ramp	15 µin	0.38 µm	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin-Lead	Solder Retention
TE Connectivity Raychem Cable Protection 794616-6												Male Pin					-40 °C	105 ░C	Plug	Polyamide (PA66) Nylon 6/6					6	Free Hanging (In-Line)	Locking Ramp					2					0.118 in	3 mm	Contacts Not Included	3 mm	0.118 in	Black	Crimp
TE Connectivity Raychem Cable Protection 4-794678-6	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	7.37 mm	0.29 in	-40 °C	105 ░C	Header	Nylon Polyamide (PA)	Brass			UL94 V-0		Through Hole Right Angle	Locking Ramp	15 µin	0.38 µm	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin		16
TE Connectivity Raychem Cable Protection 4-794681-6	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon Polyamide (PA)	Brass	3.18 mm	0.125 in	UL94 V-0		Through Hole	Locking Ramp	15 µin	0.38 µm	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin		16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.17
		10	$ 3.71
		130	$ 3.30
		520	$ 3.03
		1040	$ 2.71

Description

General part information

Micro MATE-N-LOK Series

Connector Header Through Hole, Right Angle 16 position 0.118" (3.00mm)
