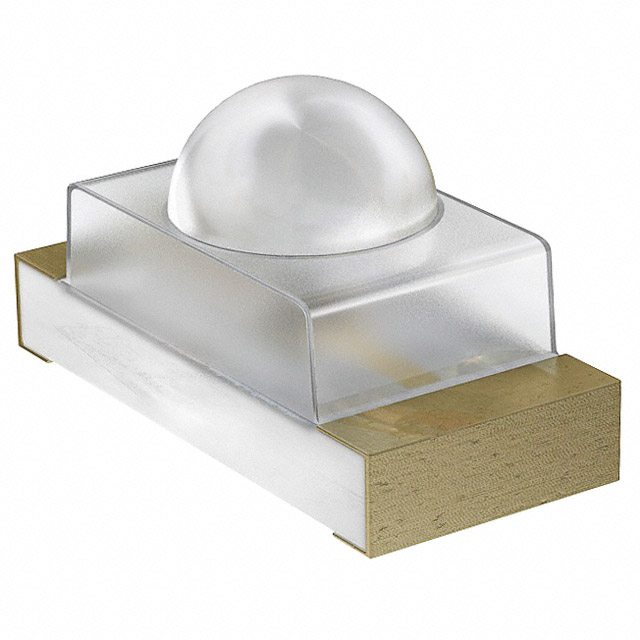

APHD1608LQBC/D

Active

Kingbright

2MA 25MCD COLORLESS TRANSPARENT LENS 465NM BLUE 100° 2.65V 1608 LED INDICATION - DISCRETE ROHS

Search across all available documentation for this part.

Active

Kingbright

2MA 25MCD COLORLESS TRANSPARENT LENS 465NM BLUE 100° 2.65V 1608 LED INDICATION - DISCRETE ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Lens Color	Lens Style	Color	Configuration	Viewing Angle	Lens Size [diameter]	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Package / Case	Mounting Type	Wavelength - Dominant	Supplier Device Package	Lens Transparency	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Wavelength - Peak	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Radiant Intensity (Ie) Min @ If [Min]	Orientation	Type	Radiant Intensity (Ie) Min @ If
Kingbright APHD1608LCGCK	Colorless	Round with Domed Top	Green	Standard	100 °	0.7 mm	1.6 mm	0.8 mm	2 mA	0603 (1608 Metric)	Surface Mount	570 nm	1608	Clear	1.9 V	5 mcd
Kingbright APHD1608LSYCK	Colorless	Round with Domed Top	Yellow	Standard	100 °	0.7 mm	1.6 mm	0.8 mm	2 mA	0603 (1608 Metric)	Surface Mount	590 nm	1608	Clear	1.85 V	20 mcd	590 nm
Kingbright APHD1608LQBC/D	Colorless	Round with Domed Top	Blue	Standard	100 °	0.7 mm	1.6 mm	0.8 mm	2 mA	0603 (1608 Metric)	Surface Mount	465 nm	1608	Clear	2.65 V	25 mcd	460 nm
Kingbright APHD1608F3C-P22					100 °					0603 (1608 Metric)	Surface Mount							50 mA	85 °C	-40 °C	940 nm	0.8 mW/sr	Top View	Infrared (IR)
Kingbright APHD1608SF4CPRV-P22					100 °					0603 (1608 Metric)	Surface Mount				1.3 V			50 mA	85 °C	-40 °C	880 nm		Top View	Infrared (IR)	0.35 mW/sr
Kingbright APHD1608LZGCK	Colorless	Round with Domed Top	Green	Standard	100 °	0.7 mm	1.6 mm	0.8 mm	2 mA	0603 (1608 Metric)	Surface Mount	525 nm	1608	Clear	2.65 V	180 mcd	515 nm
Kingbright APHD1608LVBC/D	Colorless	Round with Domed Top	Blue	Standard	100 °	0.7 mm	1.6 mm	0.8 mm	2 mA	0603 (1608 Metric)	Surface Mount	470 nm	1608	Clear	2.65 V	45 mcd	465 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue 465nm LED Indication - Discrete 2.65V 0603 (1608 Metric)
