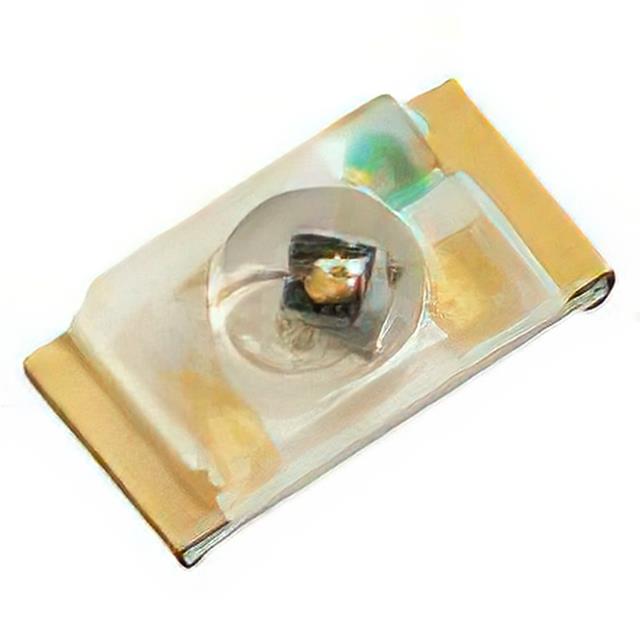

APHD1608SF4CPRV-P22
ActiveKingbright
1.6X0.8MM (0603) INFRARED SMD LE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APHD1608SF4CPRV-P22
ActiveKingbright
1.6X0.8MM (0603) INFRARED SMD LE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APHD1608SF4CPRV-P22 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 50 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 0603 (1608 Metric) |
| Radiant Intensity (Ie) Min @ If | 0.35 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 100 ° |
| Voltage - Forward (Vf) (Typ) | 1.3 V |
| Wavelength | 880 nm |
APHD1608 Series
| Part | Lens Color | Lens Style | Color | Configuration | Viewing Angle | Lens Size [diameter] | Size / Dimension [x] | Size / Dimension [y] | Current - Test | Package / Case | Mounting Type | Wavelength - Dominant | Supplier Device Package | Lens Transparency | Voltage - Forward (Vf) (Typ) | Millicandela Rating | Wavelength - Peak | Current - DC Forward (If) (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Wavelength | Radiant Intensity (Ie) Min @ If [Min] | Orientation | Type | Radiant Intensity (Ie) Min @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Kingbright | Colorless | Round with Domed Top | Green | Standard | 100 ° | 0.7 mm | 1.6 mm | 0.8 mm | 2 mA | 0603 (1608 Metric) | Surface Mount | 570 nm | 1608 | Clear | 1.9 V | 5 mcd | |||||||||
Kingbright | Colorless | Round with Domed Top | Yellow | Standard | 100 ° | 0.7 mm | 1.6 mm | 0.8 mm | 2 mA | 0603 (1608 Metric) | Surface Mount | 590 nm | 1608 | Clear | 1.85 V | 20 mcd | 590 nm | ||||||||
Kingbright | Colorless | Round with Domed Top | Blue | Standard | 100 ° | 0.7 mm | 1.6 mm | 0.8 mm | 2 mA | 0603 (1608 Metric) | Surface Mount | 465 nm | 1608 | Clear | 2.65 V | 25 mcd | 460 nm | ||||||||
Kingbright | 100 ° | 0603 (1608 Metric) | Surface Mount | 50 mA | 85 °C | -40 °C | 940 nm | 0.8 mW/sr | Top View | Infrared (IR) | |||||||||||||||
Kingbright | 100 ° | 0603 (1608 Metric) | Surface Mount | 1.3 V | 50 mA | 85 °C | -40 °C | 880 nm | Top View | Infrared (IR) | 0.35 mW/sr | ||||||||||||||
Kingbright | Colorless | Round with Domed Top | Green | Standard | 100 ° | 0.7 mm | 1.6 mm | 0.8 mm | 2 mA | 0603 (1608 Metric) | Surface Mount | 525 nm | 1608 | Clear | 2.65 V | 180 mcd | 515 nm | ||||||||
Kingbright | Colorless | Round with Domed Top | Blue | Standard | 100 ° | 0.7 mm | 1.6 mm | 0.8 mm | 2 mA | 0603 (1608 Metric) | Surface Mount | 470 nm | 1608 | Clear | 2.65 V | 45 mcd | 465 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.80 | |
| 10 | $ 0.55 | |||
| 100 | $ 0.40 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.32 | |||
| 2000 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 0.80 | ||
| 10 | $ 0.55 | |||
| 100 | $ 0.40 | |||
| 500 | $ 0.34 | |||
| 1000 | $ 0.32 | |||
| 2000 | $ 0.30 | |||
| Tape & Reel (TR) | 4000 | $ 0.28 | ||
| 8000 | $ 0.27 | |||
| 12000 | $ 0.26 | |||
| 20000 | $ 0.25 | |||
| 28000 | $ 0.25 | |||
| 40000 | $ 0.25 | |||
Description
General part information
APHD1608 Series
Infrared (IR) Emitter 880nm 1.3V 50mA 0.35mW/sr @ 20mA 100° 0603 (1608 Metric)
