DTM13-12PA-R019

Active

TE Connectivity Raychem Cable Protection

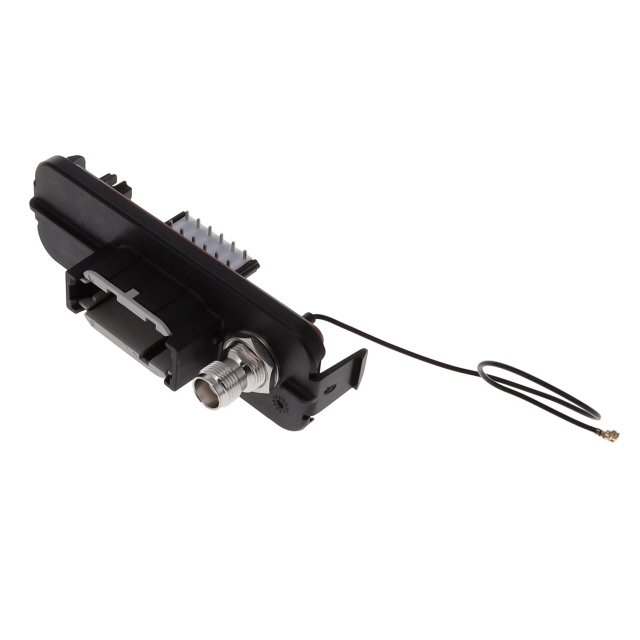

DTM13-12PA-R019, HDR,12P, BLK,RA

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

DTM13-12PA-R019, HDR,12P, BLK,RA

Technical Specifications

Parameters and characteristics for this part

Specification	DTM13-12PA-R019

Connector Type	Header
Contact Finish - Mating	Nickel
Contact Finish - Post	Tin
Contact Length - Post	2.85 mm
Contact Length - Post	0.112 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	7.5 A
Fastening Type	Latch Holder
Features	Mounting Flange
Insulation Color	Black
Insulation Height	35 mm
Insulation Height	1.378 in
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

Part	Contact Shape	Contact Finish - Post	Contact Finish - Mating	Number of Rows	Termination	Features	Number of Positions Loaded	Shrouding	Applications	Contact Type	Mounting Type	Number of Positions	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Connector Type	Insulation Material	Style	Fastening Type	Insulation Color	Ingress Protection	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating	Pitch - Mating	Pitch - Mating
TE Connectivity Raychem Cable Protection DTM13-12PA-12PB-R008	Circular	Tin	Nickel	2	Solder	Mounting Flange	All	Shrouded - 4 Wall	Automotive	Male Pin	Panel Mount Right Angle Through Hole	24	35 mm	1.378 in	2.84 mm	0.112 in	Header	Plastic	Board to Cable/Wire	Latch Holder	Gray	IP68 IP6K9K
TE Connectivity Raychem Cable Protection DTM13-12PA-R019	Circular	Tin	Nickel	2	Solder	Mounting Flange	All	Shrouded - 4 Wall		Male Pin	Panel Mount Right Angle Through Hole	12	35 mm	1.378 in	2.85 mm	0.112 in	Header	Glass Filled Nylon 4/6 Polyamide (PA46)	Board to Cable/Wire	Latch Holder	Black		Copper Alloy	-55 °C	125 °C	7.5 A	250 VAC	4.2 mm	0.165 in
