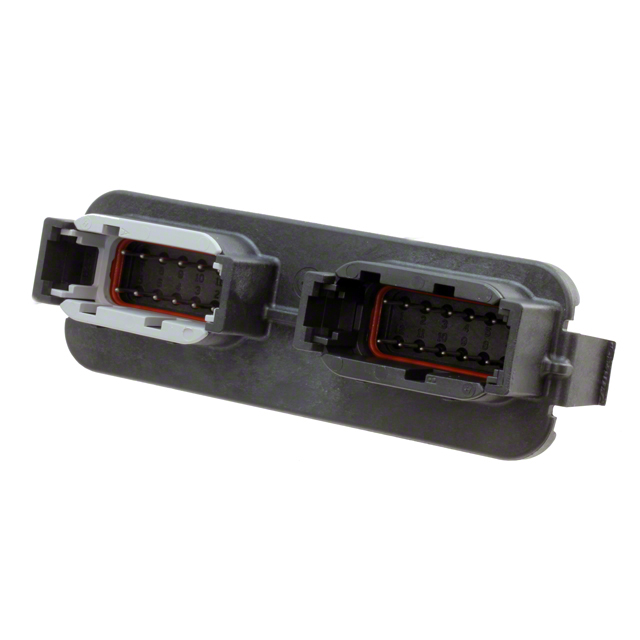

DTM13-12PA-12PB-R008

Active

TE Connectivity Raychem Cable Protection

CONN HEADER R/A 24POS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN HEADER R/A 24POS

Technical Specifications

Parameters and characteristics for this part

Specification	DTM13-12PA-12PB-R008

Applications	Automotive
Connector Type	Header
Contact Finish - Mating	Nickel
Contact Finish - Post	Tin
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Mounting Flange
Ingress Protection	IP6K9K, IP68
Insulation Color	Gray
Insulation Height	35 mm
Insulation Height	1.378 in
Insulation Material	Plastic
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Contact Shape	Contact Finish - Post	Contact Finish - Mating	Number of Rows	Termination	Features	Number of Positions Loaded	Shrouding	Applications	Contact Type	Mounting Type	Number of Positions	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Connector Type	Insulation Material	Style	Fastening Type	Insulation Color	Ingress Protection	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating	Pitch - Mating	Pitch - Mating
TE Connectivity Raychem Cable Protection DTM13-12PA-12PB-R008	Circular	Tin	Nickel	2	Solder	Mounting Flange	All	Shrouded - 4 Wall	Automotive	Male Pin	Panel Mount Right Angle Through Hole	24	35 mm	1.378 in	2.84 mm	0.112 in	Header	Plastic	Board to Cable/Wire	Latch Holder	Gray	IP68 IP6K9K
TE Connectivity Raychem Cable Protection DTM13-12PA-R019	Circular	Tin	Nickel	2	Solder	Mounting Flange	All	Shrouded - 4 Wall		Male Pin	Panel Mount Right Angle Through Hole	12	35 mm	1.378 in	2.85 mm	0.112 in	Header	Glass Filled Nylon 4/6 Polyamide (PA46)	Board to Cable/Wire	Latch Holder	Black		Copper Alloy	-55 °C	125 °C	7.5 A	250 VAC	4.2 mm	0.165 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Panel Mount, Through Hole, Right Angle 24 (12 + 12) position
