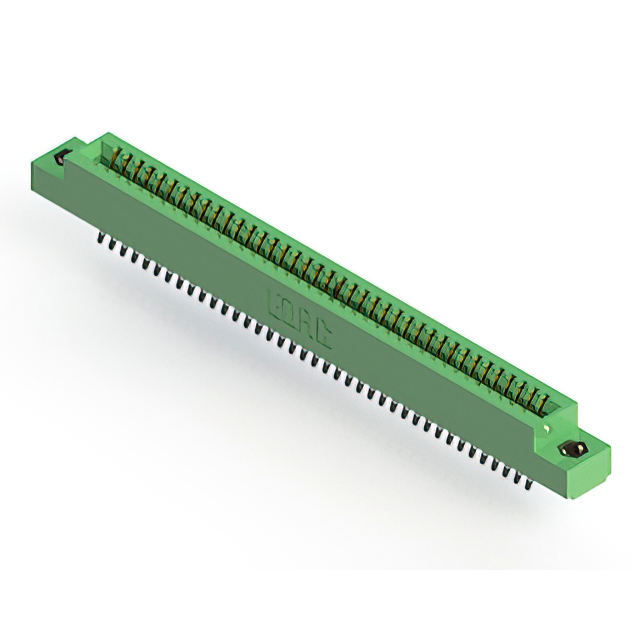

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 78 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

341-078-555-208

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 78 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-078-555-208

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Extender
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	78
Number of Positions/Bay/Row [custom]	39
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

341-078 Series

Part	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Color	Contact Material	Number of Positions/Bay/Row [custom]	Gender	Flange Feature	Pitch [x]	Pitch [x]	Contact Finish	Read Out	Material - Insulation	Termination Rows	Number of Rows	Card Type	Mounting Type	Contact Type	Features	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 341-078-555-208	78	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Green	Copper Alloy	39	Female	4-40 Flush Mount Threaded Insert Top Opening	2.54 mm	0.1 in	Gold	Dual	Polyester Thermoplastic	2	2	Non Specified - Dual Edge	Through Hole	Semi Bellows	Card Extender	10 Áin	0.25 Ám	-40 °C	105 ░C
EDAC Inc. 341-078-556-208	78	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Green	Copper Alloy	39	Female	4-40 Flush Mount Threaded Insert Top Opening	2.54 mm	0.1 in	Gold	Dual	Polyester Thermoplastic	2	2	Non Specified - Dual Edge	Through Hole	Semi Bellows	Card Extender	10 Áin	0.25 Ám	-40 °C	105 ░C
EDAC Inc. 341-078-556-201	78	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Green	Copper Alloy	39	Female		2.54 mm	0.1 in	Gold	Dual	Polyester Thermoplastic	2	2	Non Specified - Dual Edge	Board Edge Straddle Mount	Semi Bellows	Card Extender	10 Áin	0.25 Ám	-40 °C	105 ░C
EDAC Inc. 341-078-500-204	78	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Green	Copper Alloy	39	Female	Flush Mount Top Opening Unthreaded	2.54 mm	0.1 in	Gold	Dual	Diallyl Phthalate (DAP)	2	2	Non Specified - Dual Edge	Through Hole	Semi Bellows		10 Áin	0.25 Ám	-40 °C	105 ░C	3.96 mm	0.156 in
EDAC Inc. 341-078-500-208	78	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Green	Copper Alloy	39	Female	4-40 Flush Mount Threaded Insert Top Opening	2.54 mm	0.1 in	Gold	Dual	Diallyl Phthalate (DAP)	2	2	Non Specified - Dual Edge	Through Hole	Semi Bellows		10 Áin	0.25 Ám	-40 °C	105 ░C
EDAC Inc. 341-078-520-202	78	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Green	Copper Alloy	39	Female	Flush Mount Top Opening Unthreaded	2.54 mm	0.1 in	Gold	Dual	Polyester Thermoplastic	2	2	Non Specified - Dual Edge	Through Hole	Semi Bellows		10 Áin	0.25 Ám	-40 °C	105 ░C	3.25 mm	0.128 "
EDAC Inc. 341-078-524-203	78	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Green	Copper Alloy	39	Female	Floating Bobbin Flush Mount	2.54 mm	0.1 in	Gold	Dual	Polyester Thermoplastic	2	2	Non Specified - Dual Edge	Through Hole	Semi Bellows		10 Áin	0.25 Ám	-40 °C	105 ░C	2.95 mm	0.116 in
EDAC Inc. 341-078-500-203	78	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder Eyelet(s)	Green	Copper Alloy	39	Female	Floating Bobbin Flush Mount	2.54 mm	0.1 in	Gold	Dual	Diallyl Phthalate (DAP)	2	2	Non Specified - Dual Edge	Through Hole	Semi Bellows		10 Áin	0.25 Ám	-40 °C	105 ░C	2.95 mm	0.116 in
EDAC Inc. 341-078-521-208	78	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Green	Copper Alloy	39	Female	4-40 Flush Mount Threaded Insert Top Opening	2.54 mm	0.1 in	Gold	Dual	Polyester Thermoplastic	2	2	Non Specified - Dual Edge	Through Hole	Semi Bellows		10 Áin	0.25 Ám	-40 °C	105 ░C
EDAC Inc. 341-078-560-203	78	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	Green	Copper Alloy	39	Female	Floating Bobbin Flush Mount	2.54 mm	0.1 in	Gold	Dual	Polyester Thermoplastic	2	2	Non Specified - Dual Edge	Board Edge Straddle Mount	Semi Bellows	Card Extender	10 Áin	0.25 Ám	-40 °C	105 ░C	2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 20.10
Newark	Each	1	$ 22.45
		100	$ 14.34
		250	$ 12.72
		500	$ 10.44
		1000	$ 8.87

Description

General part information

341-078 Series

78 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
