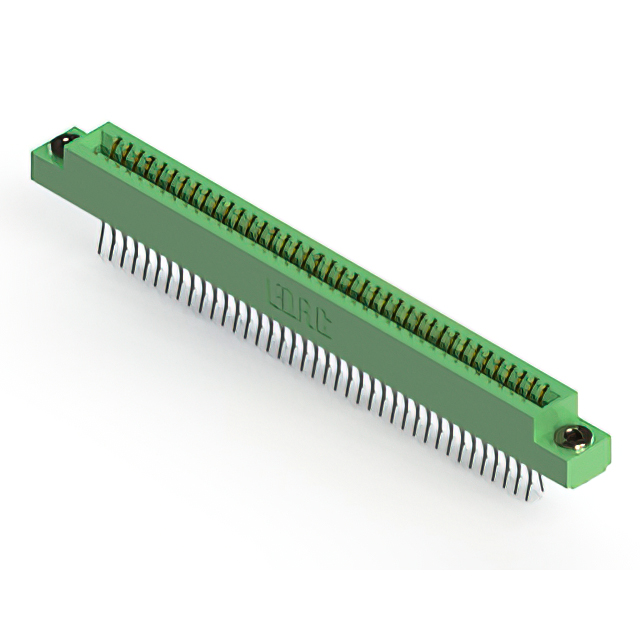

341-078-560-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 78POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
341-078-560-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 78POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-078-560-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 78 |
| Number of Positions/Bay/Row [custom] | 39 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
341-078 Series
| Part | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Color | Contact Material | Number of Positions/Bay/Row [custom] | Gender | Flange Feature | Pitch [x] | Pitch [x] | Contact Finish | Read Out | Material - Insulation | Termination Rows | Number of Rows | Card Type | Mounting Type | Contact Type | Features | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 78 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Green | Copper Alloy | 39 | Female | 4-40 Flush Mount Threaded Insert Top Opening | 2.54 mm | 0.1 in | Gold | Dual | Polyester Thermoplastic | 2 | 2 | Non Specified - Dual Edge | Through Hole | Semi Bellows | Card Extender | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | ||
EDAC Inc. | 78 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Green | Copper Alloy | 39 | Female | 4-40 Flush Mount Threaded Insert Top Opening | 2.54 mm | 0.1 in | Gold | Dual | Polyester Thermoplastic | 2 | 2 | Non Specified - Dual Edge | Through Hole | Semi Bellows | Card Extender | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | ||
EDAC Inc. | 78 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Green | Copper Alloy | 39 | Female | 2.54 mm | 0.1 in | Gold | Dual | Polyester Thermoplastic | 2 | 2 | Non Specified - Dual Edge | Board Edge Straddle Mount | Semi Bellows | Card Extender | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | |||
EDAC Inc. | 78 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Green | Copper Alloy | 39 | Female | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in | Gold | Dual | Diallyl Phthalate (DAP) | 2 | 2 | Non Specified - Dual Edge | Through Hole | Semi Bellows | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 3.96 mm | 0.156 in | |
EDAC Inc. | 78 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Green | Copper Alloy | 39 | Female | 4-40 Flush Mount Threaded Insert Top Opening | 2.54 mm | 0.1 in | Gold | Dual | Diallyl Phthalate (DAP) | 2 | 2 | Non Specified - Dual Edge | Through Hole | Semi Bellows | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | |||
EDAC Inc. | 78 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Green | Copper Alloy | 39 | Female | Flush Mount Top Opening Unthreaded | 2.54 mm | 0.1 in | Gold | Dual | Polyester Thermoplastic | 2 | 2 | Non Specified - Dual Edge | Through Hole | Semi Bellows | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 3.25 mm | 0.128 " | |
EDAC Inc. | 78 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Green | Copper Alloy | 39 | Female | Floating Bobbin Flush Mount | 2.54 mm | 0.1 in | Gold | Dual | Polyester Thermoplastic | 2 | 2 | Non Specified - Dual Edge | Through Hole | Semi Bellows | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 2.95 mm | 0.116 in | |
EDAC Inc. | 78 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Green | Copper Alloy | 39 | Female | Floating Bobbin Flush Mount | 2.54 mm | 0.1 in | Gold | Dual | Diallyl Phthalate (DAP) | 2 | 2 | Non Specified - Dual Edge | Through Hole | Semi Bellows | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 2.95 mm | 0.116 in | |
EDAC Inc. | 78 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Green | Copper Alloy | 39 | Female | 4-40 Flush Mount Threaded Insert Top Opening | 2.54 mm | 0.1 in | Gold | Dual | Polyester Thermoplastic | 2 | 2 | Non Specified - Dual Edge | Through Hole | Semi Bellows | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | |||
EDAC Inc. | 78 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Green | Copper Alloy | 39 | Female | Floating Bobbin Flush Mount | 2.54 mm | 0.1 in | Gold | Dual | Polyester Thermoplastic | 2 | 2 | Non Specified - Dual Edge | Board Edge Straddle Mount | Semi Bellows | Card Extender | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 20.10 | |
Description
General part information
341-078 Series
78 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
