CP41A-RHS-CL0N0JJ4

Active

Cree LED

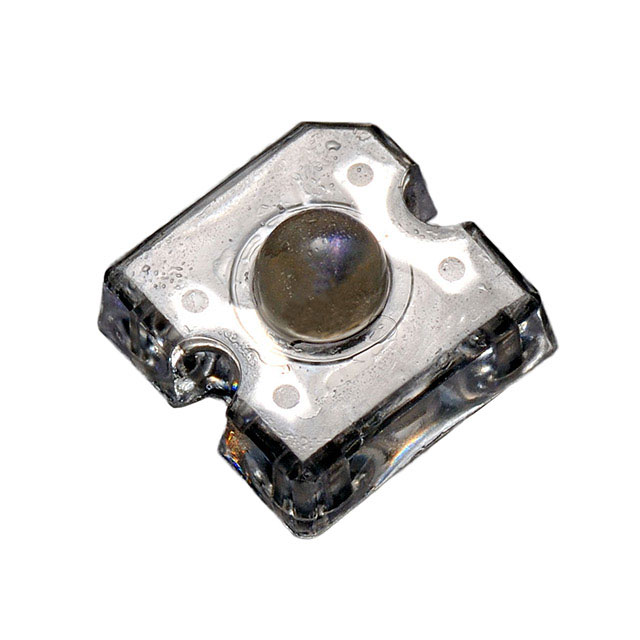

LED RED CLEAR P4 T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CP41A-RHS-CL0N0JJ4

Active

Cree LED

LED RED CLEAR P4 T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CP41A-RHS-CL0N0JJ4

Color	Red
Configuration	Standard
Current - Test	70 mA
Height (Max) [Max] [z]	6 mm
Lens Size [diameter]	3 mm
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating	6565 mcd
Mounting Type	Through Hole
Package / Case	4-EDIP
Package / Case [custom]	5.08 mm
Size / Dimension [x]	7.6 mm
Size / Dimension [y]	7.6 mm
Supplier Device Package	P4
Viewing Angle	100 °
Voltage - Forward (Vf) (Typ)	2.3 V
Wavelength - Dominant	625 nm

CP41A Series

Part	Package / Case	Package / Case [custom]	Lens Transparency	Wavelength - Dominant	Lens Style	Supplier Device Package	Color	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Configuration	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Lens Size [diameter]	Viewing Angle	Viewing Angle [custom]	Wavelength [Min]	Wavelength [Max]	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Luminous Flux @ Current/Temperature	Package / Case	Package / Case	Millicandela Rating
Cree LED CP41A-RFS-CM0P0JJ4	4-EDIP	5.08 mm	Clear	624 nm	Round with Domed Top	P4	Red	2.3 V	6.4 mm	Standard	Through Hole	7.6 mm	7.6 mm	70 mA	3 mm	70 °
Cree LED CP41A-AHS-CM0P0454	4-EDIP	5.08 mm	Clear	591 nm	Round with Domed Top	P4	Amber	2.5 V	6 mm	Standard	Through Hole	7.6 mm	7.6 mm	70 mA	3 mm	100 °
Cree LED CP41A-RDS-CM0P0JJ4	4-EDIP	5.08 mm	Clear	624 nm	Round with Domed Top	P4	Red	2.3 V	6.8 mm	Standard	Through Hole	7.6 mm	7.6 mm	70 mA	3 mm		40 °
Cree LED CP41A-PDS-CM0N0JJ4	4-DIP					4-DIP		2.3 V			Through Hole	0.299 in	0.299 in	70 mA			40 °	612 nm	618 nm	7.6 mm	7.6 mm	70 mA	50 lm/W	7.05 mm	0.278 "	8 lm	0.2 in	0.2 in
Cree LED CP41A-PFS-CL0P0JJ4	4-DIP					4-DIP		2.3 V			Through Hole	0.299 in	0.299 in	70 mA		70 °		612 nm	618 nm	7.6 mm	7.6 mm	70 mA	50 lm/W	6.65 mm	0.262 in	8 lm	0.2 in	0.2 in
Cree LED CP41A-RHS-CL0N0JJ4	4-EDIP	5.08 mm	Clear	625 nm	Round with Domed Top	P4	Red	2.3 V	6 mm	Standard	Through Hole	7.6 mm	7.6 mm	70 mA	3 mm	100 °													6565 mcd
Cree LED CP41A-AHS-CL0P0354	4-EDIP	5.08 mm	Clear	591 nm	Round with Domed Top	P4	Amber	2.5 V	6 mm	Standard	Through Hole	7.6 mm	7.6 mm	70 mA	3 mm	100 °													7700 mcd
Cree LED CP41A-AFS-CM0P0354	4-EDIP	5.08 mm	Clear	591 nm	Round with Domed Top	P4	Amber	2.5 V	6.45 mm	Standard	Through Hole	7.6 mm	7.6 mm	70 mA	3 mm	70 °
Cree LED CP41A-ADS-CL0P0454	4-EDIP	5.08 mm	Clear	591 nm	Round with Domed Top	P4	Amber	2.5 V	6.8 mm	Standard	Through Hole	7.6 mm	7.6 mm	70 mA	3 mm		40 °												7700 mcd
Cree LED CP41A-RHS-CN0P0JJ4	4-EDIP	5.08 mm	Clear	624 nm	Round with Domed Top	P4	Red	2.3 V	6 mm	Standard	Through Hole	7.6 mm	7.6 mm	70 mA	3 mm	100 °													8800 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	60	$ 0.17

Description

General part information

CP41A Series

Red 625nm LED Indication - Discrete 2.3V 4-EDIP (0.200", 5.08mm)
