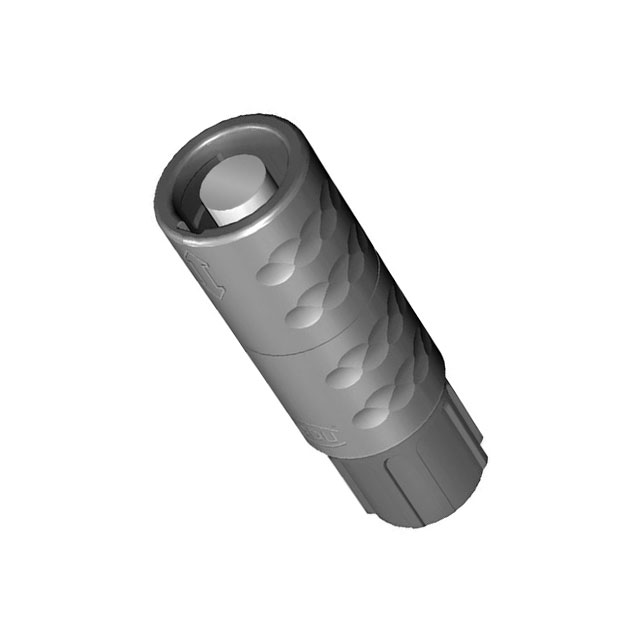

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ODU MEDI-SNAP Assembly Instruction GB +1

K11M07-P03LPH9-5270

Active

ODU

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet ODU MEDI-SNAP Assembly Instruction GB +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K11M07-P03LPH9-5270

Applications	Testing Equipment, Medical, Industrial, Measurement
Backshell Material, Plating	Polysulfone (PSU)
Cable Opening [Max] [custom]	0.205 in
Cable Opening [Max] [custom]	5.2 mm
Cable Opening [Min] [custom]	0.157 in
Cable Opening [Min] [custom]	4 mm
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	14 A
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-50 °C
Orientation	0
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shielding	Unshielded

K11M07-P Series

...

Part	Ingress Protection	Shell Size - Insert	Primary Material	Mounting Type	Fastening Type	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Number of Positions	Backshell Material, Plating	Insert Material	Connector Type	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shell Material	Color	Features	Applications	Contact Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
ODU K11M07-P07LFD0-6570	IP50	1	Plastic	Free Hanging (In-Line)	Detent Lock Push-Pull	Gold	0.209 in 0.256 in	5.3 mm 6.5 mm	7	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Unshielded	-50 °C	120 °C	4.55 A	Polysulfone (PSU)	Gray	Backshell	Industrial Medical Military Testing Equipment & Measurement	Brass
ODU K11M07-P08LFD0-5260	IP50	1	Plastic	Free Hanging (In-Line)	Detent Lock Push-Pull	Gold			8	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Unshielded	-50 °C	120 °C	3.85 A	Polysulfone (PSU)	Blue Gray	Backshell	Industrial Medical Military Testing Equipment & Measurement	Brass	0.157 in	0.205 in	4 mm	5.2 mm
ODU K11M07-P07LFD0-6540	IP50	1	Plastic	Free Hanging (In-Line)	Detent Lock Push-Pull	Gold	0.209 in 0.256 in	5.3 mm 6.5 mm	7	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Unshielded	-50 °C	120 °C	4.55 A	Polysulfone (PSU)	Gray Yellow	Backshell	Industrial Medical Military Testing Equipment & Measurement	Brass
ODU K11M07-P14LCC0-6550	IP50	1	Plastic	Free Hanging (In-Line)	Detent Lock Push-Pull	Gold	0.209 in 0.256 in	5.3 mm 6.5 mm	14	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Unshielded	-50 °C	120 °C	2.5 A	Polysulfone (PSU)	Gray Green	Backshell	Industrial Medical Military Testing Equipment & Measurement	Brass
ODU K11M07-P03LPH9-5270	IP50	1	Plastic	Free Hanging (In-Line)	Detent Lock Push-Pull	Gold				Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Unshielded	-50 °C	120 °C	14 A	Polysulfone (PSU)	Gray	Backshell	Industrial Measurement Medical Testing Equipment	Brass	0.157 in	0.205 in	4 mm	5.2 mm
ODU K11M07-P10LCC0-3940	IP50	1	Plastic	Free Hanging (In-Line)	Detent Lock Push-Pull	Gold			10	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Unshielded	-50 °C	120 °C	2.75 A	Polysulfone (PSU)	Gray Yellow	Backshell	Industrial Medical Military Testing Equipment & Measurement	Brass					2.7 mm	0.154 in	3.9 mm	0.106 in
ODU K11M07-P06LFG0-6580	IP50	1	Plastic	Free Hanging (In-Line)	Detent Lock Push-Pull	Gold	0.209 in 0.256 in	5.3 mm 6.5 mm	6	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Unshielded	-50 °C	120 °C	4.55 A	Polysulfone (PSU)		Backshell	Industrial Medical Military Testing Equipment & Measurement	Brass
ODU K11M07-P04LJG0-3930	IP50	1	Plastic	Free Hanging (In-Line)	Detent Lock Push-Pull	Gold			4	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Unshielded	-50 °C	120 °C	10 A	Polysulfone (PSU)	Gray White	Backshell	Industrial Medical Military Testing Equipment & Measurement	Brass					2.7 mm	0.154 in	3.9 mm	0.106 in
ODU K11M07-P09LCC0-3950	IP50	1	Plastic	Free Hanging (In-Line)	Detent Lock Push-Pull	Gold			9	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Unshielded	-50 °C	120 °C	2.75 A	Polysulfone (PSU)	Gray Green	Backshell	Industrial Medical Military Testing Equipment & Measurement	Brass					2.7 mm	0.154 in	3.9 mm	0.106 in
ODU K11M07-P14LCC0-5280	IP50	1	Plastic	Free Hanging (In-Line)	Detent Lock Push-Pull	Gold			14	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Unshielded	-50 °C	120 °C	2.5 A	Polysulfone (PSU)		Backshell	Industrial Medical Military Testing Equipment & Measurement	Brass	0.157 in	0.205 in	4 mm	5.2 mm
