EV-LN60G

Active

Fanstel Corp.

EVAL BOARD FOR LN60G

Search across all available documentation for this part.

Active

Fanstel Corp.

EVAL BOARD FOR LN60G

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EV-LN60G	LN60 Series

Antenna Type	-	Antenna Not Included, U.FL, Integrated, Trace + U.FL
Data Rate	-	125 kbps
For Use With/Related Products	nRF9160, LN60G	nRF9160, LN60G
Memory Size	-	1 - 256 MB
Mounting Type	-	Card Edge
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	Module
Power - Output	-	23 dBmW
Protocol	-	Thread, Zigbee®, Bluetooth v5.2, LTE-M/NB-IoT, Bluetooth v5.1
RF Family/Standard	-	Cellular, 802.15.4, Bluetooth
Sensitivity	-	-108 dBm
Serial Interfaces	-	GPIO, UART, USB
Supplied Contents	Board(s)	Board(s)
Type	Cellular Development Platform	Cellular Development Platform
Utilized IC / Part	-	BT840E, NRF9160, BT840F
Voltage - Supply	-	2.5 V
Voltage - Supply	-	5.5 V

RF TXRX MOD BT CELL U.FL CARD

Part	Antenna Type	Operating Temperature [Max]	Operating Temperature [Min]	Power - Output	Protocol	Voltage - Supply [Min]	Voltage - Supply [Max]	Serial Interfaces	Data Rate	RF Family/Standard	Package / Case	Memory Size	Sensitivity	Mounting Type	Utilized IC / Part	For Use With/Related Products	Supplied Contents	Type
Fanstel Corp. LN60E840E	Antenna Not Included, U.FL	85 °C	-40 °C	23 dBmW	Bluetooth v5.1, Bluetooth v5.2, LTE-M/NB-IoT, Thread, Zigbee®	2.5 V	5.5 V	GPIO, UART, USB	125 kbps	802.15.4, Bluetooth, Cellular	Module	1 MB, 256 kB	-108 dBm	Card Edge	BT840E, NRF9160
Fanstel Corp. EV-LN60G																LN60G, nRF9160	Board(s)	Cellular Development Platform
Fanstel Corp. LN60E	Antenna Not Included, U.FL	85 °C	-40 °C	23 dBmW	LTE-M/NB-IoT	2.5 V	5.5 V	GPIO, UART, USB	125 kbps	Cellular	Module	1 MB, 256 kB	-108 dBm	Card Edge	NRF9160
Fanstel Corp. LN60G840F	Integrated, Trace + U.FL	85 °C	-40 °C	23 dBmW	Bluetooth v5.1, Bluetooth v5.2, LTE-M/NB-IoT, Thread, Zigbee®	2.5 V	5.5 V	GPIO, UART, USB	125 kbps	802.15.4, Bluetooth, Cellular	Module	1 MB, 256 kB	-108 dBm	Card Edge	BT840F, NRF9160

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 41.25

General part information

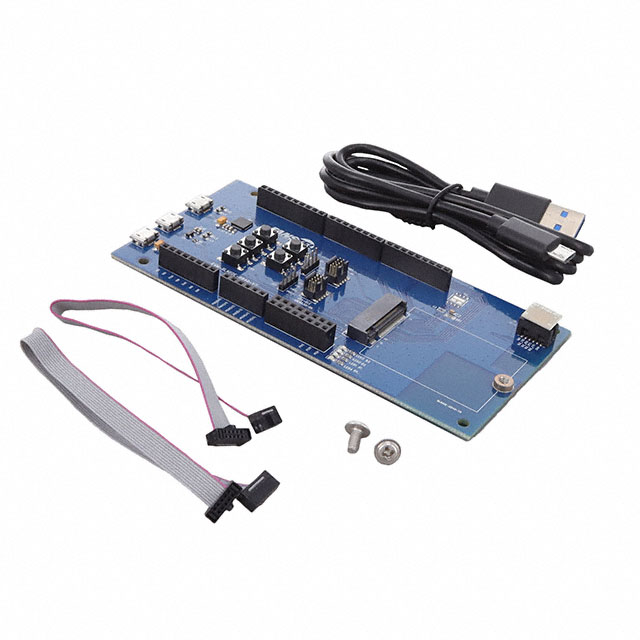

- LN60G, nRF9160 Cellular Development Platform Evaluation Board
